Vertical balers

Product family
HSM V-Press 825

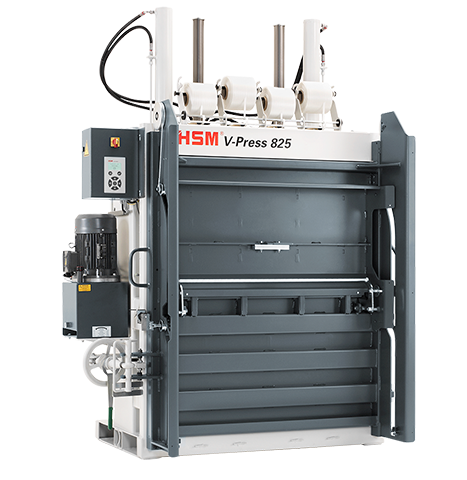

  • HSM V-Press 825 plus pro P1

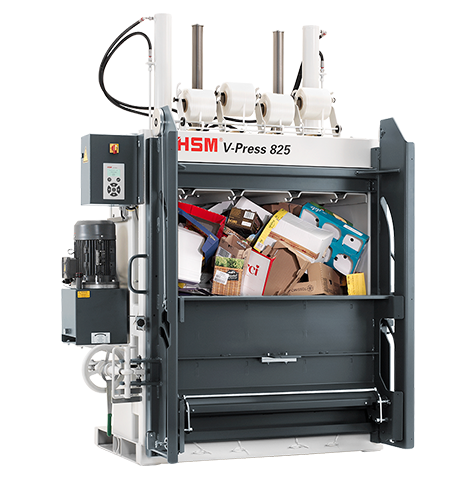

  • HSM V-Press 825 plus pro P2

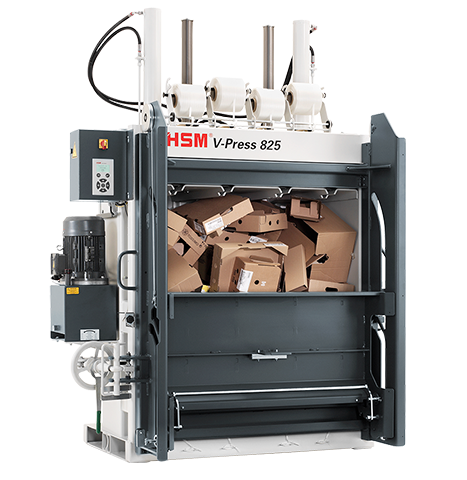

  • HSM V-Press 825 plus pro P3
  • YouTube Video Thumbnail
  • HSM V-Press 825 plus pro P1
  • HSM V-Press 825 plus pro P2
  • HSM V-Press 825 plus pro P3
  • HSM V-Press 825 plus pro P1
    play
Vertical balers

Product family
HSM V-Press 825

Weight
250 kN
Weight
280 kg
Door configuration
blocks.contact_search.dropdown_alt

Scroll to the desired section:

Technical data References Consumable materials
Please select
blocks.contact_search.dropdown_alt

Product highlights

The HSM V-Press 825 is characterized by its very low transport height.

  • Geringe Fläche/Höhe
    Low installation height and small footprint
  • Schiebetüre
    To fill the press, the upper half of the doors is pushed down and automatically opens after the compression process
  • V-Press - Automatikstart
    Automatic start of the pressing process after closing the door
  • Display
    Convenient membrane keypad with text display, which shows the current status of the machine
  • V-Press - Handrad
    Hand wheel door lock - Easy to handle thanks to counter-rotating thread for quick opening and closing
  • Optimiertes Verpressen
    Massive press ram and extremely robust press plate guidance
  • V-Press - TCS
    HSM TCS (Torsion Control System) for monitoring press ram movement
  • V-Press - Umreifung Polyesterband
    Manual bale strapping with continuous polyester tape
  • V-Press - Verpresst Kartonage/Folie
    Suitable for cardboard as well as film

Products in comparison

Product attributes
HSM V-Press 825 plus P1
HSM V-Press 825 plus
HSM V-Press 825 plus pro P1
HSM V-Press 825 plus pro
HSM V-Press 830 P1
HSM V-Press 830 plus
Order number: 6052414 6052214 6056214
Pressing power: 250 kN 250 kN 300 kN
Maximum bale weight: 280 kg 280 kg 320 kg
Width x Depth x Height: 1705 x 1050 x 2385 mm 1700 x 1248 x 2370 mm 1717 x 1247 x 2570 mm
Loading aperture (WxH): 1195 x 530 mm 1195 x 540 mm 1195 x 530 mm
Roland Kalisch vor einer HSM V-Press

Paper press ensures space saving

With the two HSM baling presses, we have massively reduced our waste volume. The compacted bales take up significantly less space than loose waste. As a result, our skip containers need to be exchanged less frequently. In addition, paper waste can be collected separately as a single-grade material and returned to the recycling process in better quality. This not only saves real money but also supports our corporate philosophy, in which sustainability plays a major role.


Roland Kalisch
Production Manager


Learn more

Consumable materials

  • Verbrauchsmaterial_Umreifungsband.png
    Consumable Materials
    Strapping tape WG 40 - 12 Gigant/Dixi 15S/Dixi 16S/Dixi 18S/Dixi 6SL/V-Press 503/V-Press 504/V-Press 605/V-Press 610/V-Press 818/V-Press 820/V-Press 825/V-Press 830
