HSM
Compressing
Products
Vertical balers

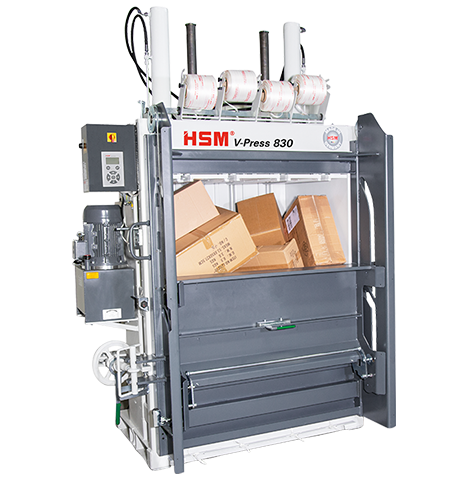

HSM V-Press 830 plus

Vertical balers

HSM V-Press 830 plus

Vertical balers

HSM V-Press 830 plus

300 kN

320 kg

1717 x 1247 x 2570 mm

1195 x 530 mm

Datasheet

Request product

Scroll to the desired section:

Technical data

Consumable materials

Product highlights

With a pressing power of 300 kN and a low overall height, the HSM V-Press 830 saves space for expensive storage areas and facilitates the transport and handling of recyclable materials.

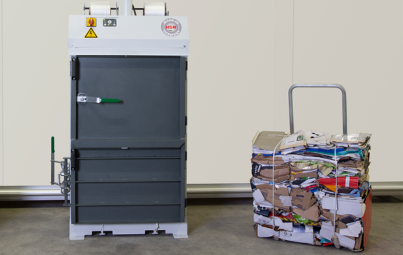

Low installation height and small footprint
To fill the press, the upper half of the doors is pushed down and automatically opens after the compression process
Automatic start of the pressing process after closing the door
Convenient membrane keypad with text display, which shows the current status of the machine
Hand wheel door lock - Easy to handle thanks to counter-rotating thread for quick opening and closing
Massive press ram and extremely robust press plate guidance
HSM TCS (Torsion Control System) for monitoring press ram movement
Strapping with wire - optional tape station available for strapping with polyester tape or wire according to requirements
Suitable for cardboard as well as film

Products in comparison

Product attributes	HSM V-Press 825 plus	HSM V-Press 830 plus	HSM V-Press 860 plus
Order number:	6052414	6056214	6148284
Pressing power:	250 kN	300 kN	594 kN
Maximum bale weight:	280 kg	320 kg	480 kg
Width x Depth x Height:	1705 x 1050 x 2385 mm	1717 x 1247 x 2570 mm	1797 x 1247 x 2985 mm
Loading aperture (WxH):	1195 x 530 mm	1195 x 530 mm	1195 x 650 mm

Consumable materials

Consumable Materials

Pre-looped wire 2,80x3700 - V-Press 840/V-Press 860/V-Press 860 S/P/VL 225/VL 500
