Vertical balers

HSM V-Press 820 plus

  • HSM V-Press 820 plus P1
  • HSM V-Press 820 plus P2
  • HSM V-Press 820 plus P3
  • YouTube Video Thumbnail
  • HSM V-Press 820 plus P1
  • HSM V-Press 820 plus P2
  • HSM V-Press 820 plus P3
  • HSM V-Press 820 plus P1
    play
Vertical balers

HSM V-Press 820 plus

Weight
178 kN
Weight
max: 250 kg
Weight
B: 1000 mm H: 780 mm L: 1200 mm
Weight
B: 1700 mm T: 1075 mm H: 2499 mm
Datasheet
Request product

Scroll to the desired section:

Technical data Consumable materials
Please select
blocks.contact_search.dropdown_alt

Product highlights

Thanks to its powerful motor, its ergonomic design and its sophisticated and innovative technology, the HSM V-Press 820 combines all of the advantages of a baling press into one machine.

  • The powerful system is designed as Plug&Press and can be put into operation immediately at the installation site

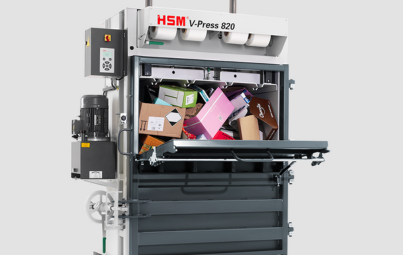

  • Füllklappe
    To fill the press, the upper half of the doors is folded down
  • V-Press - Automatikstart
    Automatic start of the pressing process after closing the door
  • Display
    Convenient membrane keypad with text display, which shows the current status of the machine

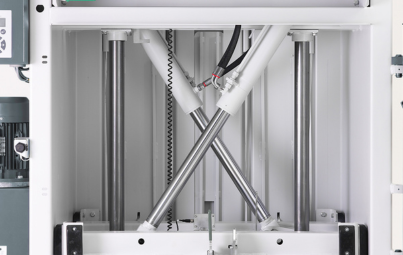

  • Gekreuzte Zylinder
    Quick and easy installation due to crossed cylinders
  • V-Press - Handrad
    Hand wheel door lock - Easy to handle thanks to counter-rotating thread for quick opening and closing
  • Optimiertes Verpressen
    Massive press ram and extremely robust press plate guidance
  • V-Press - TCS
    HSM TCS (Torsion Control System) for monitoring press ram movement
  • V-Press - Umreifung Polyesterband
    Manual bale strapping with continuous polyester tape
  • V-Press - Verpresst Kartonage/Folie
    Suitable for cardboard as well as film

Products in comparison

Product attributes
HSM V-Press 818 plus pro P1
HSM V-Press 818 plus pro
HSM V-Press 820 plus P1
HSM V-Press 820 plus
HSM V-Press 825 plus P1
HSM V-Press 825 plus
Order number: 6050214 6043414 6052414
Pressing power: 185 kN 178 kN 250 kN
Maximum bale weight: 200 kg 250 kg 280 kg
Bale size (WxHxL): 700 x 780 x 1200 mm 1000 x 780 x 1200 mm 700 x 780 x 1200 mm
Loading aperture (WxH): 1195 x 540 mm 1195 x 558 mm 1195 x 530 mm
Number of strappings: 4 4 4
Type of consumables: strapping tape strapping tape strapping tape
Motor: 4 kW 4 kW -
Voltage / Frequency: 400 V / 50 Hz 400 V / 50 Hz 400 V / 50 Hz
Cycle time: 27 s 23 s 39 s
Dimensions of machine (WxDxH): 1709 x 1248 x 2370 mm 1700 x 1075 x 2499 mm 1705 x 1050 x 2385 mm
Machine weight: 1210 kg 1300 kg 1117 kg

Consumable materials

  • Verbrauchsmaterial_Umreifungsband.png
    Consumable Materials
    Strapping tape WG 40 - 12 Gigant/Dixi 15S/Dixi 16S/Dixi 18S/Dixi 6SL/V-Press 503/V-Press 504/V-Press 605/V-Press 610/V-Press 718 plus C/V-Press 818/V-Press 820/V-Press 825/V-Press 830
