Vertical balers

HSM V-Press 860 plus B

  • HSM V-Press 860 plus B P1
  • HSM V-Press 860 plus B
  • HSM V-Press 860 plus B
  • HSM V-Press 860 plus B M3
  • YouTube Video Thumbnail
  • HSM V-Press 860 plus B P1
  • HSM V-Press 860 plus B
  • HSM V-Press 860 plus B
  • HSM V-Press 860 plus B M3
  • HSM V-Press 860 plus B P1
    play
Vertical balers

HSM V-Press 860 plus B

Icon Folie
Icon Kartonage
Weight
594 kN
Weight
550 kg
Weight
2099 x 1245 x 2985 mm
Weight
1500 x 651 mm
Datasheet
Request product

Scroll to the desired section:

Technical data References Consumable materials
Please select
blocks.contact_search.dropdown_alt

Product highlights

With a pressing power of 594 kN and low-noise and energysaving technology, the HSM V-Press 860 plus B is the most economical and ecological solution for your waste disposal.

  • V-Press - Eilgang
    The HSM V-Presses are highly energy efficient thanks to the rapid stroke technology. This saves time and money

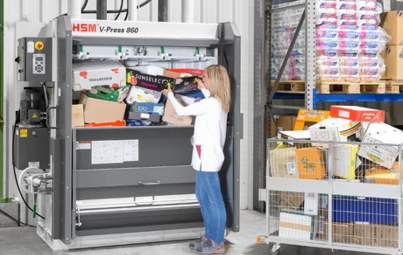

  • B - Schiebetüre
    To fill the press, the upper half of the doors is pushed down and automatically opens after the compression process
  • V-Press - Handrad
    Hand wheel door lock - Easy to handle thanks to counter-rotating thread for quick opening and closing
  • V-Press - TCS
    HSM TCS (Torsion Control System) for monitoring press ram movement
  • V-Press - Automatikstart
    Automatic start of the pressing process after closing the door
  • Display
    Convenient membrane keypad with text display, which shows the current status of the machine
  • V-Press - Verpresst Kartonage/Folie
    Suitable for cardboard as well as film

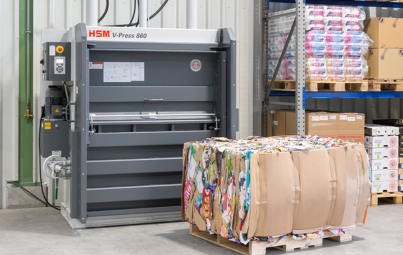

  • B Ballen
    Produces particularly large, high density bales which can be sold with no further compression required

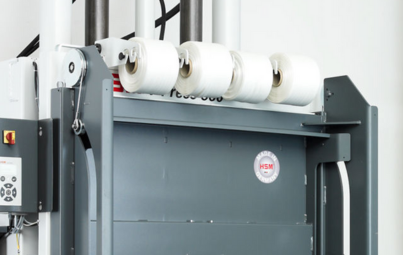

  • Umreifung Draht oder Band
    Strapping with wire - optional tape station available for strapping with polyester tape or wire according to requirements

Products in comparison

Product attributes
HSM V-Press 830 P1
HSM V-Press 830 plus
HSM V-Press 860 plus B P1
HSM V-Press 860 plus B
HSM V Press 860 max
HSM V-Press 860 max
Order number: 6056214 6058214 6048314
Pressing power: 300 kN 594 kN 594 kN
Maximum bale weight: 320 kg 550 kg 480 kg
Width x Depth x Height: 1717 x 1247 x 2570 mm 2099 x 1245 x 2985 mm 1801 x 1248 x 2990 mm
Loading aperture (WxH): 1195 x 530 mm 1500 x 651 mm 1195 x 650 mm

A reliable and safe baler is an effcient solution

With the HSM V-Press 860 plus B baler, TENAX has now optimized its disposal of waste materials, and can sell the bales to scrap vendors. It is a safer machine than the previous machine, due to the door which slides from the bottom to the top. This allows the operator to push the materials safely into the machine and a forklift is no longer required to load it.


Giorgio Morosi
Group Operational Excellence Manager


Learn more

Consumable materials

  • Consumable Materials
    Pre-looped wire 2,80x3700 - V-Press 840/V-Press 860/V-Press 860 S/P/VL 225/VL 500
