Vertical balers

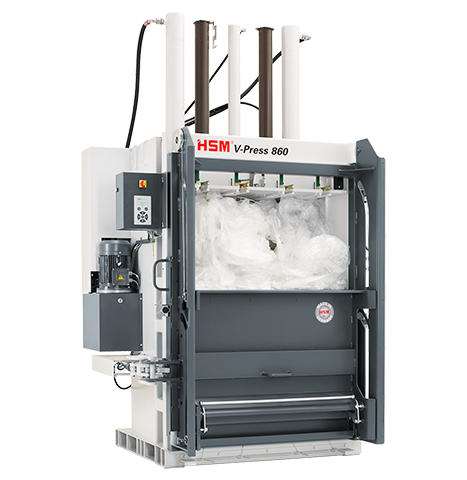

HSM V-Press 860 max

  • HSM V Press 860 max
  • HSM V-Press 860 max
  • HSM V Press 860 max
  • YouTube Video Thumbnail
  • HSM V Press 860 max
  • HSM V-Press 860 max
  • HSM V Press 860 max
  • HSM V Press 860 max
    play
Vertical balers

HSM V-Press 860 max

Weight
594 kN
Weight
max: 480 kg
Weight
B: 1200 mm H: 780 mm L: 1200 mm
Weight
B: 1801 mm T: 1248 mm H: 2990 mm
sliding door
  • double door
  • sliding door
hydraulic
    Datasheet
    Request product

    Scroll to the desired section:

    Technical data Consumable materials
    Please select
    blocks.contact_search.dropdown_alt

    Product highlights

    The HSM V-Press 860 combines high compaction force, a large loading aperture and outstanding operating convenience. Rapid stroke technology technology, retaining claws and the HSM TCS (TorsionControlSystem) enable particularly economical baling operation. The smooth-running sliding door with automatic start saves space and simplifies loading. The hydraulic door lock secures the door effortlessly and reliably.

    • Schiebetüre
      To fill the press, the upper half of the doors is pushed down and automatically opens after the compression process
    • V-Press - Automatikstart
      Automatic start of the pressing process after closing the door
    • Display
      Convenient membrane keypad with text display, which shows the current status of the machine
    • V-Press - Eilgang
      With rapid traverse technology, the balers achieve short cycle times and support demand-oriented energy use in daily operation

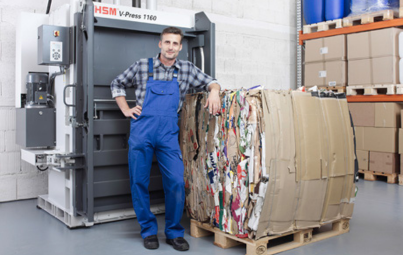

    • Hoch verdichtete Ballen
      Optimised bale dimensions and bale weights for efficient storage, transport and direct commercialisation
    • V-Press - Hydraulischer Türverschluss
      Hydraulic door lock - Convenient opening and closing, no manual effort required
    • V-Press - TCS
      HSM TCS (Torsion Control System) for monitoring press ram movement
    • Umreifung Draht oder Band
      Strapping with wire - optional tape station available for strapping with polyester tape or wire according to requirements
    • V-Press - Verpresst Kartonage/Folie
      Suitable for cardboard as well as film

    Products in comparison

    Product attributes
    HSM V Press 860 plus
    HSM V-Press 860 plus
    HSM V Press 860 max
    HSM V-Press 860 max
    HSM V-Press 1160 eco P1
    HSM V-Press 1160 eco
    Order number: 6048204 6048314 6044114
    Pressing power: 594 kN 594 kN 594 kN
    Maximum bale weight: 480 kg 480 kg 550 kg
    Bale size (WxHxL): 1200 x 780 x 1200 mm 1200 x 780 x 1200 mm 1200 x 1100 x 1200 mm
    Loading aperture (WxH): 1195 x 645 mm 1195 x 650 mm 1195 x 650 mm
    Number of strappings: 4 4 4
    Type of consumables: pre-looped wire pre-looped wire pre-looped wire
    Motor: 4 kW 4 kW 4 kW
    Voltage / Frequency: 400 V / 50 Hz 400 V / 50 Hz 400 V / 50 Hz
    Cycle time: 25 s 25 s 25 s
    Dimensions of machine (WxDxH): 1800 x 1253 x 2990 mm 1801 x 1248 x 2990 mm 1780 x 1388 x 2985 mm
    Machine weight: 2213 kg 2232 kg 2300 kg

    Consumable materials

    • Consumable Materials
      Pre-looped wire 2,80x3700 - V-Press 840/V-Press 860/V-Press 860 S/P/V-Press 860 max C/VL 225/VL 500
