Vertical balers

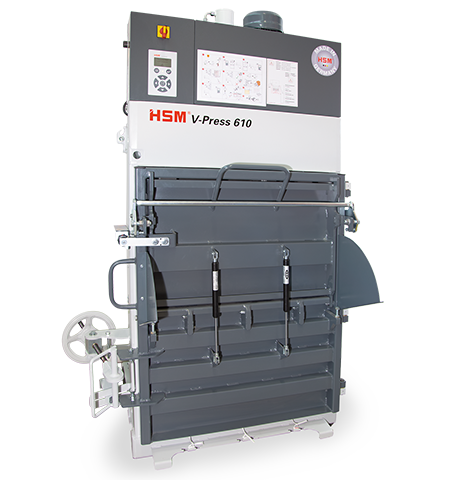

HSM V-Press 610 P

  • HSM V-Press 610 P P2
  • HSM V-Press 610 P P1
  • HSM V-Press 610 P P6
  • YouTube Video Thumbnail
  • HSM V-Press 610 P P2
  • HSM V-Press 610 P P1
  • HSM V-Press 610 P P6
  • HSM V-Press 610 P P2
    play
Vertical balers

HSM V-Press 610 P

Weight
120 kN
Weight
max: 100 kg
Weight
B: 800 mm H: 600 mm L: 800 mm
Weight
B: 1192 mm T: 1058 mm H: 1986 mm
Datasheet
Request product

Scroll to the desired section:

Technical data Consumable materials
Please select
blocks.contact_search.dropdown_alt

Product highlights

The compact vertical baler with loading flap has been specially developed for compacting opened or perforated PET/UBC bottles or beverage cans. Materials such as cardboard, paper or die-cut waste can alternatively be compacted.

  • The powerful system is designed as Plug&Press and can be put into operation immediately at the installation site
  • Rückhaltekrallen
    Special retaining claws optimize the compression of the pressing material.
  • V-Press - Automatikstart
    Automatic start of the pressing process after closing the door
  • Display
    Convenient membrane keypad with text display, which shows the current status of the machine
  • V-Press - Handrad
    Hand wheel door lock - Easy to handle thanks to counter-rotating thread for quick opening and closing
  • Optimiertes Verpressen
    Massive press ram and extremely robust press plate guidance
  • V-Press - TCS
    HSM TCS (Torsion Control System) for monitoring press ram movement
  • V-Press - Umreifung Polyesterband
    Manual bale strapping with continuous polyester tape

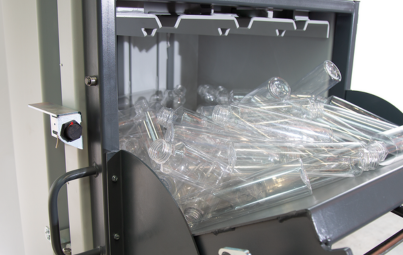

  • Füllklappe 610 P
    Simple loading thanks to the filling flap at a convenient working height.
  • Compacts PET and beverage cans

Products in comparison

Product attributes
HSM V-Press 860 PET
HSM V-Press 860 P
HSM V-Press 610 P P2
HSM V-Press 610 P
Order number: 6048714 6110204
Pressing power: 434 kN 120 kN
Maximum bale weight: 230 kg 100 kg
Bale size (WxHxL): 1200 x 780 x 1200 mm 800 x 600 x 800 mm
Loading aperture (WxH): 1195 x 650 mm 800 x 488 mm
Number of strappings: 4 3
Type of consumables: pre-looped wire strapping tape
Motor: 4 kW -
Voltage / Frequency: 400 V / 50 Hz 400 V / 50 Hz
Cycle time: 25 s 22 s
Dimensions of machine (WxDxH): 1870 x 1273 x 2985 mm 1192 x 1058 x 1986 mm
Machine weight: 2290 kg 540 kg

Consumable materials

  • Verbrauchsmaterial_Umreifungsband.png
    Consumable Materials
    Strapping tape WG 40 - 12 Gigant/Dixi 15S/Dixi 16S/Dixi 18S/Dixi 6SL/V-Press 503/V-Press 504/V-Press 605/V-Press 610/V-Press 718 plus C/V-Press 818/V-Press 820/V-Press 825/V-Press 830
    Learn more
