Vertical balers

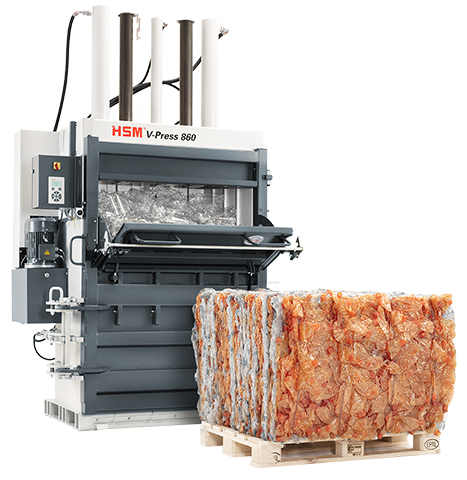

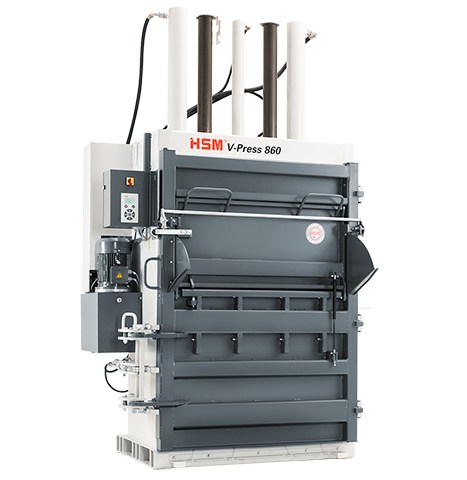

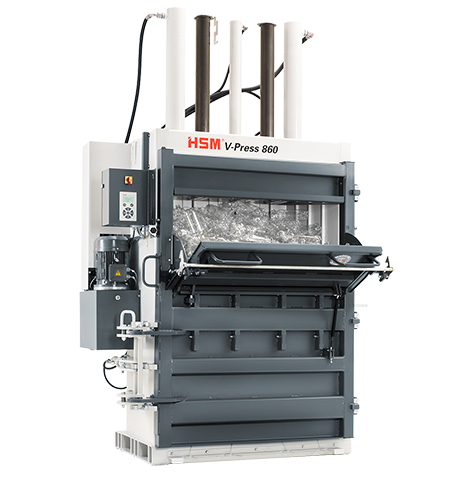

HSM V-Press 860 P

  • HSM V-Press 860 PET
  • HSM V-Press 860 PET
  • HSM V-Press 860 PET
  • YouTube Video Thumbnail
  • HSM V-Press 860 PET
  • HSM V-Press 860 PET
  • HSM V-Press 860 PET
  • HSM V-Press 860 PET
    play
Vertical balers

HSM V-Press 860 P

Weight
434 kN
Weight
max: 230 kg
Weight
B: 1200 mm H: 780 mm L: 1200 mm
Weight
B: 1870 mm T: 1273 mm H: 2985 mm
Datasheet
Request product

Scroll to the desired section:

Technical data Consumable materials
Please select
blocks.contact_search.dropdown_alt

Product highlights

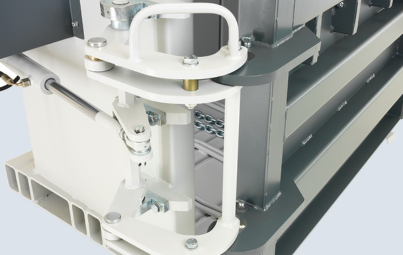

  • V-Press 860P/S - Verstärkter Presskasten
    Reinforced press chamber and hydraulic door lock - Convenient opening and closing, no manual effort required

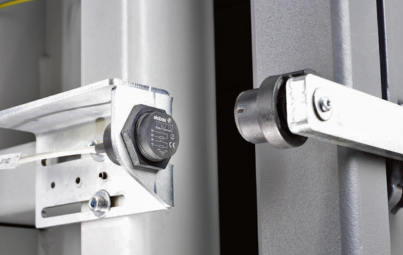

  • V-Press - Automatikstart
    Automatic start of the pressing process after closing the door
  • Display
    Convenient membrane keypad with text display, which shows the current status of the machine
  • V-Press - Eilgang
    With rapid traverse technology, the balers achieve short cycle times and support demand-oriented energy use in daily operation

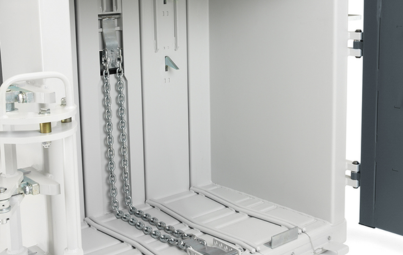

  • Kettenauswerfer
    Robust mechanical bale ejector chain

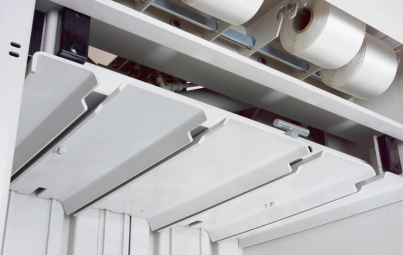

  • Optimiertes Verpressen
    Massive press ram and extremely robust press plate guidance

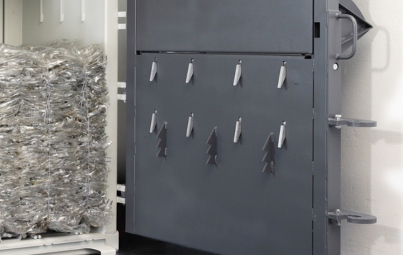

  • V-Press - Rückhaltekrallen doppelt
    Double quantity of retaining claws optimize the compression of the pressing material and reduce the number of loading actions
  • V-Press - TCS
    HSM TCS (Torsion Control System) for monitoring press ram movement

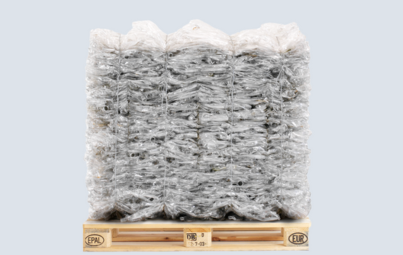

  • V-Press - Umreifung Draht PET
    Manual bale strapping with wire

Products in comparison

Product attributes
HSM V-Press 610 P P2
HSM V-Press 610 P
HSM V-Press 860 PET
HSM V-Press 860 P
Order number: 6110204 6048714
Pressing power: 120 kN 434 kN
Maximum bale weight: 100 kg 230 kg
Bale size (WxHxL): 800 x 600 x 800 mm 1200 x 780 x 1200 mm
Loading aperture (WxH): 800 x 488 mm 1195 x 650 mm
Number of strappings: 3 4
Type of consumables: strapping tape pre-looped wire
Motor: - 4 kW
Voltage / Frequency: 400 V / 50 Hz 400 V / 50 Hz
Cycle time: 22 s 25 s
Dimensions of machine (WxDxH): 1192 x 1058 x 1986 mm 1870 x 1273 x 2985 mm
Machine weight: 540 kg 2290 kg

Consumable materials

  • Consumable Materials

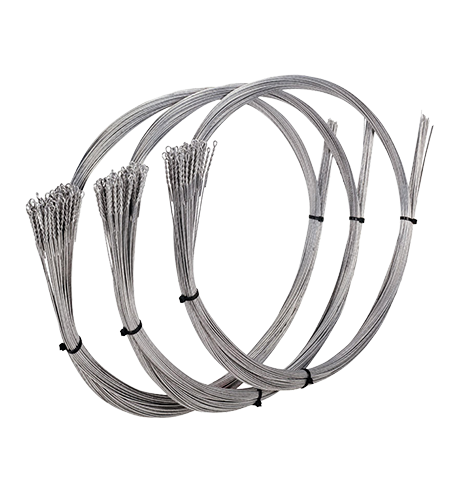

    Pre-looped wire 2,80x3700 - V-Press 840/V-Press 860/V-Press 860 S/P/V-Press 860 max C/VL 225/VL 500
