Vertical balers

HSM V-Press 610

Vertical balers

120 kN

100 kg

1198 x 823 x 1986 mm

800 x 495 mm

Scroll to the desired section:

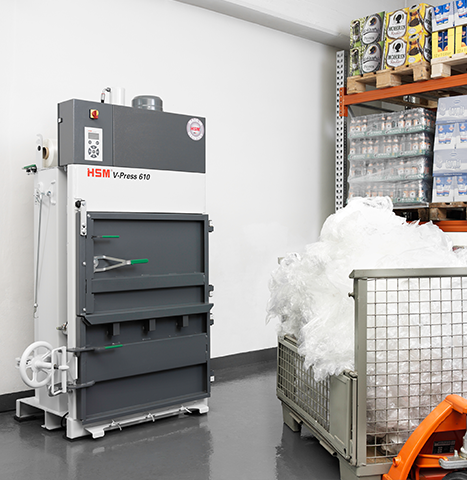

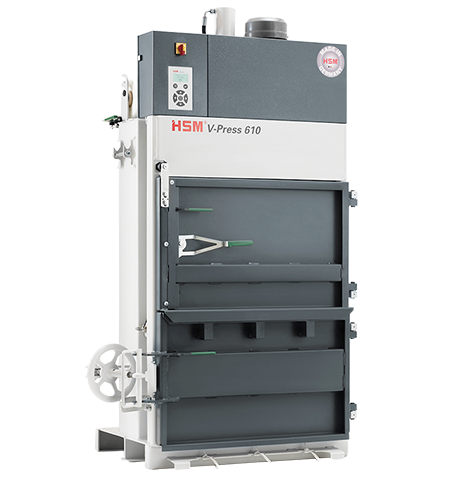

The HSM V-Press 610 reduces the volume of cardboard or foils in an economical way.

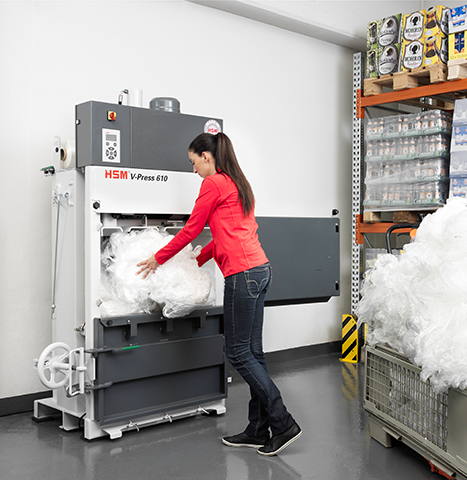

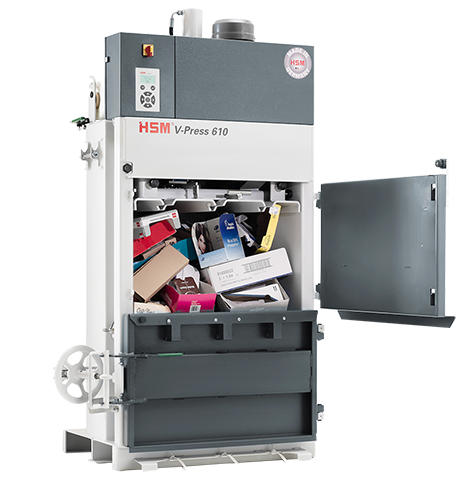

To fill the press, the upper half of the doors is swung to the right

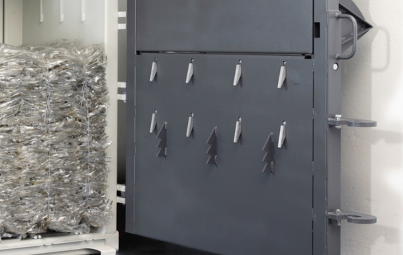

Special retaining claws optimize the compression of the pressing material.
Automatic start of the pressing process after closing the door
Convenient membrane keypad with text display, which shows the current status of the machine

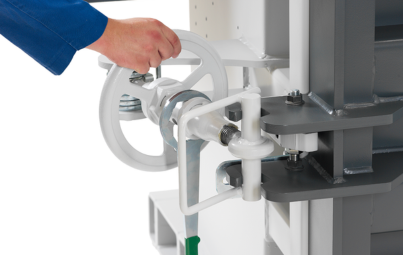

Hand wheel door lock - Easy to handle thanks to counter-rotating thread for quick opening and closing
Massive press ram and extremely robust press plate guidance
HSM TCS (Torsion Control System) for monitoring press ram movement

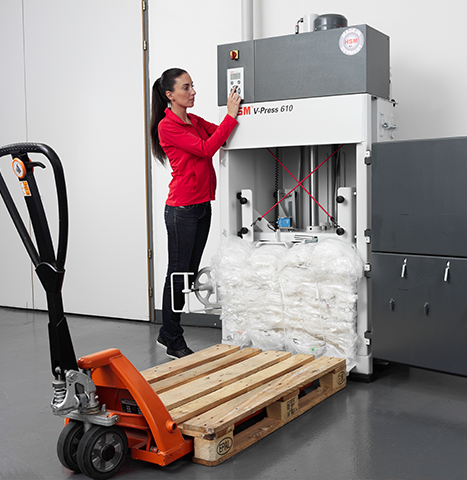

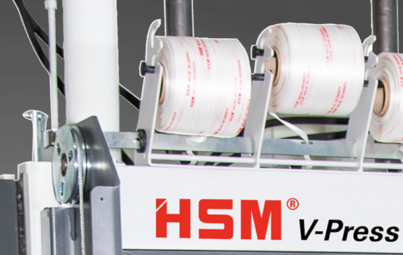

Manual bale strapping with continuous polyester tape
Suitable for cardboard as well as film

Product attributes	HSM V-Press 605	HSM V-Press 610	HSM V-Press 818 plus
Order number:	6112161	6110164	6050414
Pressing power:	57 kN	120 kN	185 kN
Maximum bale weight:	70 kg	100 kg	200 kg
Width x Depth x Height:	1198 x 823 x 1986 mm	1198 x 823 x 1986 mm	1700 x 1046 x 2370 mm
Loading aperture (WxH):	800 x 495 mm	800 x 495 mm	1195 x 530 mm

Consumable Materials

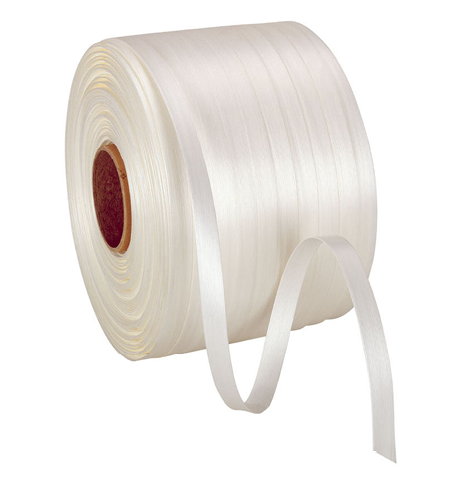

Strapping tape WG 40 - 12 Gigant/Dixi 15S/Dixi 16S/Dixi 18S/Dixi 6SL/V-Press 503/V-Press 504/V-Press 605/V-Press 610/V-Press 818/V-Press 820/V-Press 825/V-Press 830
