Vertical balers

HSM V-Press 605

Vertical balers

57 kN

70 kg

1198 x 823 x 1986 mm

800 x 495 mm

Scroll to the desired section:

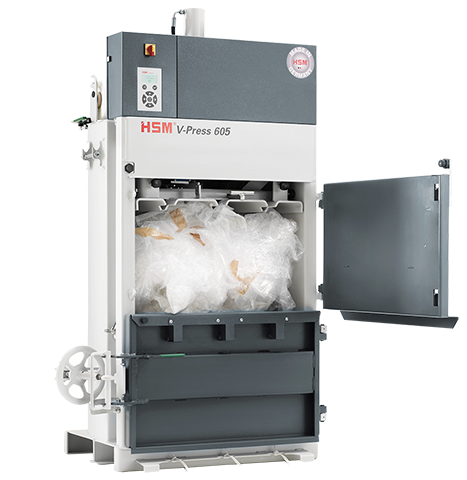

The HSM V-Press 605 reduces the volume of cardboard or foils in an economical way.

To fill the press, the upper half of the doors is swung to the right
Special retaining claws optimize the compression of the pressing material.
Automatic start of the pressing process after closing the door
Convenient membrane keypad with text display, which shows the current status of the machine
Hand wheel door lock - Easy to handle thanks to counter-rotating thread for quick opening and closing
Massive press ram and extremely robust press plate guidance
HSM TCS (Torsion Control System) for monitoring press ram movement
Manual bale strapping with continuous polyester tape
Suitable for cardboard as well as film

Product attributes	HSM V-Press 504	HSM V-Press 605	HSM V-Press 610
Order number:	6151251	6112161	6110164
Pressing power:	40 kN	57 kN	120 kN
Maximum bale weight:	60 kg	70 kg	100 kg
Width x Depth x Height:	1020 x 812 x 1922 mm	1198 x 823 x 1986 mm	1198 x 823 x 1986 mm
Loading aperture (WxH):	700 x 470 mm	800 x 495 mm	800 x 495 mm

Consumable Materials

Strapping tape WG 40 - 12 Gigant/Dixi 15S/Dixi 16S/Dixi 18S/Dixi 6SL/V-Press 503/V-Press 504/V-Press 605/V-Press 610/V-Press 818/V-Press 820/V-Press 825/V-Press 830
