Vertical balers

HSM V-Press 503 eco

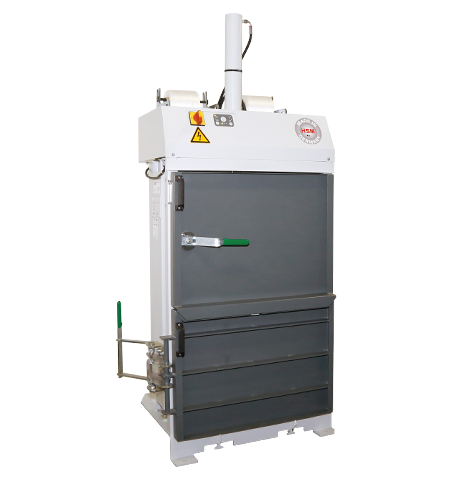

  • HSM V-Press 503 P6
  • YouTube Video Thumbnail
  • HSM V-Press 503 P6
  • HSM V-Press 503 P6
    play
Vertical balers

HSM V-Press 503 eco

Weight
30 kN
Weight
max: 50 kg
Weight
B: 500 mm H: 850 mm L: 700 mm
Weight
B: 953 mm T: 679 mm H: 1962 mm
Datasheet
Request product

Scroll to the desired section:

Technical data Consumable materials
Please select
blocks.contact_search.dropdown_alt

Product highlights

The easy-to-use HSM V-Press 503 vertical baling press is perfectly suited for the disposal of waste paper and cardboard with low material volumes and stands out благодаря its space-saving design. Commissioning is carried out on site thanks to Plug & Press.

  • The powerful system is designed as Plug&Press and can be put into operation immediately at the installation site
  • V-Press 503/504 - Doppeltüre
    To fill the press, the upper half of the doors is swung to the right
  • V-Press 503/504 - Kniehebel
    Bell-crank lever for quick and safe opening of the door
  • Geringe Fläche/Höhe
    Low installation height and small footprint
  • V-Press 503 - Mikroprozessor
    Microprocessor controller with membrane keypad
  • V-Press - Automatikstart
    Automatic start of the pressing process after closing the door
  • V-Press - Ballenentnahmewagen 503/504
    Bale removal and transport with discharge trolley
  • Optimiertes Verpressen
    Massive press ram and extremely robust press plate guidance
  • V-Press - Umreifung Polyesterband
    Manual bale strapping with continuous polyester tape
  • V-Press - Verpresst Kartonage/Folie
    Suitable for cardboard as well as film

Products in comparison

Product attributes
HSM V-Press 60 P1
HSM V-Press 60
HSM V-Press 503 P6
HSM V-Press 503 eco
HSM V-Press 504 P1
HSM V-Press 504
Order number: 6201111 6154104 6151251
Pressing power: - kN 30 kN 40 kN
Maximum bale weight: 40 kg 50 kg 60 kg
Bale size (WxHxL): 600 x 800 x 800 mm 500 x 850 x 700 mm 600 x 500 x 700 mm
Loading aperture (WxH): 740 x - mm 700 x 505 mm 700 x 470 mm
Number of strappings: 3 2 2
Type of consumables: strapping twine strapping tape strapping tape
Motor: - - 1,1 kW
Voltage / Frequency: - 230 V / 50 Hz 230 V / 50 Hz
Cycle time: - s 30 s 27 s
Dimensions of machine (WxDxH): 810 x 735 x 1280 mm 953 x 679 x 1962 mm 1020 x 812 x 1922 mm
Machine weight: 95 kg 250 kg 290 kg

Consumable materials

  • Verbrauchsmaterial_Umreifungsband.png
    Consumable Materials
    Strapping tape WG 30 - 8TE/Dixi 10S/Dixi 4S/Dixi 5S/Dixi 6S/Dixi 6SL/SP 5088/V-Press 503/V-Press 504/V-Press 605
