Vertical balers

HSM V-Press 60

Vertical balers

max: 40 kg

B: 600 mm H: 800 mm L: 800 mm

B: 810 mm T: 735 mm H: 1280 mm

Scroll to the desired section:

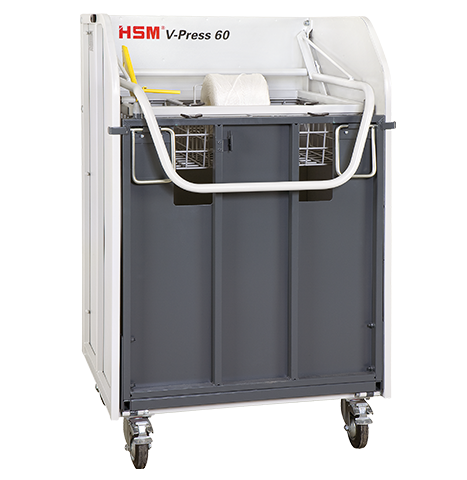

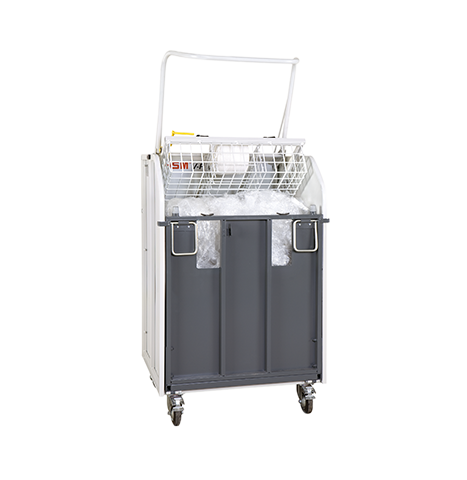

The mobile baling press HSM V-Press 60 compresses plastic film and lightweight packaging material right where the material is.

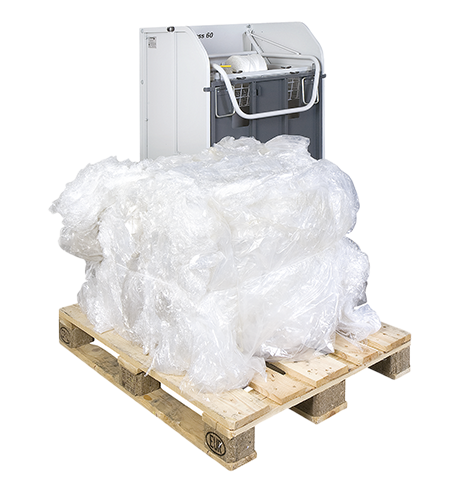

The bales of approx. 40 kg can be stacked and are easy to transport
The HSM V-Press 60 compresses plastic foils, plastic and paper bags as well as lightweight boxes and packing paper
Effortless to operate with a minimum amount of strength

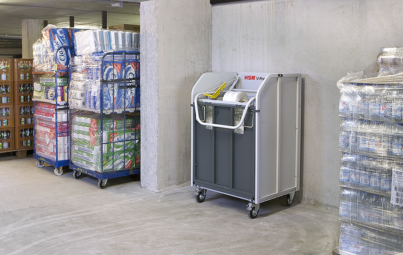

Does not need any electricity, servicing or maintenance

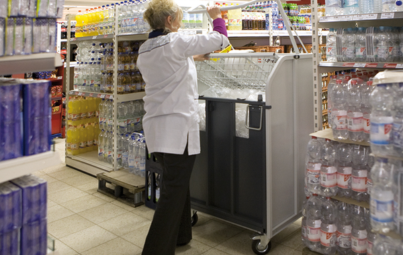

Move the HSM V-Press 60 to where the waste is produced. It fi ts through every door and in every lift

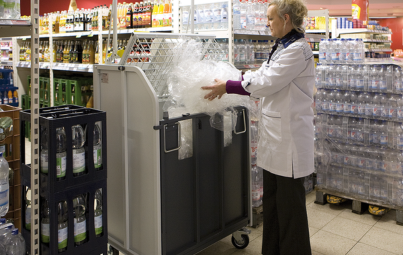

The used packing material is fed into the HSM V-Press 60 immediately after unpacking and does not need to be transported to interim storage

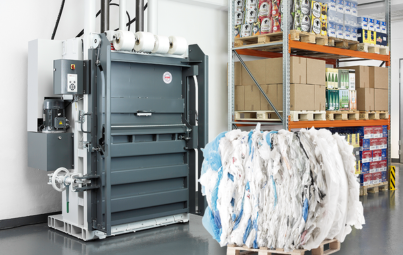

Bales produced can be re-pressed in hydraulic HSM baling presses i.e. compressed into denser and larger bales.
Better truck loading with HSM bales, and fewer trips by truck as a result
The lever action allows the HSM V-Press 60 to produce well-compressed, stackable bales

Product attributes	HSM V-Press 503 eco	HSM V-Press 60	HSM V-Press 504
Order number:	6154104	6201111	6151251
Pressing power:	30 kN	- kN	40 kN
Maximum bale weight:	50 kg	40 kg	60 kg
Bale size (WxHxL):	500 x 850 x 700 mm	600 x 800 x 800 mm	600 x 500 x 700 mm
Loading aperture (WxH):	700 x 505 mm	740 x - mm	700 x 470 mm
Number of strappings:	2	3	2

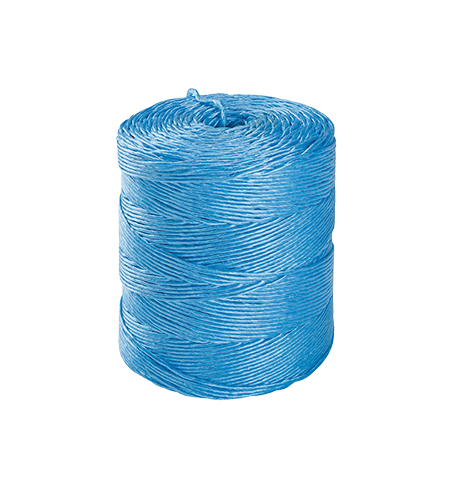

Type of consumables:	strapping tape	strapping twine	strapping tape
Motor:	-	-	1,1 kW
Voltage / Frequency:	230 V / 50 Hz	-	230 V / 50 Hz
Cycle time:	30 s	- s	27 s
Dimensions of machine (WxDxH):	953 x 679 x 1962 mm	810 x 735 x 1280 mm	1020 x 812 x 1922 mm
Machine weight:	250 kg	95 kg	290 kg
