Vertical balers

HSM V-Press 1160 eco

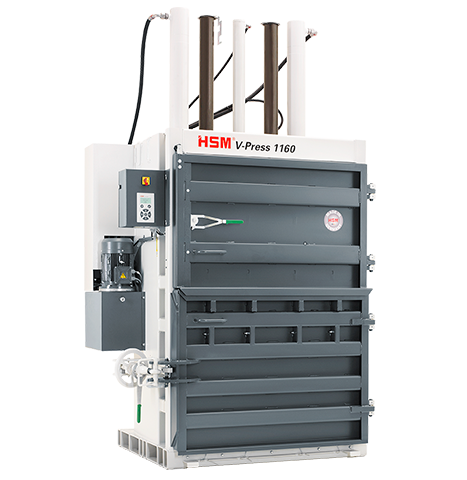

  • HSM V-Press 1160 eco P1

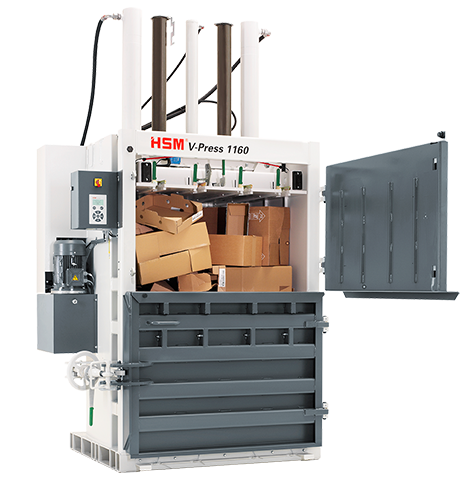

  • HSM V-Press 1160 eco P2

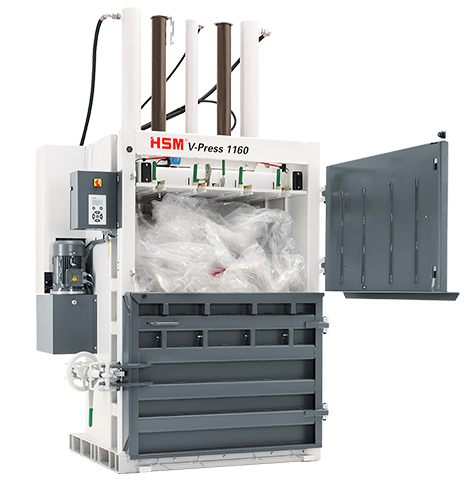

  • HSM V-Press 1160 eco P3
  • YouTube Video Thumbnail
  • HSM V-Press 1160 eco P1
  • HSM V-Press 1160 eco P2
  • HSM V-Press 1160 eco P3
  • HSM V-Press 1160 eco P1
    play
Vertical balers

HSM V-Press 1160 eco

Icon Folie
Icon gemischtes Papier
Icon Kartonage
Icon Abschnitte
Weight
594 kN
Weight
550 kg
Weight
1780 x 1388 x 2985 mm
Weight
1195 x 650 mm
Doppeltür
  • double door
  • sliding door
handwheel
    Datasheet
    Request product

    Scroll to the desired section:

    Technical data References Consumable materials
    Please select
    blocks.contact_search.dropdown_alt

    Product highlights

    Die HSM V-Press 1160 ist mit einem maximalen Ballengewicht von 550 kg das Spitzenmodell der HSM V-Press Serie mit starker Presskraft und absolut hoher Wirtschaftlichkeit.

    • V-Press - Eilgang
      The HSM V-Presses are highly energy efficient thanks to the rapid stroke technology. This saves time and money

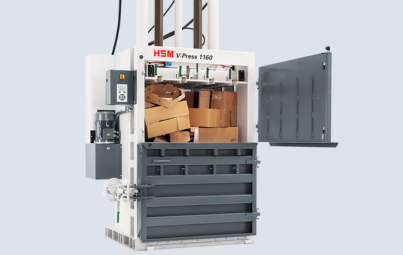

    • Doppeltüre
      To fill the press, the upper half of the doors is swung to the right
    • V-Press - Handrad
      Hand wheel door lock - Easy to handle thanks to counter-rotating thread for quick opening and closing
    • V-Press - TCS
      HSM TCS (Torsion Control System) for monitoring press ram movement
    • V-Press - Automatikstart
      Automatic start of the pressing process after closing the door
    • Display
      Convenient membrane keypad with text display, which shows the current status of the machine
    • V-Press - Verpresst Kartonage/Folie
      Suitable for cardboard as well as film
    • Hoch verdichtete Ballen
      Optimised bale dimensions and bale weights for efficient storage, transport and direct commercialisation
    • Umreifung Draht oder Band
      Strapping with wire - optional tape station available for strapping with polyester tape or wire according to requirements

    Products in comparison

    Product attributes
    HSM V Press 860 max
    HSM V-Press 860 max
    HSM V-Press 1160 eco P1
    HSM V-Press 1160 eco
    HSM V-Press 1160 Plus P1 PNG
    HSM V-Press 1160 plus
    Order number: 6048314 6044114 6044214
    Pressing power: 594 kN 594 kN 594 kN
    Maximum bale weight: 480 kg 550 kg 550 kg
    Width x Depth x Height: 1801 x 1248 x 2990 mm 1780 x 1388 x 2985 mm 1780 x 1568 x 2985 mm
    Loading aperture (WxH): 1195 x 650 mm 1195 x 650 mm 1195 x 650 mm
    Hornbach

    Residual waste becomes recyclable material

    With hindsight we can say that it was absolutely the correct decision to go with the vertical baler and HSM, and to be the pioneers within the industry with our concept. We are going to develop this even further.


    Andreas Back
    Head of Quality Management, Environment & CSR


    Learn more

    Consumable materials

    • Consumable Materials
      Pre-looped wire 2,80x4400 - V-Press 1160
      Learn more
