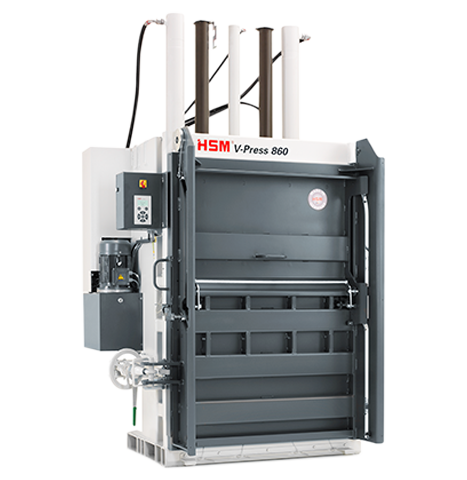

HSM V-Press 860 plus QL

Vertical balers

HSM V-Press 860 plus QL

594 kN

430 kg

1797 x 1314 x 2990 mm

1195 x 650 mm

Datasheet

Request product

Scroll to the desired section:

Technical data

Consumable materials

Product highlights

With a pressing power of 594 kN and employing low-noise and energy-saving technology, the HSM V-Press 860 is the most economical and ecological solution for your waste disposal.

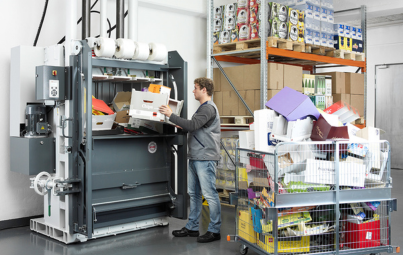

To fill the press, the upper half of the doors is pushed down and automatically opens after the compression process
Automatic start of the pressing process after closing the door
Optimised bale dimensions and bale weights for efficient storage, transport and dierct commercialisation
Convenient membrane keypad with text display, which shows the current status of the machine
The HSM V-Presses are highly energy efficient thanks to the rapid stroke technology. This saves time and money
Hand wheel door lock - Easy to handle thanks to counter-rotating thread for quick opening and closing
HSM TCS (Torsion Control System) for monitoring press ram movement

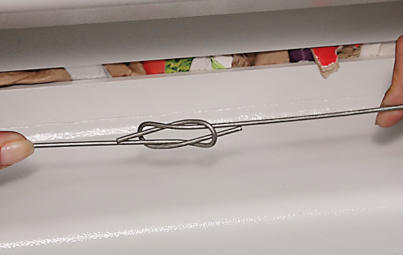

Manual 4-fold strapping with Quick-link wire
Suitable for cardboard as well as film

Products in comparison

Product attributes	HSM V-Press 860 plus QL	HSM V-Press 860 plus QL	HSM V-Press 860 max
Order number:	6048217A	6048217A	6048314
Pressing power:	594 kN	594 kN	594 kN
Maximum bale weight:	430 kg	430 kg	480 kg
Width x Depth x Height:	1797 x 1314 x 2990 mm	1797 x 1314 x 2990 mm	1801 x 1248 x 2990 mm
Loading aperture (WxH):	1195 x 650 mm	1195 x 650 mm	1195 x 650 mm

Consumable materials

Consumable Materials

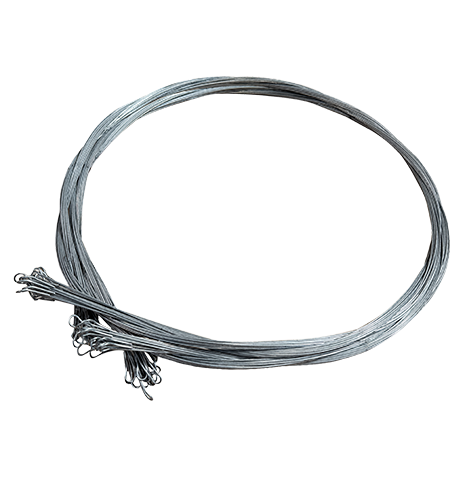

Quicklink-wire 2,45x3400 - V-Press 860 TimeSave/V-Press 860 plus QL
