HSM V-Press 860 max C

Vertical balers

HSM V-Press 860 max C

Vertical balers

HSM V-Press 860 max C

600 kN

B: 1000 mm H: 780 mm L: 1200 mm

B: 2012 mm T: 1248 mm H: 2375 mm

Datasheet

Request product

Scroll to the desired section:

Technical data

Consumable materials

Product highlights

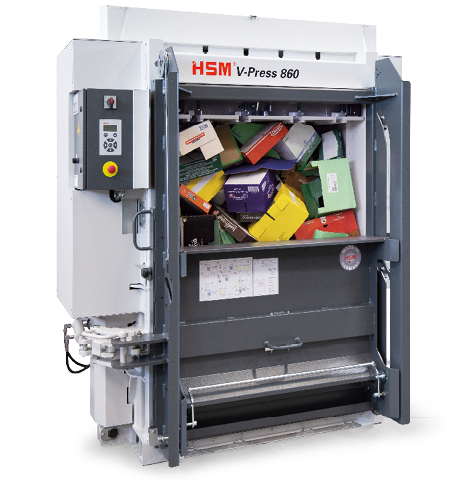

The powerful vertical baler with a particularly low overall height. The space-saving system with high pressing power is designed as plug-and-play and can be put into operation immediately on site.

The powerful system is designed as Plug&Press and can be put into operation immediately at the installation site

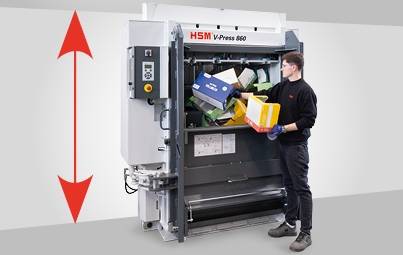

Operation of the vertical baler even in rooms with low ceilings thanks to the baler´s low height

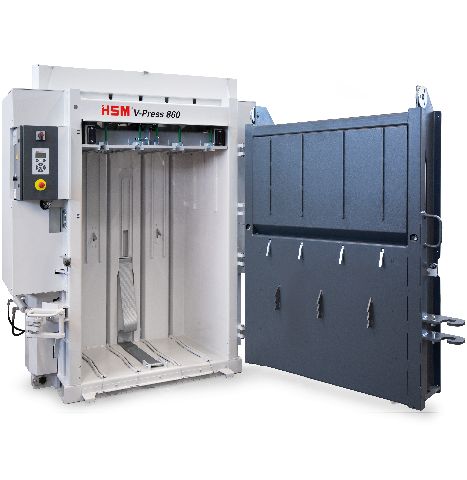

Hydraulic door lock - Convenient opening and closing, no manual effort required

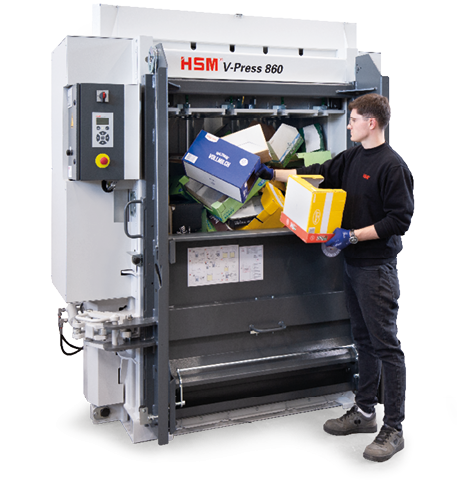

To fill the press, the upper half of the doors is pushed down and automatically opens after the compression process
Automatic start of the pressing process after closing the door
Convenient membrane keypad with text display, which shows the current status of the machine
Massive press ram and extremely robust press plate guidance
Strapping with wire - optional tape station available for strapping with polyester tape or wire according to requirements

Products in comparison

Product attributes	HSM V-Press 718 plus C	HSM V-Press 860 max C	HSM V-Press 1160 max
Order number:	6042414	6047314	6044314
Pressing power:	180 kN	600 kN	594 kN
Maximum bale weight:	200 kg	- kg	550 kg
Bale size (WxHxL):	800 x 700 x 1100 mm	1000 x 780 x 1200 mm	1200 x 1100 x 1200 mm
Loading aperture (WxH):	1100 x 500 mm	1195 x 650 mm	1195 x 650 mm
Number of strappings:	4	4	4
Type of consumables:	strapping tape	pre-looped wire	pre-looped wire
Motor:	-	-	4 kW
Voltage / Frequency:	400 V / 50 Hz	400 V / 50 Hz	400 V / 50 Hz
Cycle time:	26 s	45 s	25 s
Dimensions of machine (WxDxH):	1780 x 938 x 2095 mm	2012 x 1248 x 2375 mm	1780 x 1568 x 2985 mm
Machine weight:	980 kg	2497 kg	2450 kg

Consumable materials

Consumable Materials

Pre-looped wire 2,80x3700 - V-Press 840/V-Press 860/V-Press 860 S/P/V-Press 860 max C/VL 225/VL 500
