Vertical balers

HSM V-Press 1160 max

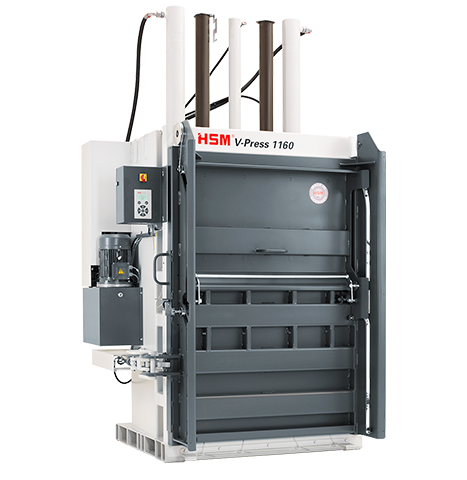

  • HSM V-Press 1160 max P1

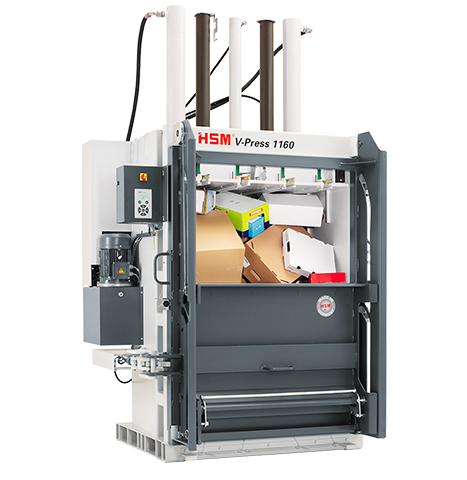

  • HSM V-Press 1160 max P2

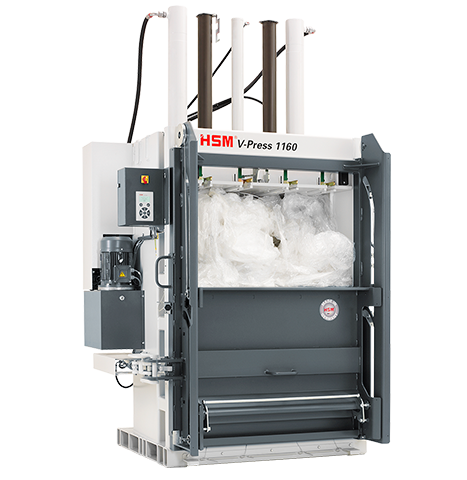

  • HSM V-Press 1160 max P3
  • YouTube Video Thumbnail
  • HSM V-Press 1160 max P1
  • HSM V-Press 1160 max P2
  • HSM V-Press 1160 max P3
  • HSM V-Press 1160 max P1
    play
Vertical balers

HSM V-Press 1160 max

Icon Folie
Icon gemischtes Papier
Icon Kartonage
Icon Abschnitte
Weight
594 kN
Weight
550 kg
Weight
1780 x 1568 x 2985 mm
Weight
1195 x 650 mm
Schiebetür
  • double door
  • sliding door
hydraulic
    Datasheet
    Request product

    Scroll to the desired section:

    References Consumable materials
    Please select
    blocks.contact_search.dropdown_alt

    Product highlights

    With a maximum bale weight of 550 kg, strong pressing power and an absolutely high efficiency level, the HSM V-Press 1160 is the top-model of the HSM V-Press series.

    • Schiebetüre
      To fill the press, the upper half of the doors is pushed down and automatically opens after the compression process
    • V-Press - Automatikstart
      Automatic start of the pressing process after closing the door
    • Display
      Convenient membrane keypad with text display, which shows the current status of the machine
    • V-Press - Eilgang
      The HSM V-Presses are highly energy efficient thanks to the rapid stroke technology. This saves time and money
    • Hoch verdichtete Ballen
      Optimised bale dimensions and bale weights for efficient storage, transport and direct commercialisation
    • V-Press - Hydraulischer Türverschluss
      Hydraulic door lock - Convenient opening and closing, no manual effort required
    • V-Press - TCS
      HSM TCS (Torsion Control System) for monitoring press ram movement
    • Umreifung Draht oder Band
      Strapping with wire - optional tape station available for strapping with polyester tape or wire according to requirements
    • V-Press - Verpresst Kartonage/Folie
      Suitable for cardboard as well as film

    Products in comparison

    Product attributes
    HSM V-Press 1160 Plus P1 PNG
    HSM V-Press 1160 plus
    HSM V-Press 1160 max P1
    HSM V-Press 1160 max
    Order number: 6044214 6044314
    Pressing power: 594 kN 594 kN
    Maximum bale weight: 550 kg 550 kg
    Width x Depth x Height: 1780 x 1568 x 2985 mm 1780 x 1568 x 2985 mm
    Loading aperture (WxH): 1195 x 650 mm 1195 x 650 mm
