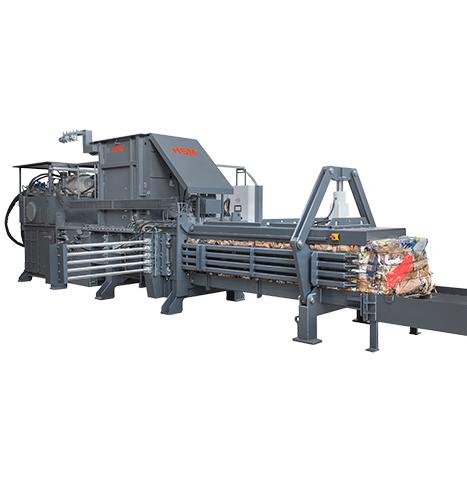

HSM VK 6215

Channel baling presses

620 kn

550 kg

1100 x 750 mm

Scroll to the desired section:

For professional disposal management or larger industrial applications with high throughput rates - Throughput up to approx. 540 m³/h

Fully automatic 5-fold strapping for optimal bale result also with expansive materials
Available as an option with frequency-regulated drive – saves 40 % of the energy used by standard drives
Control of the pressing process via light barrier. Suitable for continuous loading with conveyor belt, air feeding or similar
Suitable for cardboard, plastic film and compressing DSD goods, UBC as well as PET bottles (other materials on request)
Solid press carriage guidance with easy maintenance access
Available as an option suitable for residual waste (with wear-resistant steel)
Versatile solution for materials up to approx. 60 kg /m³ bulk weight

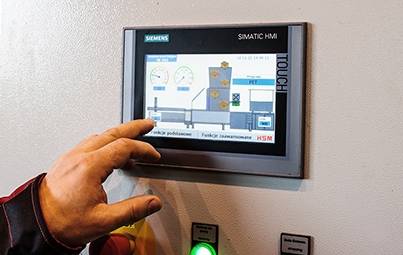

Optimally adjusted software for different materials guarantees high bale quality even when material is frequently changed

Product attributes	HSM VK 6015	HSM VK 6215	HSM VK 7215
Order number:	6442007	6443005	6445004
Pressing power:	720 kn	620 kn	720 kn
Bale weight:	260 x 470 kg	300 x 550 kg	340 x 620 kg
Bale size (LxWxH):	750 x 750 mm	1100 x 750 mm	1100 x 750 mm
Strapping:	4	5	5

Consumable Materials

Strapping wire 3,4 mm 40 Kg - VK 120/VK 150/VK 50/VK 60/VK 62/VK 72/VK 88
