HSM CP 4988

Crusher press combination

100 kg

4000

490 mm

Scroll to the desired section:

This efficient PET recycling system reduces the volume of empty PET bottles by up to 90 % in one cycle and produces compact raw material bales.

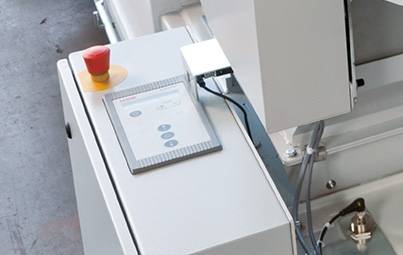

Automatic photoelectric control of the pressing process - display to indicate “bale ready”

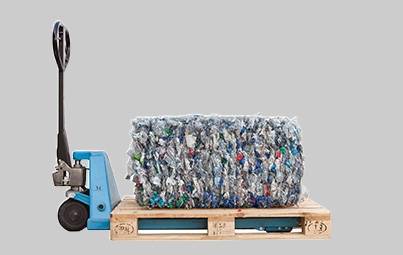

Manual, 3-fold strapping with continuous polyester strap - bale weight up to 100 kg

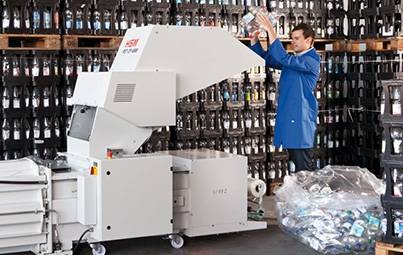

Manual and automatic filling possible
Throughput per hour up to 4000 PET bottles (1 litre)
Efficient PET recycling system to reduce the volume of empty PET bottles by up to 90 % and produce compact raw material bales
A scraper system removes the compressed plastic bottles and cans from the crusher rollers to prevent blockages and downtime while clearing
A dosing shaft with integrated blades ensures that the plastic bottles and cans are fed reliably
Crusher rollers made of specially hardened and ground steel, completely resistant to wear and very strong, for a long service life

Product attributes	HSM CP 4988
Order number:	6577144
Throughput per hour PET bottles (1 litre):	4000
Bale weight:	100 x 100 kg
Dimensions of machine (WxDxH):	990 x - x 1800 mm
Working width:	490 mm

Consumable Materials

Strapping tape WG 65 - CP4988/Dixi 30S/Dixi 50S/Dixi 60S/HL 3521 S
