HSM V-Press 860 vertical baling press With a pressing power of 594 kN and employing low-noise... more

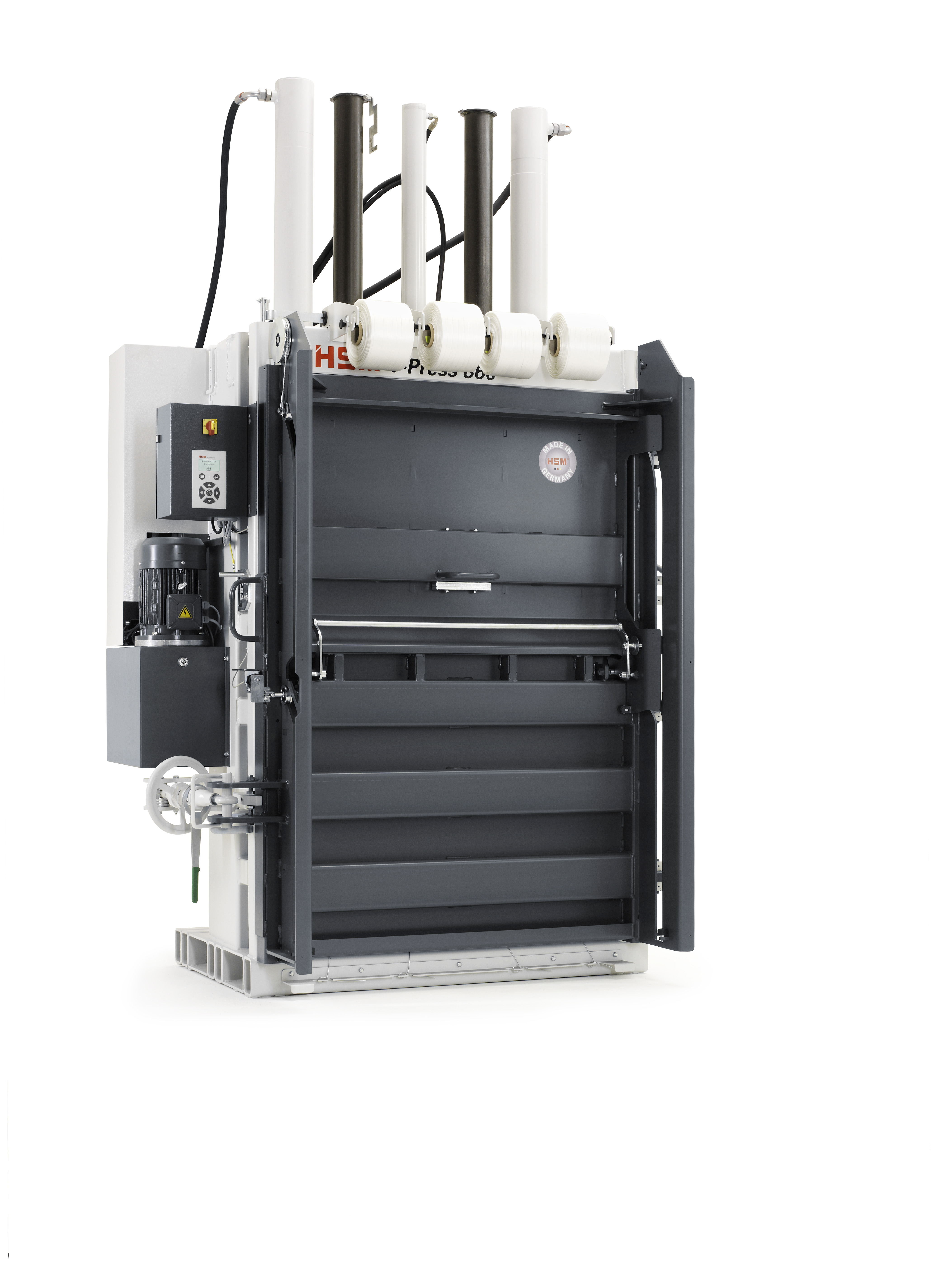

HSM V-Press 860 vertical baling press
With a pressing power of 594 kN and employing low-noise and energy-saving technology, the HSM V-Press 860 is the most economical and ecological solution for your waste disposal.
To fill the press, the upper half of the doors is pushed down and automatically opens after the compression process
Hand wheel door lock - Easy to handle thanks to counter-rotating thread for quick opening and closing

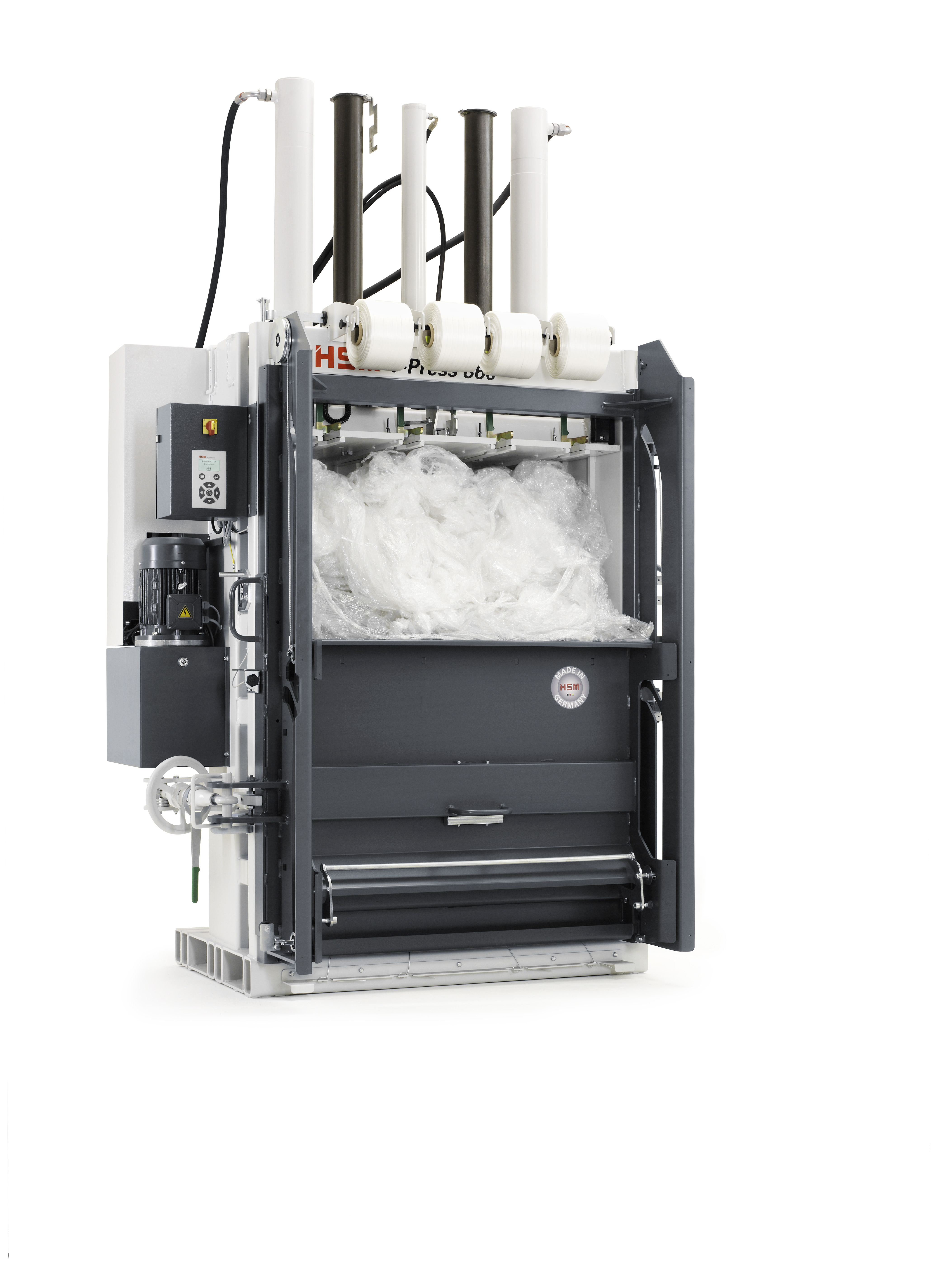

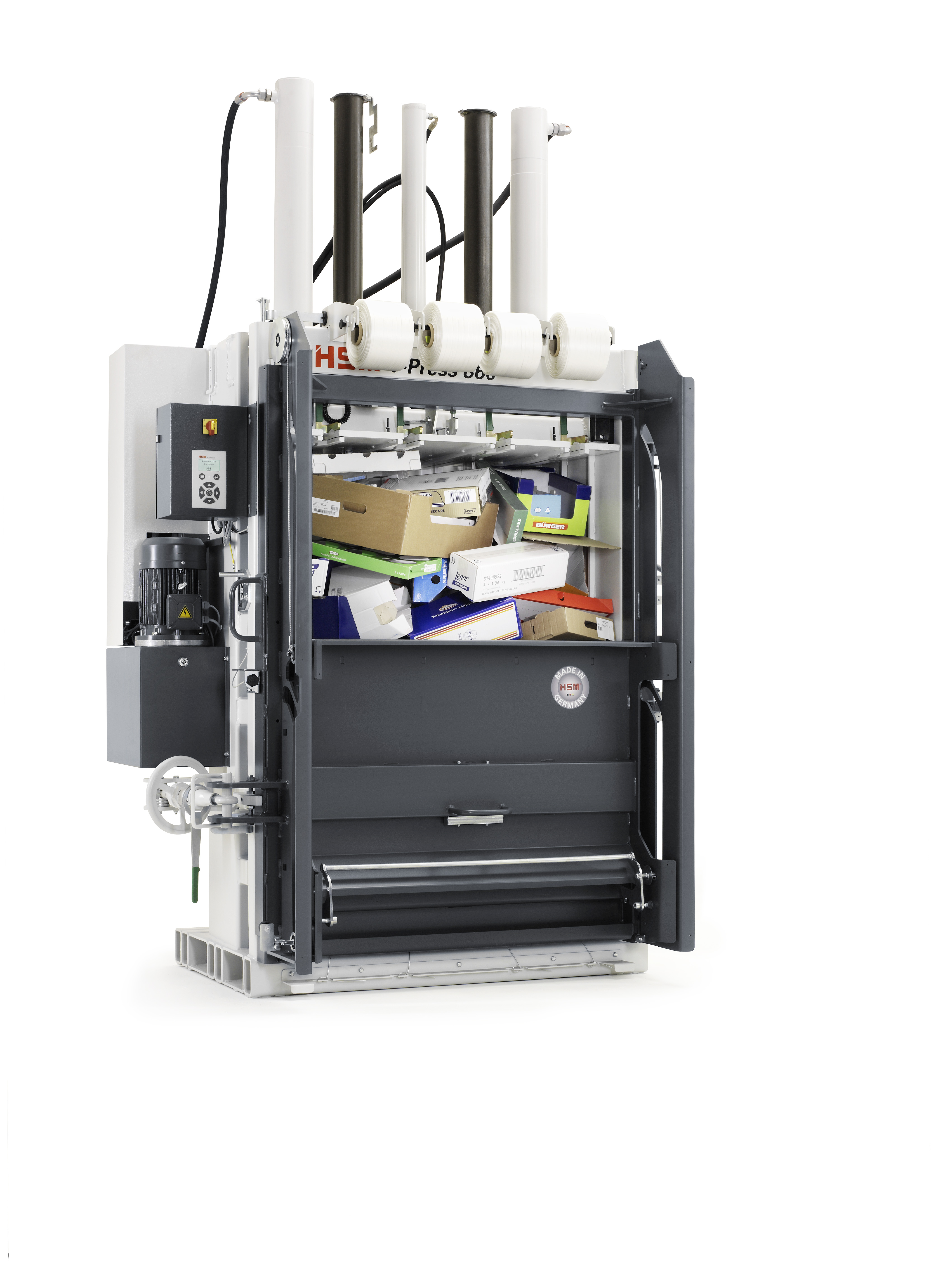

Suitable for cardboard as well as film
Automatic start of the pressing process after closing the door
Optimised bale dimensions and bale weights for efficient storage, transport and direct commercialisation
Convenient membrane keypad with text display, which shows the current status of the machine
HSM TCS (Torsion Control System) for monitoring press ram movement
Strapping with wire - optional tape station available for strapping with polyester tape or wire according to requirements
Technical data "HSM V-Press 860"
| Order number: | 6048204 |
| EAN: | 4026631079006 |
| Pressing power: | 594 kN |
| Specific pressing power: | 63,46 N/cm² |
| Driving power: | 4 kW |
| Voltage / Frequency: | 400 V / 50 Hz |
| Cycle time when idling vacío: | 25 s |
| Volume throughput in idle operation (theor.): | 12 m³/h |
| Loading height: | 1114 mm |
| Loading aperture width x height: | 1195 x 645 mm |
| Bale length x Bale width x Bale height: | 1200 x 1200 x 780 mm |
| Bale weight: | 480 kg |
| Method of loading: | manual |
| Noise level (idle operation): | ca. 65 dB(A) |
| Width x Depth x Height: | 1800 x 1253 x 2990 mm |
| Weight: | 2213 kg |
| Related product line: | V-Press |
| Type of consumables: | Wire, Pre-looped wire |
| Press material: | Plastic film, Mixed paper, Cardboard, Punch waste/residue, Clothing, Big Bags, Polystyrene |
