Heavy Duty Document Shredders

Product family
HSM SP 5088

Weight
500 mm
Weight
85 kN
Security level
blocks.contact_search.dropdown_alt

Scroll to the desired section:

Consumable materials Accessories
Please select
blocks.contact_search.dropdown_alt

Product highlights

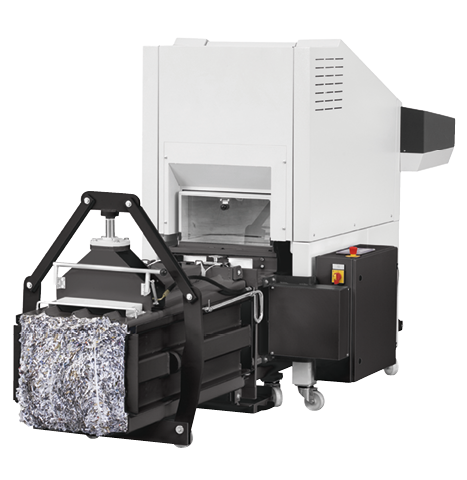

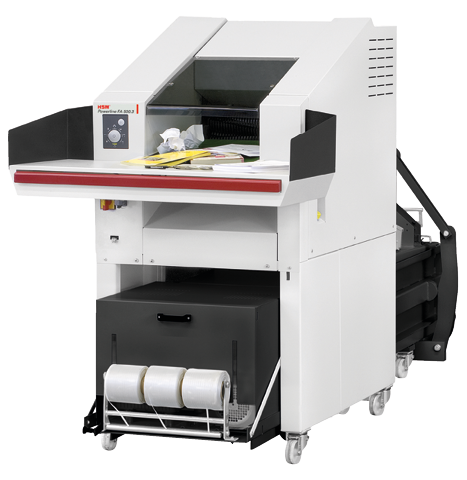

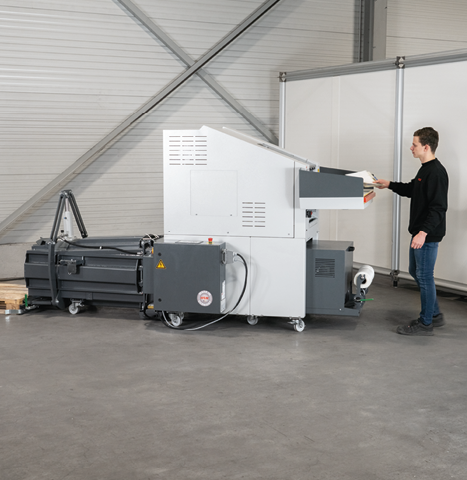

With this waste disposal station, HSM combines the FA 500.3 heavy duty document shredder with a channel baling press. It is therefore perfect for use in archives or central stations for shredding large quantities of documents, which are then compressed into bales of up to 90 kg.

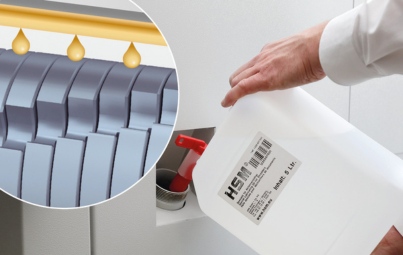

  • SP Automatischer Öler (SP 5080/5088)
    We have integrated an automatic oiler into the device which will ensure it runs smoothly, giving you a consistently high cutting capacity and quality.

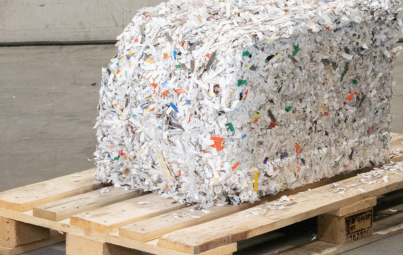

  • SP Ballengewicht (SP 5080/5088)
    The bale weight is variable and depends on your requirement.

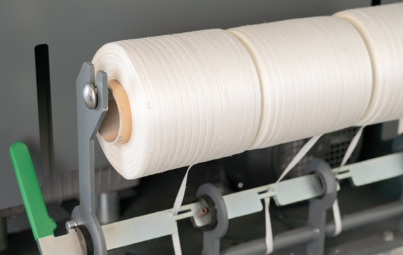

  • SP Bandstation (SP 5088)
    The tape station is readily accessible, the strapping tape can be easily changed.

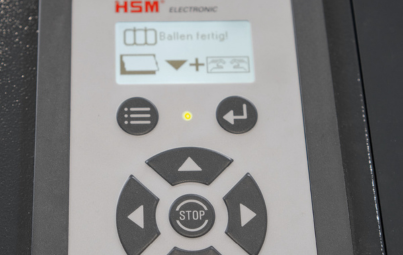

  • SP Bedienfeld Presse (SP 5080/5088 V)
    Modern control with membrane keyboard, graphics-capable text display and language selection.
  • SP Dauerbetrieb
    The powerful motor ensures a high cutting capacity and reliable continuous operation.
  • SP Einfache Inbetriebnahme
    The combination can be commissioned very easily using Plug-and-Play. The conveyor belt-shredder can therefore be combined with a press at any time.
  • The powerful and energy efficient dust extractor HSM DE 4-75 in dust classification M ensures an optimal extraction due to the high air flow volume, thereby reducing dust emissions (accessory).

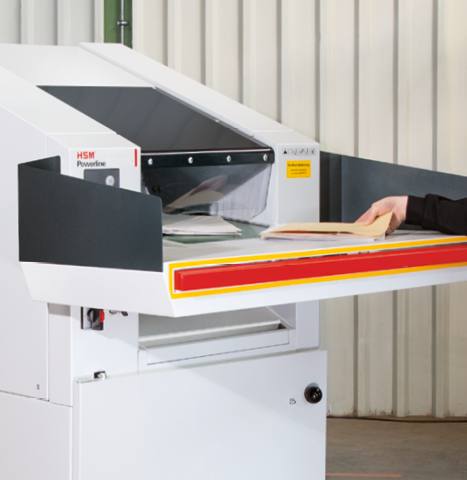

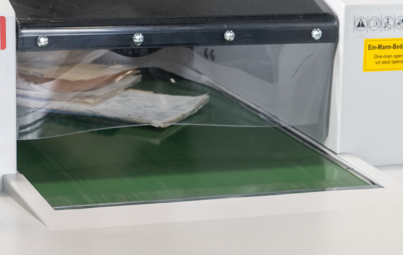

  • SP Förderband (SP 5080/5088)
    The material feeding is convenient and takes place via the non-slip conveyor belt.
  • Safety is a high priority for HSM and so we have incorporated an emergency off safety bar on the loading table, which stops the device when pressure is applied.
  • SP Schnittgutauffang (SP 5088)

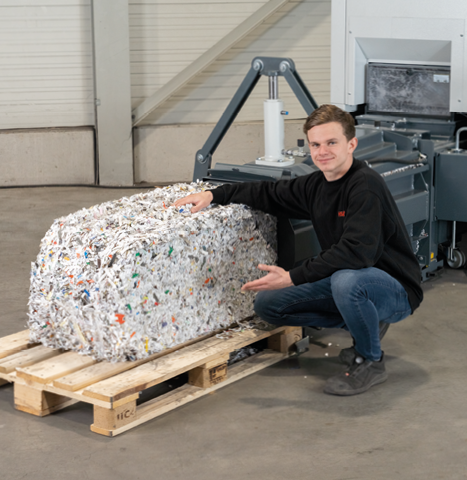

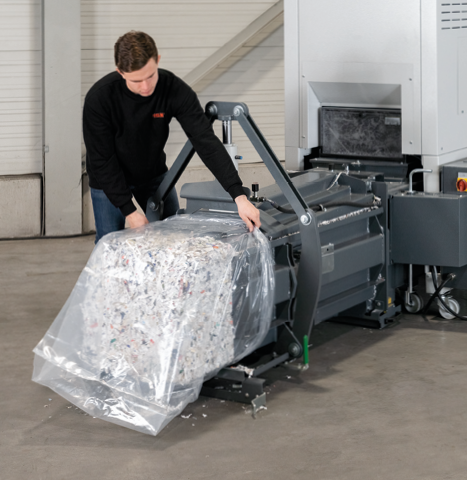

    The shredded material compressed into compact bales is manually tied off with three baler straps of continuous polyester strapping and can also be disposed of cleanly in a waste bag.
  • SP Vollstahl-Schneidwellen
    The induction-hardened, solid steel cutting rollers can easily cope with staples and paper clips and guarantee durability.

Products in comparison

Product attributes
HSM Powerline SP 5088 - 6 x 40-53 mm
HSM Powerline SP 5088 - 3.9 x 40 mm
Order number: 2990414134 2994414134
EAN: 4026631060301 4026631060318
Cutting type: - -
Cutting size: - -
Security level (DIN 66399 / ISO/IEC 21964): E-2|O-2|P-3|T-3 E-3|F-1|O-3|P-4|T-4
Cutting capacity in sheets 80g/m²: 300 x 350 180 x 200
Intake width: 500 mm 500 mm
Driving power: - kW - kW
Voltage / Frequency: 400 V / 50 Hz 400 V / 50 Hz
Pressing power: 85 kN 85 kN
Bale weight: 40 x 90 kg 40 x 90 kg
Width x Depth x Height: 1273 x 3281 x 1792 mm 1273 x 3281 x 1792 mm
Machine weight: 1660 kg 1660 kg

Consumable materials

  • Verbrauchsmaterial_Mehrwegauffangbeutel_AV_gross.png
    Consumable Materials / Accessories
    reusable collecting bag 25 pcs. - SP 5088
    Learn more
  • Verbrauchsmaterial_Spezialoel_Kanister_5l.png
    Consumable Materials / Accessories
    HSM Cutting block special oil - FA 400.2/FA 500.3/SP 5080/SP 5088
    Learn more
  • Verbrauchsmaterial_Umreifungsband.png
    Consumable Materials
    Strapping tape WG 30 - 8TE/Dixi 10S/Dixi 4S/Dixi 5S/Dixi 6S/Dixi 6SL/SP 5088/V-Press 503/V-Press 504/V-Press 605
    Learn more

Accessories

  • Zubehoer_Entstauber_DE_4-75.png
    Consumable Materials / Accessories
    Entstauber DE 4-75 - FA 500.3/SP 5080/SP 5088
    Learn more
  • Zubehoer_Tischverbreiterung_FA500_SP5080_SP5088.png
    Consumable Materials / Accessories

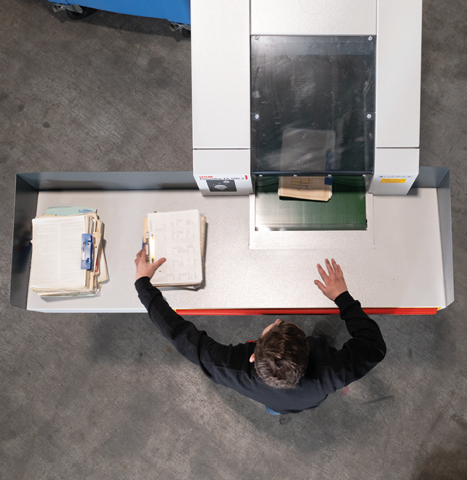

    Enlarging of a table - FA 500.3/SP 5080/SP 5088
    Learn more
  • Zubehoer_Palettenhalter_KP88.png
    Consumable Materials / Accessories

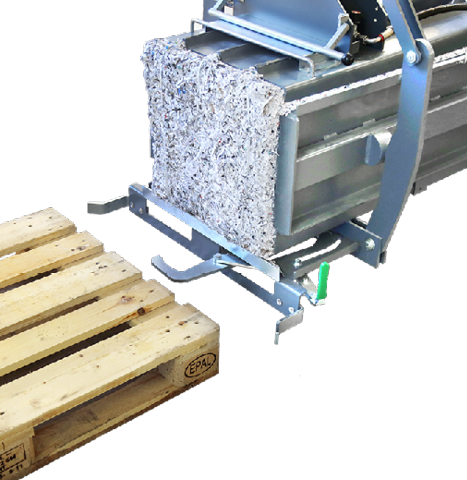

    Pallet holder - SP 5088
    Learn more
