  5. HSM StoreEx HDS 230 - 11,5 x 26 mm
Digital Data Media Shredders

Product family
HSM HDS 230

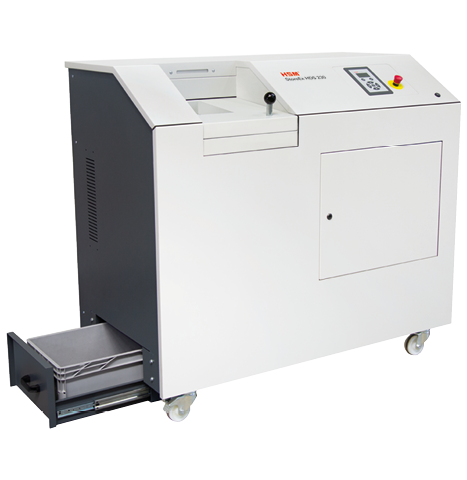

  • StoreEx_HDS_230_bin_Produktbild_1.png

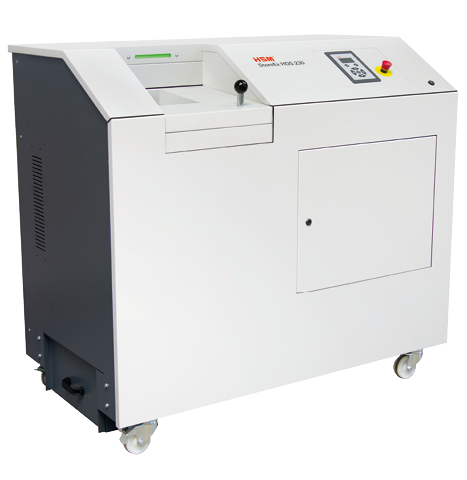

  • StoreEx_HDS_230_bin_Produktbild_2.png
  • StoreEx_HDS_230_bin_Produktbild_1.png
  • StoreEx_HDS_230_bin_Produktbild_2.png
Digital Data Media Shredders

Product family
HSM HDS 230

Weight
45 l
Weight
three-phase current without ground wire
Security level
  • E-2|H-4|O-1|T-2
  • E-2|H-5|O-2|T-3
Version

    Scroll to the desired section:

    Technical data Accessories
    Please select
    blocks.contact_search.dropdown_alt

    Product highlights

    Secure, data protection compliant and economical. This digital data media shredder digital data carriers into tiny particles and makes data recreation virtually impossible.

    • StoreEx Anti-Materialstau Funktion (HDS)
      The automatic reverse function in the shredder eliminates material jams and ensures your shredding operations run smoothly.
    • StoreEx CD-Direkteingabe
      Thin optical, magnetic and electronic data media can be shredded comfortably and quickly using the input slot.
    • StoreEx Dezentrale Vernichtung (HDS 230)
      Data media can be shredded easily in decentralised locations with this machine.
    • StoreEx Energieeffizienter Dauerbetrieb
      This powerful machine provides an excellent cutting performance combined with reliable continuous operation and a low noise level
    • StoreEx Funktionsmodi (HDS 150)
      The selection of the correct functional mode will always ensure the maximum throughput for the respective material type.

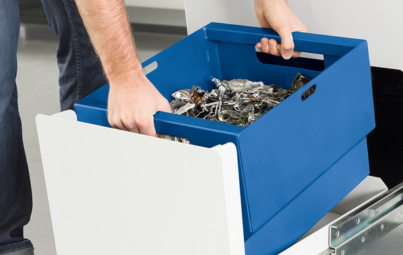

    • StoreEx Herausnehmbarer Auffangbehälter
      The waste container can be easily removed and emptied.
    • StoreEx Komfortable Arbeitshöhe (HDS 230)
      The large LED display enables the continuous input of media at a comfortable working height.
    • StoreEx Not-Aus-Schalter
      It may be necessary to stop the machine immediately so we have equipped the device with an emergency off switch which, when activated, will do just this.
    • StoreEx Vollstahl-Schneidwellen
      The induction-hardened, solid steel cutting rollers are robust and ensure a high level of durability!

    Products in comparison

    Product attributes
    HSM StoreEx HDS 230 - 20 x 40-50 mm
    HSM StoreEx HDS 230 - 11.5 x 26 mm
    HSM StoreEx HDS 230 - 11.5 x 26 mm
    Order number: 1778124 1777124 1777124F
    EAN: 4026631065696 4026631065689 4026631075886
    Cutting type: particle cut particle cut particle cut
    Cutting size: 20 x 40-50 mm 11,5 x 26 mm 11,5 x 26 mm
    Security level (DIN 66399 / ISO/IEC 21964): E-2|H-4|O-1|T-2 E-2|H-5|O-2|T-3 E-2|H-5|O-2|T-3
    Cutting capacity HDD up to 3,5": 360 280 280
    Cutting capacity HDD up to 2,5": 1500 1150 1150
    Cutting capacity CD/DVD: 7500 6000 6000
    Cutting capacity magnetic tapes: 500 420 420
    Loading aperture (LxWxH): 300 x 165 x 60 mm 300 x 165 x 60 mm 300 x 165 x 60 mm
    Noise level (idle operation): ca. 49 dB(A) ca. 50 dB(A) ca. 55 dB(A)
    Voltage / Frequency: 400 V / 50 Hz 400 V / 50 Hz 400 V / 50 Hz
    Container volume / collecting: 45 l 45 l - l
    Loading aperture (WxH): 165 x 60 mm 165 x 60 mm 165 x 60 mm
    Width x Depth x Height: 1580 x 905 x 1420 mm 1580 x 905 x 1420 mm 2879 x 905 x 1712 mm
    Machine weight: 733 kg 1098 kg 1225 kg

    Accessories

    • Zubehoer_Zufuehrfoerderband_HDS230.png
      Consumable Materials / Accessories

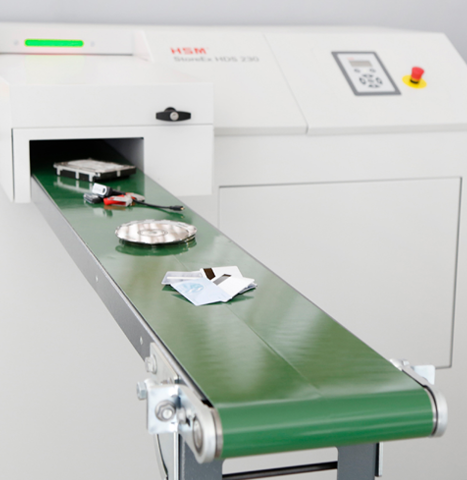

      Material feed via conveyor belt - HDS 230
