Verpackungspolstermaschinen

HSM ProfiPack P425

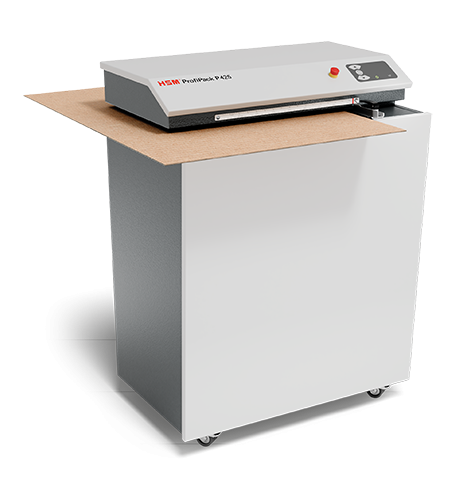

  • ProfiPack_P425_400V_Produktbild_1.png

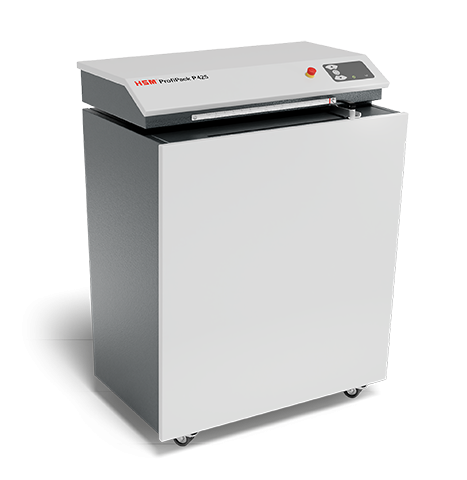

  • ProfiPack_P425_400V_Produktbild_2.png

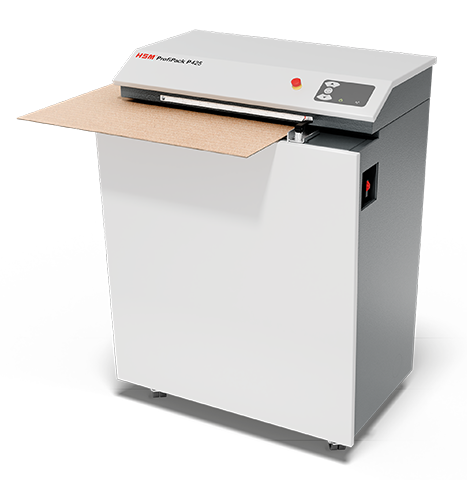

  • ProfiPack_P425_400V_Produktbild_3.png

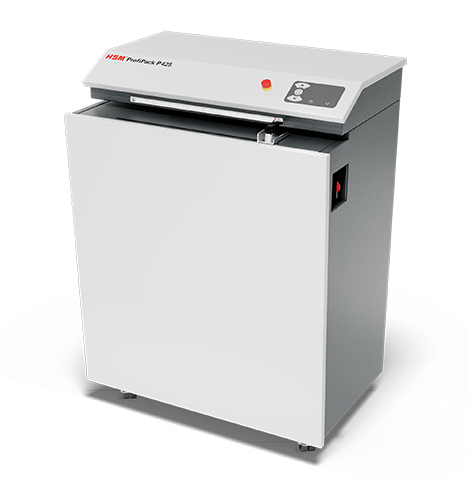

  • ProfiPack_P425_400V_Produktbild_4.png

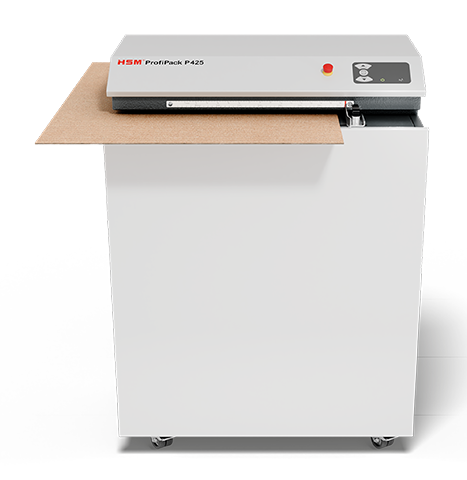

  • ProfiPack_P425_400V_Produktbild_5.png

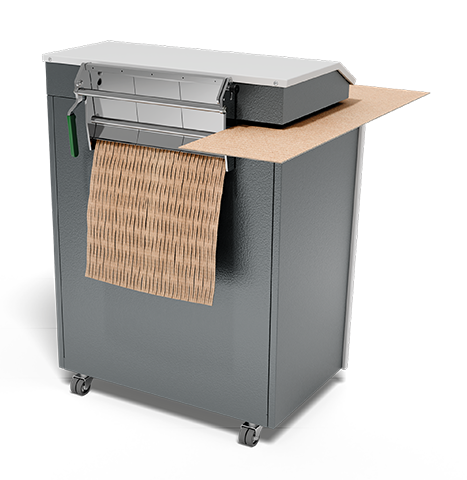

  • ProfiPack_P425_400V_Produktbild_6.png

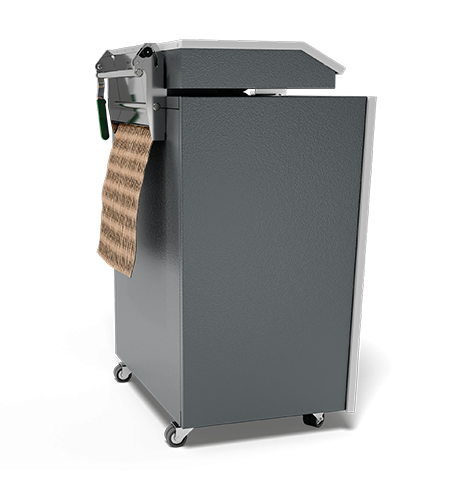

  • ProfiPack_P425_400V_Produktbild_7.png

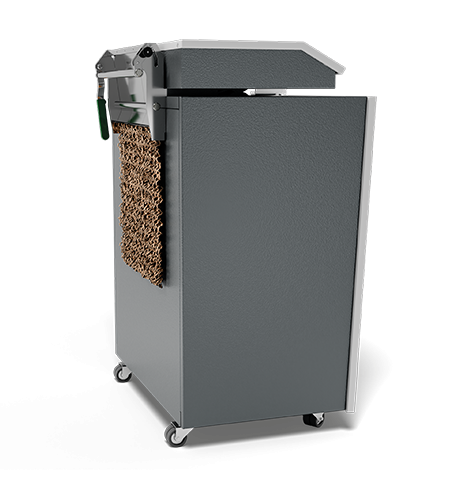

  • ProfiPack_P425_400V_Produktbild_8.png
  • ProfiPack_P425_400V_Produktbild_1.png
  • ProfiPack_P425_400V_Produktbild_2.png
  • ProfiPack_P425_400V_Produktbild_3.png
  • ProfiPack_P425_400V_Produktbild_4.png
  • ProfiPack_P425_400V_Produktbild_5.png
  • ProfiPack_P425_400V_Produktbild_6.png
  • ProfiPack_P425_400V_Produktbild_7.png
  • ProfiPack_P425_400V_Produktbild_8.png
Verpackungspolstermaschinen

HSM ProfiPack P425

Weight
425 mm
Weight
three-phase current without ground wire
three-phase current without ground wire
  • table.attributes.alternating current
  • table.attributes.three-phase current without ground wire
Standard
    Datasheet
    Request product

    Scroll to the desired section:

    Technical data References
    Please select
    blocks.contact_search.dropdown_alt

    Product highlights

    This robust and performance-optimised packaging machine is used to process a number of layers of cardboard into a padding mat or padded filling material. The professional device is mobile on steering rollers and can be used with total flexibility.

    • ProfiPack Verpackungsmaterial
      The packaging material can be used wherever required and provides an optimum protection for objects.

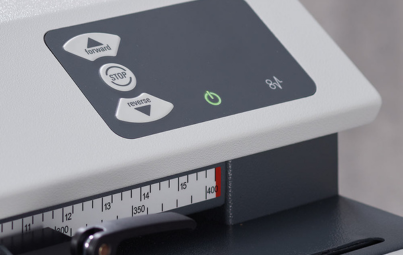

    • ProfiPack CP Bedienung (C400 P425)
      The intuitive operator control panel with LED indicators on a robust keypad signals the operating status of the device.

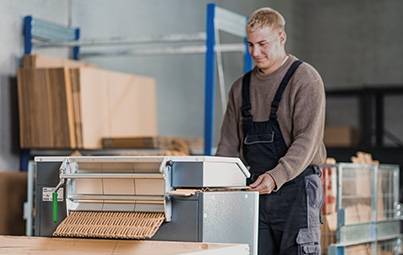

    • The efficient drive concept ensures a powerful operation at constant load.
    • The high efficiency of the drive enables a particularly sustainable operation of the device.

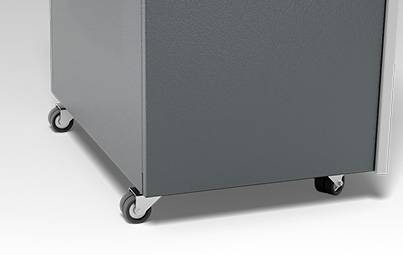

    • The device can be used on a mobile basis and has smooth-running, stable castors with a parking brake.

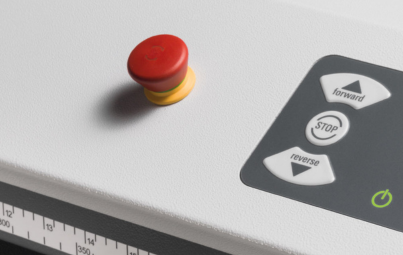

    • ProfiPack C/P Not-Aus-Schalter
      When the emergency stop switch is actuated, the device stops immediately.

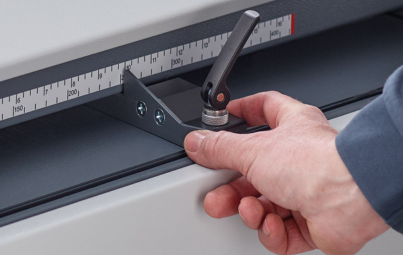

    • ProfiPack C/P Schnittbreite
      The infinitely variable adjustment of the working width with a scale allows the production of cushioning material exactly as required.

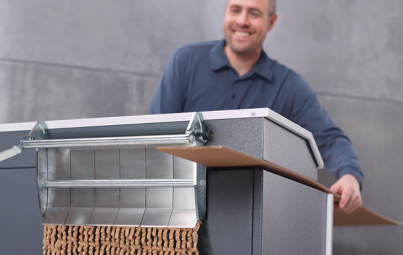

    • ProfiPack C/P Stauchungsklappe
      Depending on the application, the cushioning volume of the packaging material can be adjusted as required.

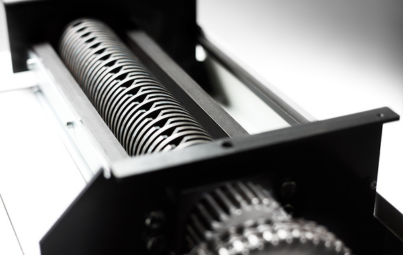

    • ProfiPack C/P Vollstahl-Schneidwellen
      The induction-hardened solid steel cutting rollers are wear-resistant against cardboard staples and guarantee durability.

    Products in comparison

    Product attributes
    HSM ProfiPack P425
    HSM ProfiPack P425
    HSM ProfiPack P425 + adapter set for dust extractor
    Order number: 1531154 1533154 1533054
    EAN: 4026631062596 4026631072731 4026631072724
    Throughput capacity: 80 kg/h 120 kg/h 120 kg/h
    Noise level (idle operation): ca. 60 - 62 dB(A) ca. 63 - 64 dB(A) ca. 63 - 64 dB(A)
    Voltage / Frequency: 220-240 V / 50-60 Hz 400 V / 50 Hz 400 V / 50 Hz
    Intake width: 425 mm 425 mm 425 mm
    Infeed height: 20 mm 20 mm 20 mm
    Power consumption: 2000 W 3800 W 3800 W
    Width x Depth x Height: 770 x 611 x 1040 mm 770 x 611 x 1040 mm 770 x 611 x 1040 mm
    Machine weight: 160 kb 181 kb 186 kb
