Horizontal balers

Product family

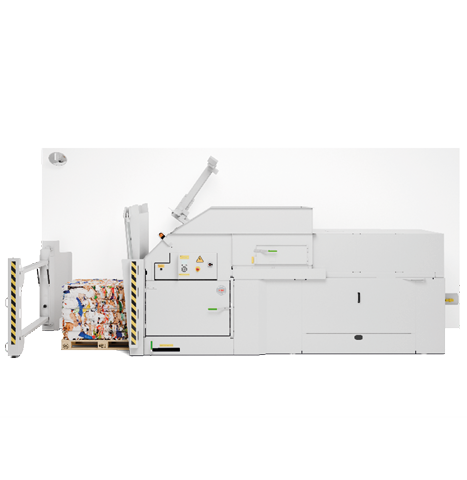

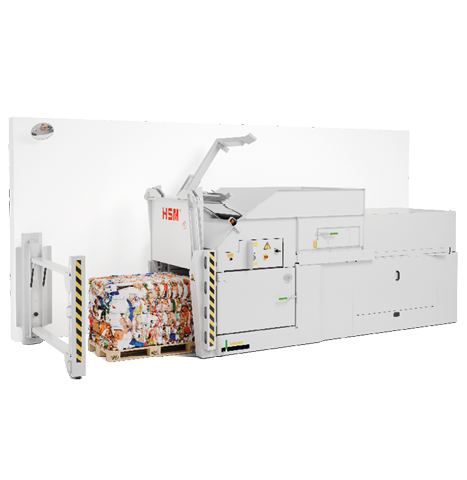

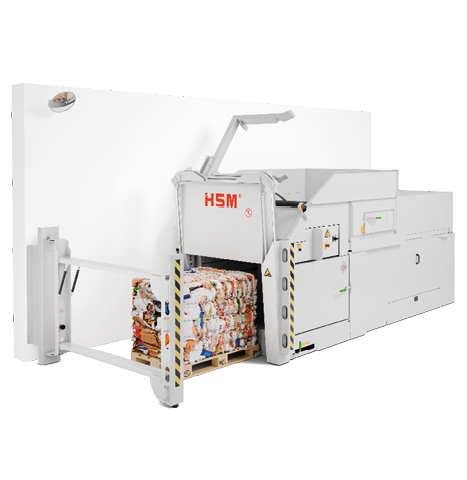

HSM HL 4809

  • HL_4809_ST_A_Produktbild_1.png
  • HL_4809_ST_A_Produktbild_2.png
  • HL_4809_ST_A_Produktbild_3.png
  • HL_4809_ST_A_Produktbild_1.png
  • HL_4809_ST_A_Produktbild_2.png
  • HL_4809_ST_A_Produktbild_3.png
Horizontal balers

Product family
HSM HL 4809

Weight
480 kN
Weight
420 kg
Method of loading
blocks.contact_search.dropdown_alt

Scroll to the desired section:

Consumable materials
Please select
blocks.contact_search.dropdown_alt

Product highlights

This very compact, horizontal working counter plate press is suitable for large disposal tasks in retail and in small to medium central storages. The HL 4809 ST produces bales with a cross-section of 1100 x 750 mm and a weight of up to 430 kg. The integrated hydraulic lifting/tilting device significantly reduces the number of people required to compact the recycling material.

  • Very low space requirement thanks to compact and sturdy design
  • HSM_HL_Display.jpg
    Intuitive, multilingual operational guidance via graphic description
  • HSM_HL_Hydraulische_Schiebetuer.jpg
    Hydraulic sliding door for bale removal ensures optimum operating convenience and safety
  • HL - Kartonage und Folie
    Suitable for cardboard as well as film
  • Suitable for continuous loading with conveyor belt or similar
  • HSM_HL_LKW-Auslastung.jpg
    High specific pressing power provides a high compaction of the material and consequently an optimum HGV load
  • HSM_HL_Palettenarretierung.jpg
    Pallet locking mechanism for safe bale removal
  • Especially large loading aperture for bulky materials
  • HSM_HL_Quick_Link_Draht.jpg
    Manual bale strapping with Quick-link wire

Technical data

Product attributes
HSM HL 4809 ST/A
Order number: 6423604
Pressing power: 480 kN
Bale weight: 420 x 420 kg
Dimensions of machine (WxDxH): 6483 x 2239 x 2042 mm
Loading aperture (WxH): 1020 x 900 mm

Consumable materials

  • Produktbild_Verbrauchsmaterial_Quick-Link-Draht.png
    Consumable Materials
    Quicklink-wire 2,45x4400 - HL 4809 ST/HL 7009
