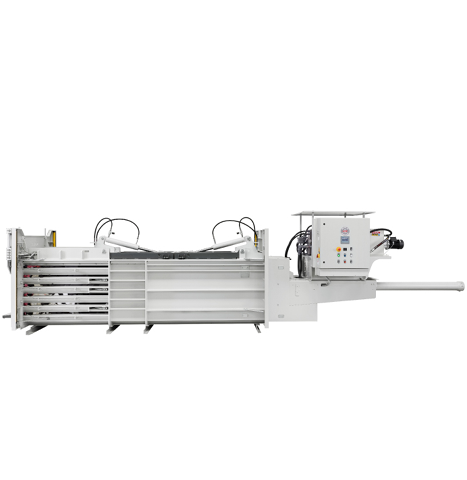

HSM HL 3521 S

Horizontal balers

Product family
HSM HL 3521 S

320 kN

600 kg

Scroll to the desired section:

Consumable materials

Product highlights

Die HSM HL 3521 S ist mit ihrer übergroßen Einfüllöffnung die optimale Maschine, wenn es um die Verdichtung großer Mengen an Papier, Kartonagen, Folien oder Verpackungsmaterialien geht und das Pressgut extrem groß und sperrig ist. Die HSM HL 3521 S ist auch der Spezialist in der Verdichtung von stark expandierendem Material wie z. B. Schaumstoff.

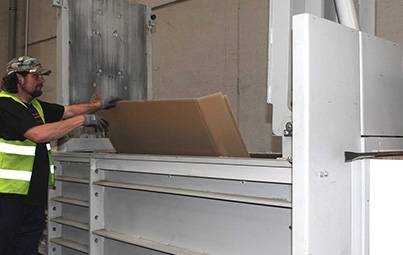

The extremely large loading aperture makes the unit simple and convenient to load

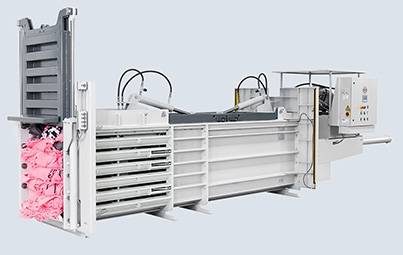

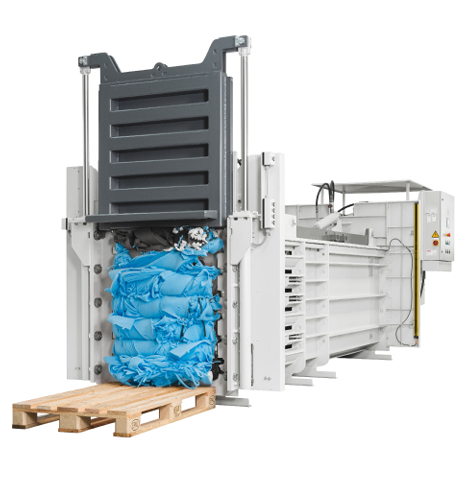

Hydraulic counterplate for bale removal ensures optimum operating convenience and safety

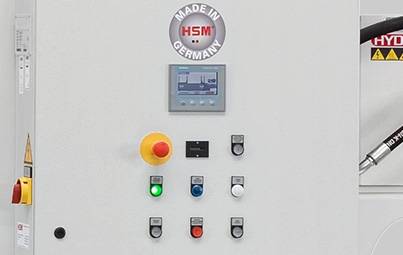

Multilingual operational guidance and Stored-program controller PLC

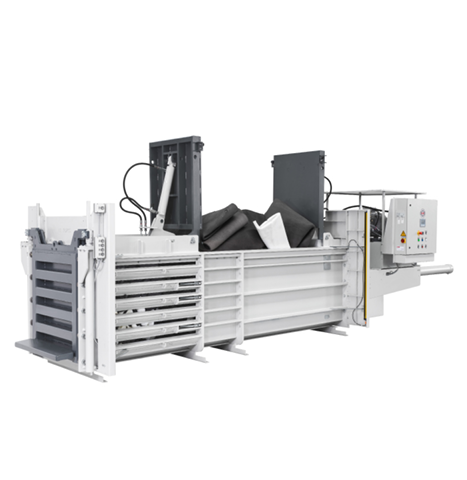

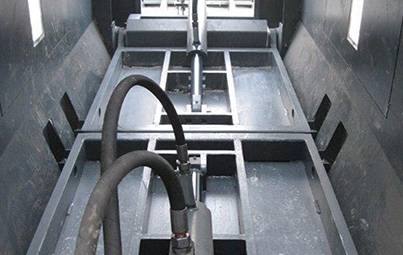

Hydraulic loading flap for maximum operating comfort

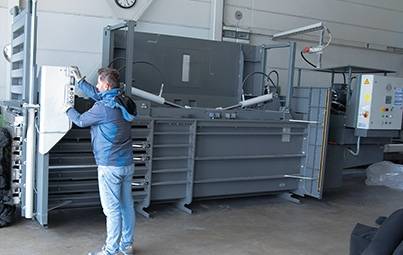

Safeguarding of the operating area with infrared light curtains for maximum operator safety

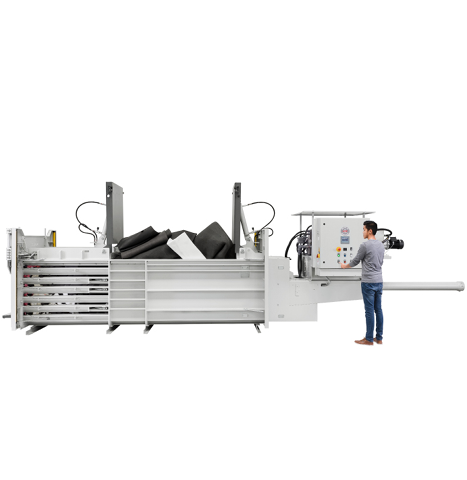

Compression of bulky materials. Suitable for: cardboard, film, foams, polystyrene, hollow vessels, metal buckets, barrels and much more

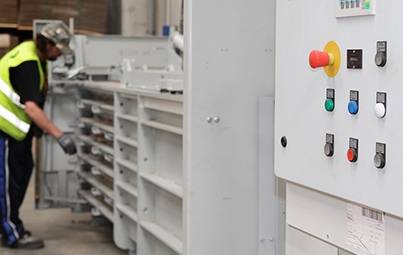

The unique design and controllable positioning of the press ram allows for easy cleaning and servicing

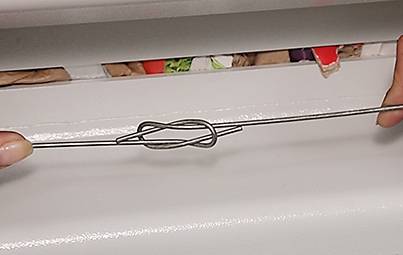

Manual bale strapping with Quick-link wire

Technical data

Product attributes	HSM HL 3521 S
Order number:	6249000
Pressing power:	320 kN
Maximum bale weight:	600 kg
Dimensions of machine (WxDxH):	7900 x 1660 x 2485 mm
Loading aperture (WxH):	800 x 2100 mm

Consumable materials

Consumable Materials

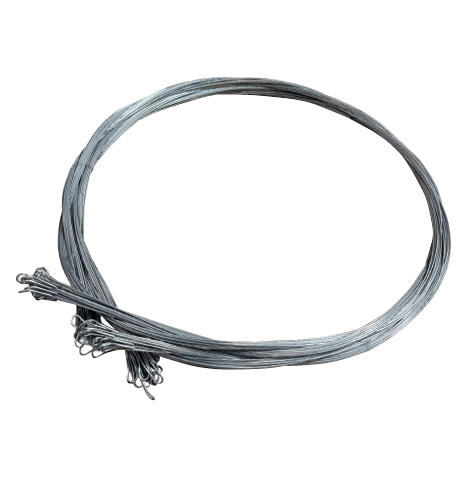

Quicklink-wire 2,95x3800 - HL 3521 S
