HSM VK 5016

Channel baling presses

500 kn

1100 x 750 mm

Scroll to the desired section:

For professional disposal management or larger industrial applications – with high throughput rates up to approx. 485 m³/h

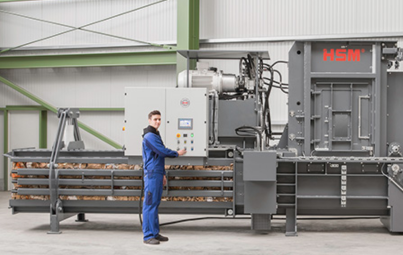

With large loading aperture for optimised feeding methods (1600 mm length)
Fully automatic 5-fold strapping for optimal bale result also with expansive materials
Available as an option with frequency-regulated drive – saves 40 % of the energy used by standard drives
Control of the pressing process via light barrier. Suitable for continuous loading with conveyor belt, air feeding or similar
Suitable for cardboard, plastic film and compressing DSD goods, UBC as well as PET bottles (other materials on request)
Versatile solution for materials up to approx. 50 kg /m³ bulk weight
Optimally adjusted software for different materials guarantees high bale quality even when material is frequently changed

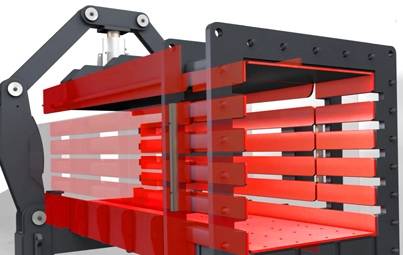

Solid steel construction with highly wear resistant steel parts inside the press chamber and press channel

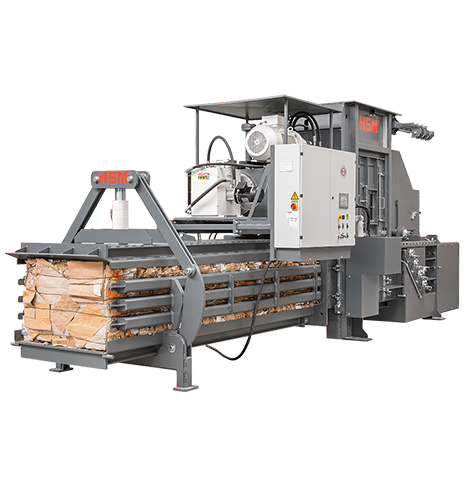

Product attributes	HSM VK 5012	HSM VK 5016	HSM VK 6015
Order number:	6461002	6462003	6442004
Pressing power:	500 kn	500 kn	720 kn
Bale weight:	300 x 480 kg	- x - kg	260 x 470 kg
Bale size (LxWxH):	1100 x 750 mm	1100 x 750 mm	750 x 750 mm
Strapping:	4	4	4

Consumable Materials

Strapping wire 3,4 mm 40 Kg - VK 120/VK 150/VK 50/VK 60/VK 62/VK 72/VK 88
