Product family
HSM VK 4812 P

Channel baling presses

480 kn

450 kg

Scroll to the desired section:

For industrial applications with small material loads - Troughput up to approx. 204 m³/h

Can be fully integrated into existing workflows and processes. Operating side can be selected
Very low space requirement thanks to compact and sturdy design

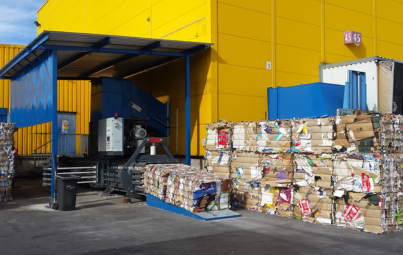

Integration into automated industrial production processes
High compression and bale weights
Suitable for continuous loading with conveyor belt, air feeding or similar
Control of the pressing process via light barrier
Particulary suitable for compression of PET bottles
Versatile solution for materials up to approx. 60 kg /m³ bulk weight
Suitable for almost all requirements. Contact us if you have other materials or applications. We will find you a suitable solution.

Product attributes	HSM VK 4812 V	HSM VK 4812P	HSM VK 5012
Order number:	6400001	6460001	6461000
Pressing power:	480 kn	480 kn	500 kn
Bale weight:	300 x 450 kg	300 x 450 kg	300 x 480 kg
Bale size (LxWxH):	1100 x 750 mm	1100 x 750 mm	1100 x 750 mm
Strapping:	4	4	4

Consumable Materials

Strapping wire 3,4 mm 40 Kg - VK 120/VK 150/VK 50/VK 60/VK 62/VK 72/VK 88
