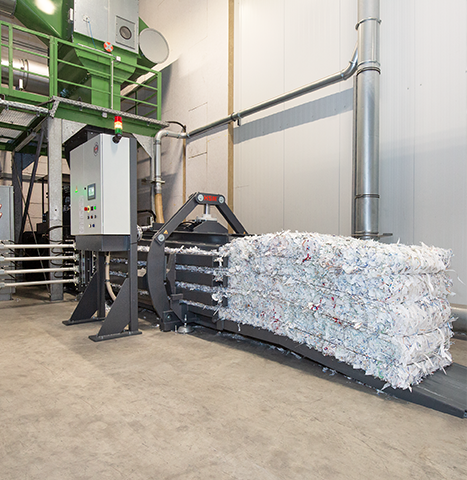

HSM VK 4208

Channel baling presses

420 kn

420 kg

700 x 800 mm

Scroll to the desired section:

For industrial applications with small material loads - Troughput up to approx. 216 m³/h

Can be fully integrated into existing workflows and processes. Operating side can be selected
Fast cycle times, 800 mm loading aperture
Suitable for continuous loading with conveyor belt, air feeding or similar
Integration into automated industrial production processes
High compression and bale weights
Control of the pressing process via light barrier
Suitable for compressing paper, cardboard, shredded material and plastic film
Versatile solution for materials up to approx. 60 kg /m³ bulk weight
Suitable for almost all requirements. Contact us if you have other materials or applications. We will find you a suitable solution.

Product attributes	HSM VK 3012	HSM VK 4208	HSM VK 4212
Order number:	6645001	6646001	6647000
Pressing power:	310 kn	420 kn	420 kn
Bale weight:	190 x 350 kg	220 x 420 kg	220 x 420 kg
Bale size (LxWxH):	700 x 800 mm	700 x 800 mm	700 x 800 mm
Strapping:	4	4	4

Consumable Materials

Strapping wire 2,8 mm 40 Kg - VK 12/VK 23/VK 30/VK 42
