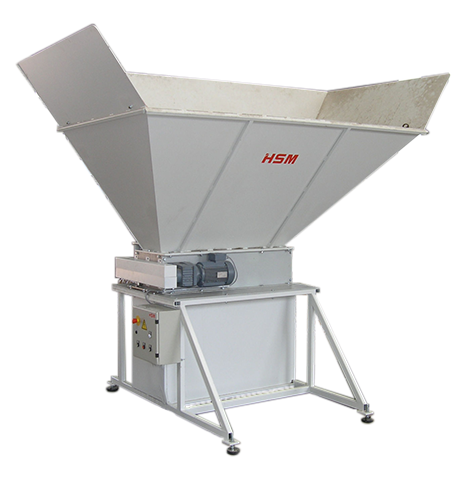

HSM PF 1200

PET Perforators

HSM PF 1200

1200 mm

75000

1560 x 1200 x 500 mm

8 kW

Datasheet

Request product

Product highlights

The high-performance HSM perforators perforate PET bottles prior to being compressed. In the compression that follows, this pre-processing of the material ensures optimum compact bales. The perforators HSM PET PF 600-4 and PF 1200-4 have very high throughput capacities with excellent price/performance ratios and complete the HSM range of disposal systems.

Throughput per hour up to 75 000 PET bottles (1 litre)
Ideal as an option for the HSM VK- / AK channel baling presses or alternatively as an independent system

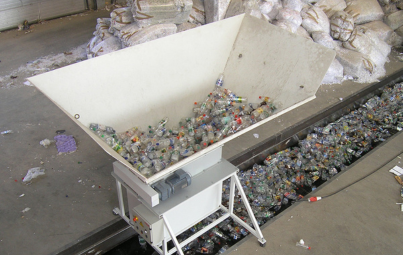

Applicable for all systems using underframe and hopper with conveyor-belt, also possible for retrofitting to existing systems
Perforation of empty and/or full plastic bottles (max. approx. 2.5 litre) is possible, with or without caps

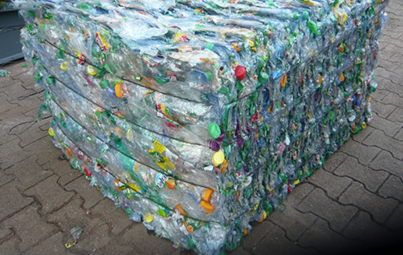

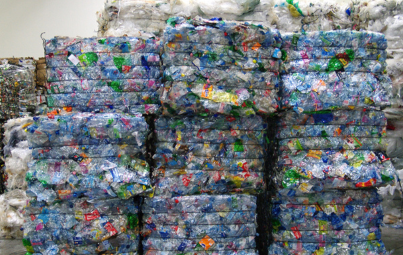

Perforation of the plastic bottles achieves optimum compression for reduced transport and storage costs

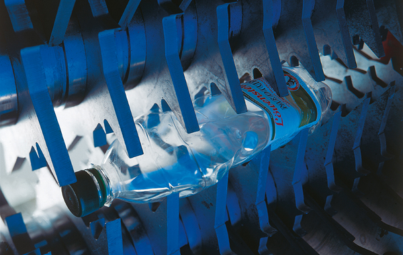

Sturdy cutting unit – will handle the occasional glass bottle
Perforator may be mounted in a loading chute, moved manually or automatically / hydraulically to allow compression of alternative materials which do not need perforation

Products in comparison

Product attributes	HSM PF 600	HSM PF 1200
Order number:	1776000	1775000
Working width:	600 mm	1200 mm
Throughput per hour PET bottles (1 litre):	37500	75000
Dimensions of machine (WxDxH):	990 x 1200 x 500 mm	1560 x 1200 x 500 mm
Driving power:	6 kW	8 kW
