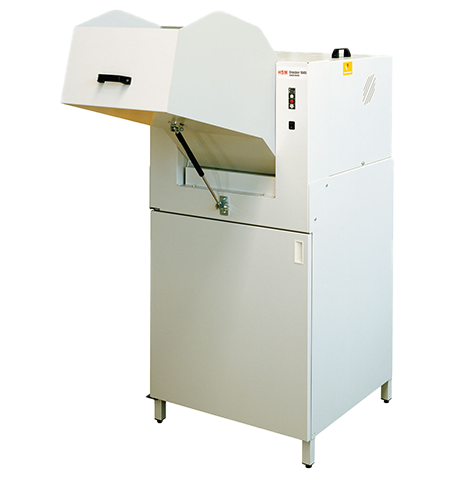

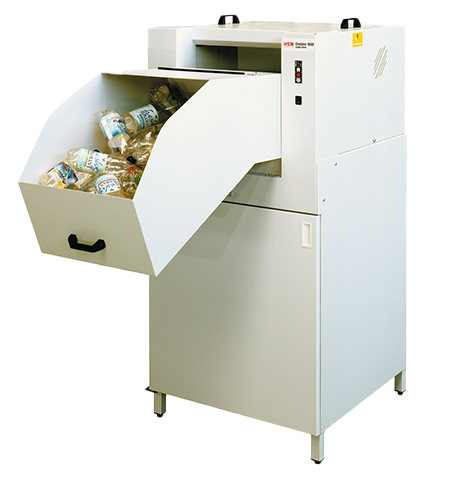

HSM Crusher 1049 SA

PET-Crusher

HSM Crusher 1049 SA

2400

490 mm

793 x 1751 x 2037 mm

290 l

Datasheet

Request product

Scroll to the desired section:

Consumable materials

Product highlights

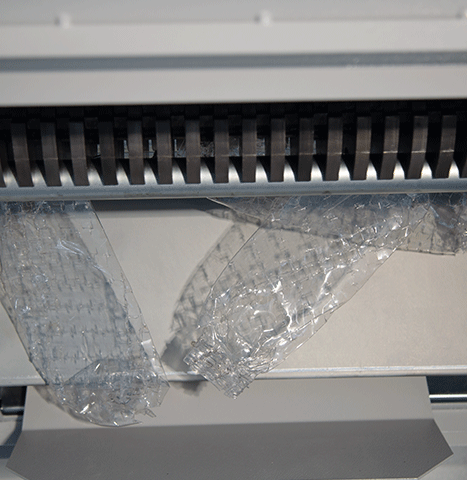

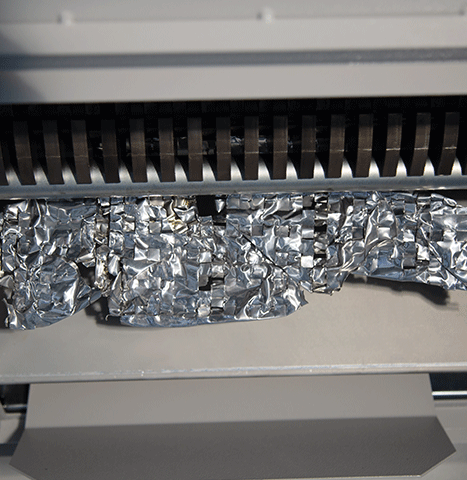

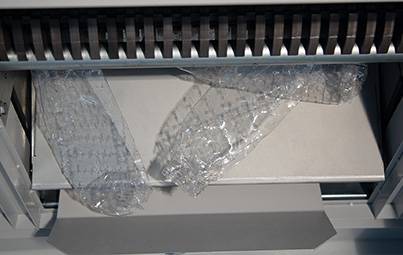

As a result of the HSM solution, the space required for returned empties is reduced to approx. 25-30 % of the original volume and as such, also reduces the time required for disposal. The special roller system perforates and crushes the containers. The sidewalls mesh into each other, making the reduction in volume permanent. Crushing has an additional advantage: deposit plastic bottles and cans are reliably invalidated.

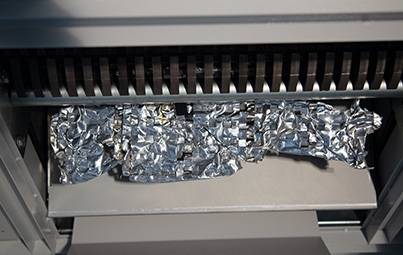

A scraper system removes the compressed plastic bottles and cans from the crusher rollers to prevent blockages and downtime while clearing

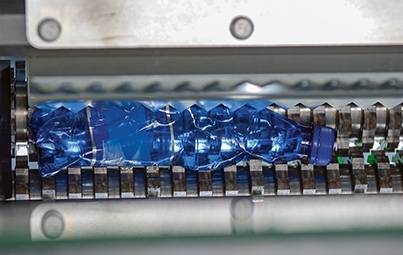

A dosing shaft with integrated blades ensures that the plastic bottles and cans are fed reliably

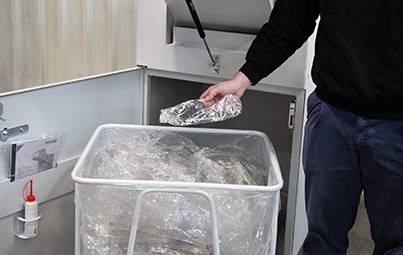

Throughput per hour up to 2400 PET bottles (1 litre)

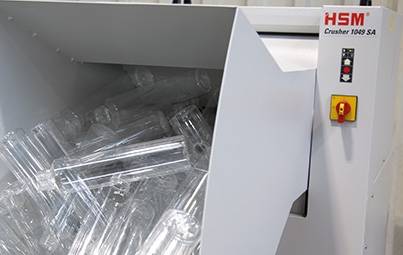

Automatic switch off after two minutes to save energy - available for continuous operation

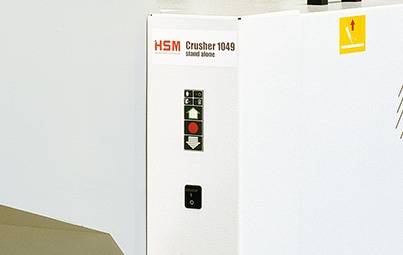

Manual control of the machine via easy-to-use keypad with forward, reverse and stop functions

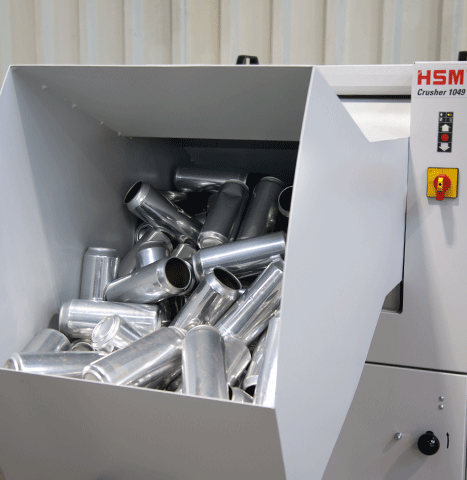

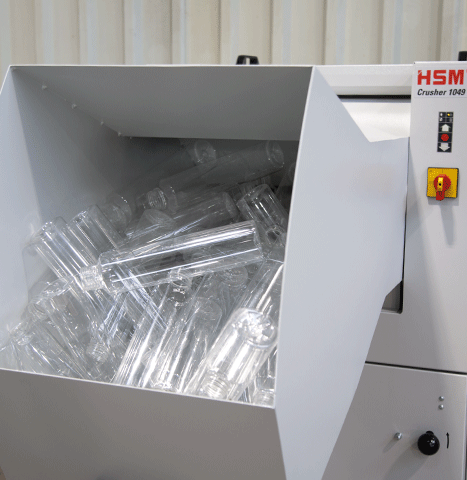

An efficient system for the volume reduction of PET bottles and cans down to 1/3 or 1/4 of the original

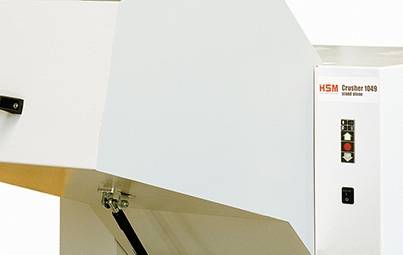

LED display provides information on the current status of the machine (ready, overload, door open, container full)
The cutting head can also be used in combination with a deposit return machine

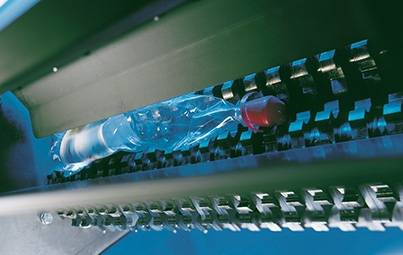

Crusher rollers made of specially hardened and ground steel, completely resistant to wear and very strong, for a long service life

Products in comparison

Product attributes	HSM Crusher 1049 SA	HSM Crusher 1049 SA
Order number:	1692141	1697124
Throughput per hour PET bottles (1 litre):	2000	2400
Working width:	490 mm	490 mm
Dimensions of machine (WxDxH):	793 x 1751 x 2037 mm	793 x 1751 x 2037 mm
Container volume / collecting:	290 l	290 l

Consumable materials

Consumable Materials / Accessories

reusable collecting bag 25 pcs. - 1049 SA/450.2/P44i
