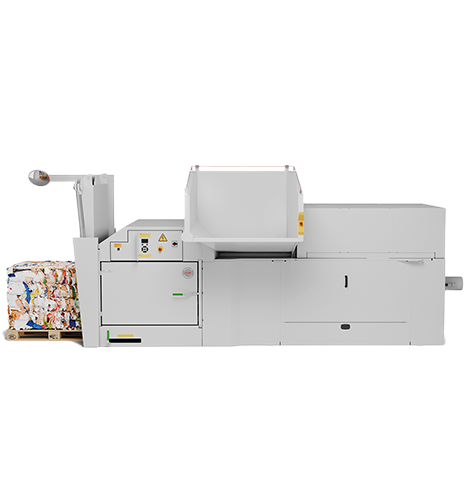

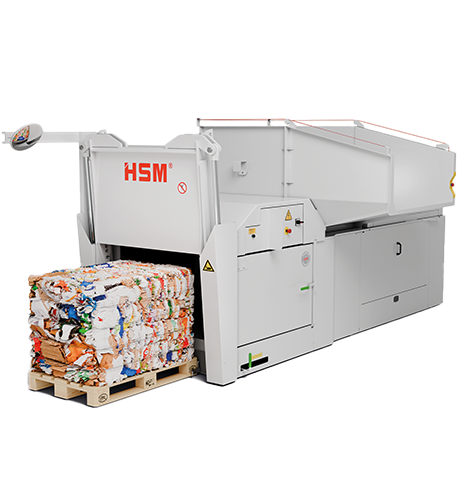

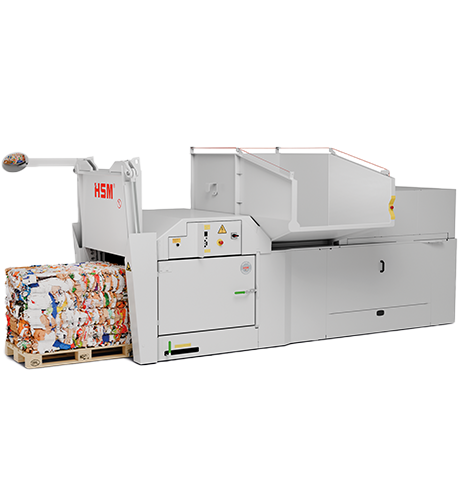

HSM HL 4809 ST

Horizontal balers

HSM HL 4809 ST

480 kN

420 kg

4795 x 2534 x 2208 mm

890 x 1020 mm

Datasheet

Request product

Scroll to the desired section:

Consumable materials

Product highlights

This very compact, horizontal working counter plate press is suitable for large disposal tasks in retail and in small to medium central storages. The HL 4809 ST produces bales with a cross-section of 1100 x 750 mm and a weight of up to 430 kg. The integrated hydraulic lifting/tilting device significantly reduces the number of people required to compact the recycling material.

Very low space requirement thanks to compact and sturdy design
Intuitive, multilingual operational guidance via graphic description
Hydraulic sliding door for bale removal ensures optimum operating convenience and safety
Suitable for cardboard as well as film
Suitable for continuous loading with conveyor belt or similar
High specific pressing power provides a high compaction of the material and consequently an optimum HGV load
Pallet locking mechanism for safe bale removal
Especially large loading aperture for bulky materials
Manual bale strapping with Quick-link wire

Technical data

Product attributes	HSM HL 4809 ST
Order number:	6423904
Pressing power:	480 kN
Bale weight:	420 x 420 kg
Dimensions of machine (WxDxH):	4795 x 2534 x 2208 mm
Loading aperture (WxH):	890 x 1020 mm

Consumable materials

Consumable Materials

Quicklink-wire 2,45x4400 - HL 4809 ST/HL 7009
