Horizontal baling presses
powerful for many types of material
The HSM HL series of horizontal baling presses are optimally suited for the efficient compression of a wide variety of materials. Whether paper, cardboard, and foils or strongly expanding materials such as foams and polystyrene, our presses ensure maximum compression. Hollow bodies/rigid packaging, metal buckets, textiles and even car tyres can be reliably pressed.
Horizontal baling presses – space-saving, efficient pressing
Thanks to the generous loading aperture and the automatic return stroke of the press ram, they are straightforward to operate. The strapping system with continuous polyester tape or strong Quicklink wire ensures compact bales and a reduction in volume of up to 95 %. Perfect for recycling and space-saving storage.

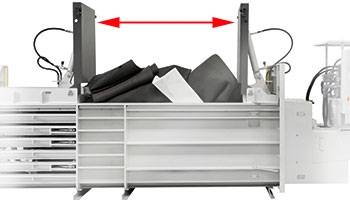

Large Loading Aperture
- High throughput due to large loading aperture and short cycle times
- Manual loading or via wheel loader (HL 1615 /HL 3521)
- Loading possible via lifting/tilting device for disposal carts or large waste containers, bevelled hopper or loading conveyor (HL 4809 / 7009)

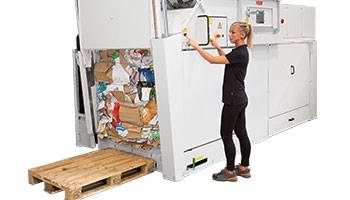

Automated Bale Ejection
- The bale is completely ejected after a full stroke of the press ram
Bale Ready
- Easy strapping with strapping tape

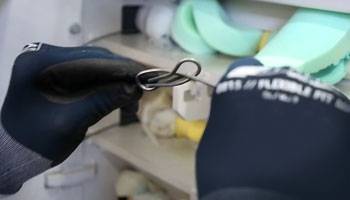

- Time-saving and particularly stable binding with Quicklink wire
(Depending on model/material)
High Degree of Operator Safety
- The pressing process starts after the loading flaps have been closed manually (HL 1615)
- Safe two-hand operation to start the pressing process (HL3521, HL4809, HL7009)

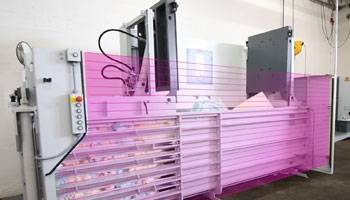

- A light barrier stops the system if the safety area is entered (HL 3521, optional on HL 4809, HL 7009)

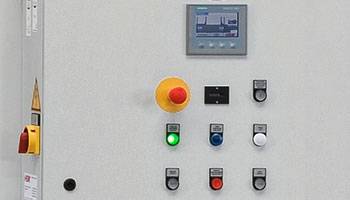

Simple Operation
- Intuitive, mulilingual operational guidance via graphics
Overview of horizontal baling presses

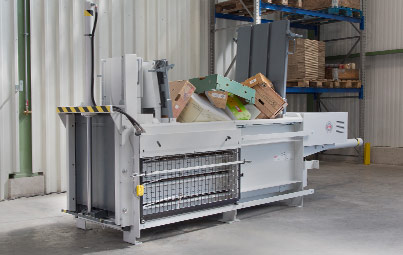

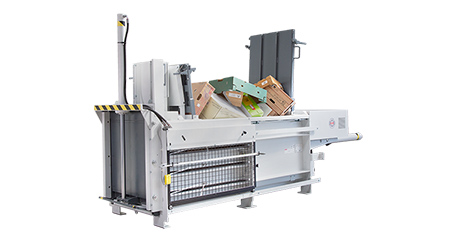

HSM HL 1615:
Compact horizontal baling press for many applications
The horizontal baling press HL 1615 reliably compresses paper, cardboard, foils as well as robust materials such as paint buckets. Thanks to the stable press plate guide and two differently sized filling flaps, it is ideal for a wide range of applications – even with bulky or unevenly loaded material.
For flexible tasks whilst taking up only a little space.
150 kN
200 kg

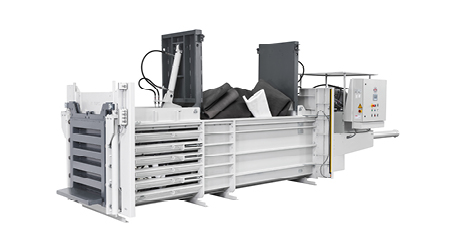

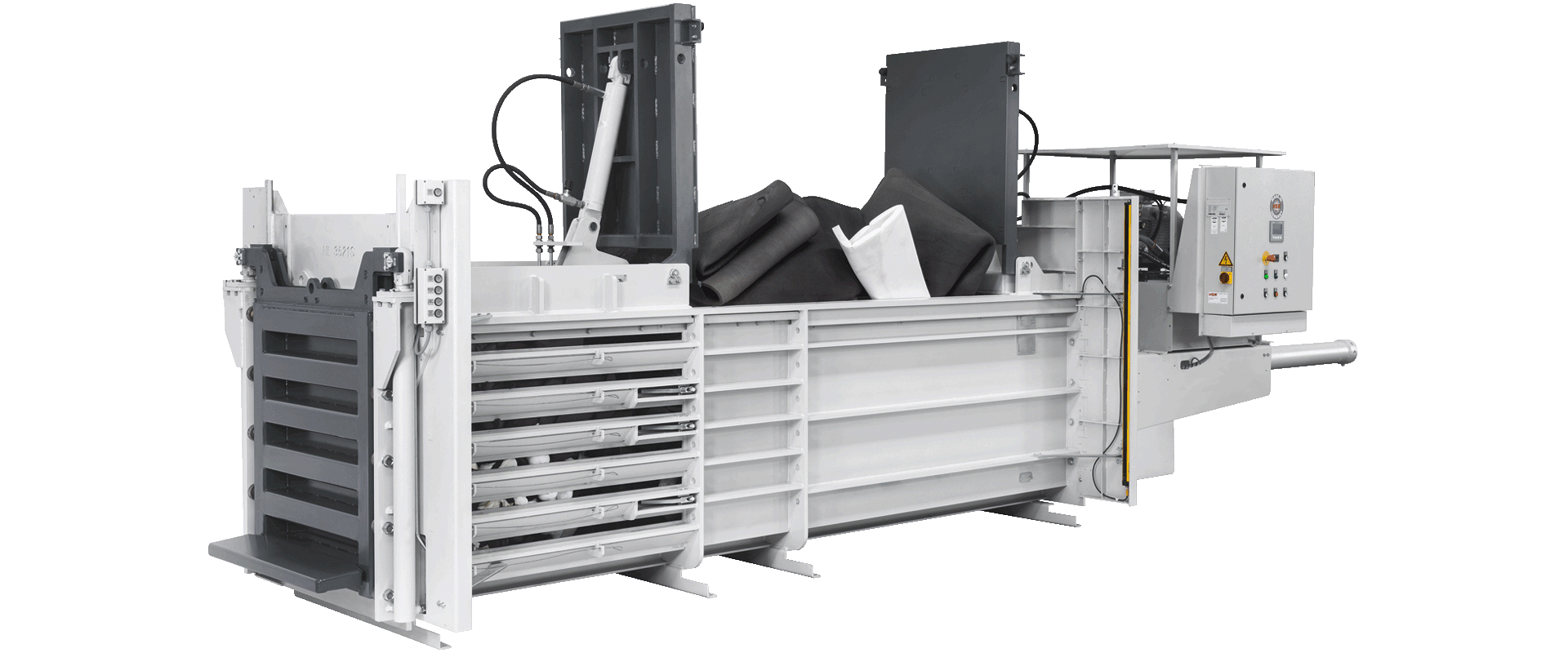

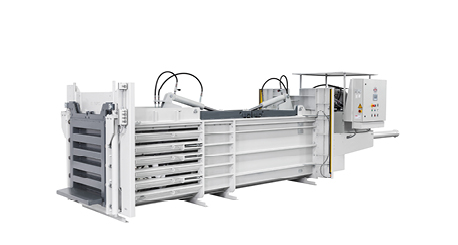

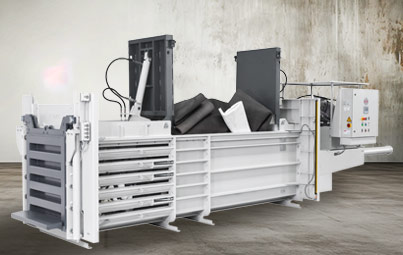

HSM HL 3521 S and T:
The all-rounder for compressing strongly expanding materials
The HSM HL 3521 S and T are ideal for compressing strongly expanding materials such as foams, textiles and car tyres. With their optimised performance, both models offer a reliable solution for the effective compression of a wide variety of materials – from foils, mixed papers, cardboard, chads, big bags, hollow products and plastic bottles to polystyrene.

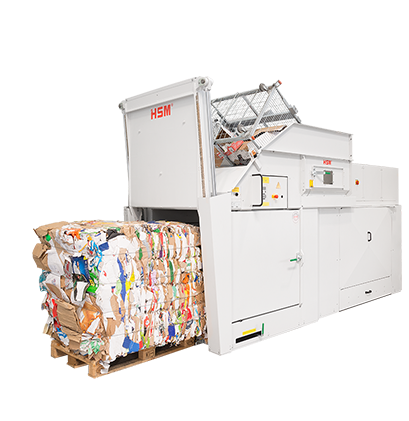

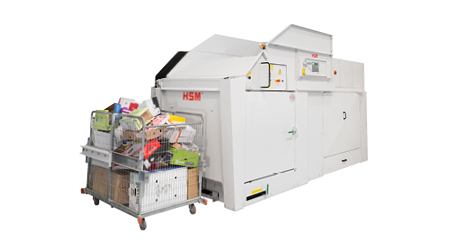

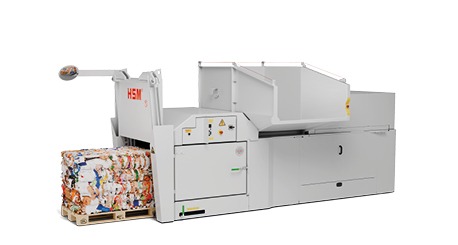

HSM HL 4809 / HL 7009:
Efficient, save costs and time thanks to automatic loading
The horizontal baling presses with automatic loading or bevelled hopper offer an efficient solution for compressing material – also when loaded continuously. With the integrated hyraulic lifting/tilting device, the loading process is fast, simple and safe, minimises the staff requirement and saves valuable working time.
The high pressing power results in bales of up to 600 kg which enables an optimum HGV load and therefore optimizes your logistic processes. Benefit from this powerful, cost-saving technology and increase your efficiency!
Our customers – our best recommendation
More revenue, lower costs – this is how baling pays off
In the production of our high-quality upholstered furniture, large quantities of foam offcuts are generated daily during foam processing. We now compress these with the new HSM HL 3521 S in significantly less time than before. Thanks to the simple and intuitive operation of the HSM press and the use of Quick-Link wire, we were able to considerably reduce setup costs. The bales weigh between 350 and 400 kg and therefore contain up to 50% more material than before.
This makes selling the bales more profitable and saves costs for storage and transport.
Christian Huber
Deputy Head of Foam Processing Department
