HSM HL 7009

Scroll to the desired section:

Product highlights

This very compact, horizontal working counter plate press is suitable for large disposal tasks in retail and in small to medium central storages. The bales from a HL 7009 have a cross-section of 1100 x 1100 mm and a bale length of 1200 mm up to 600 kg in weight and therefore achieve an optimum HGV capacity. With the large bales from the HL 7009, you also save on handling expenses. The integrated hydraulic lifting/tilting device significantly reduces the number of people required to compact the recycling material.

Convenient filling via hydraulic lifting/tilting device
Very low space requirement thanks to compact and sturdy design
Also available as a variant with automatic start
Intuitive, multilingual operational guidance via graphic description

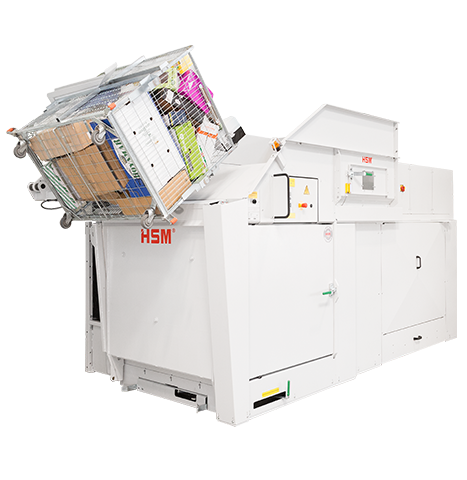

Convenient and particulary fast loading via hydraulic lifting/tilting device

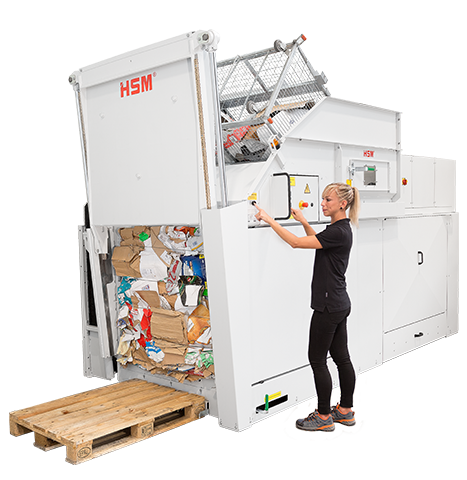

Hydraulic sliding door for bale removal ensures optimum operating convenience and safety
Suitable for cardboard as well as film
High specific pressing power provides a high compaction of the material and consequently an optimum HGV load
Pallet locking mechanism for safe bale removal
Manual bale strapping with Quick-link wire

Technical data

Product attributes	HSM HL 7009
Order number:	6336124
Pressing power:	700 kN
Bale weight:	600 x 600 kg
Dimensions of machine (WxDxH):	5992 x 2060 x 2394 mm
Loading aperture (WxH):	1020 x 900 mm

More Volume efficiently compressed

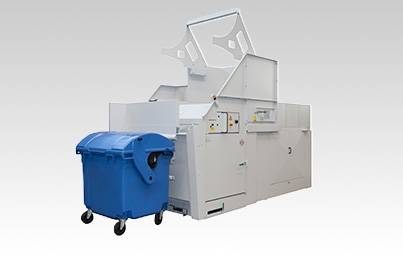

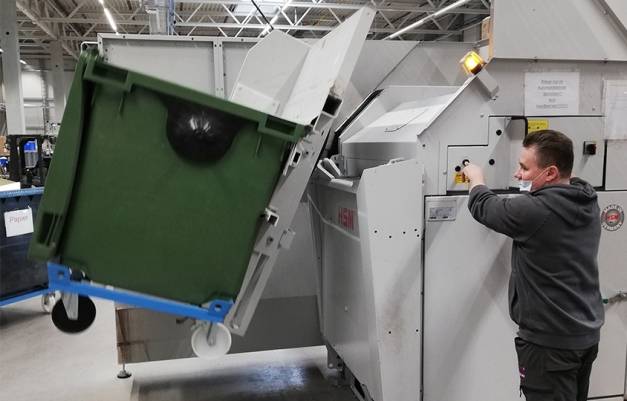

Since the HSM baling press fulfills our requirements so well and offers an integrated waste bin receptacle, we were able to integrate the trolley-transport of the cardboard into our intralogistics using a tugger train. We therefore save unnecessary trips and gain valuable time.
