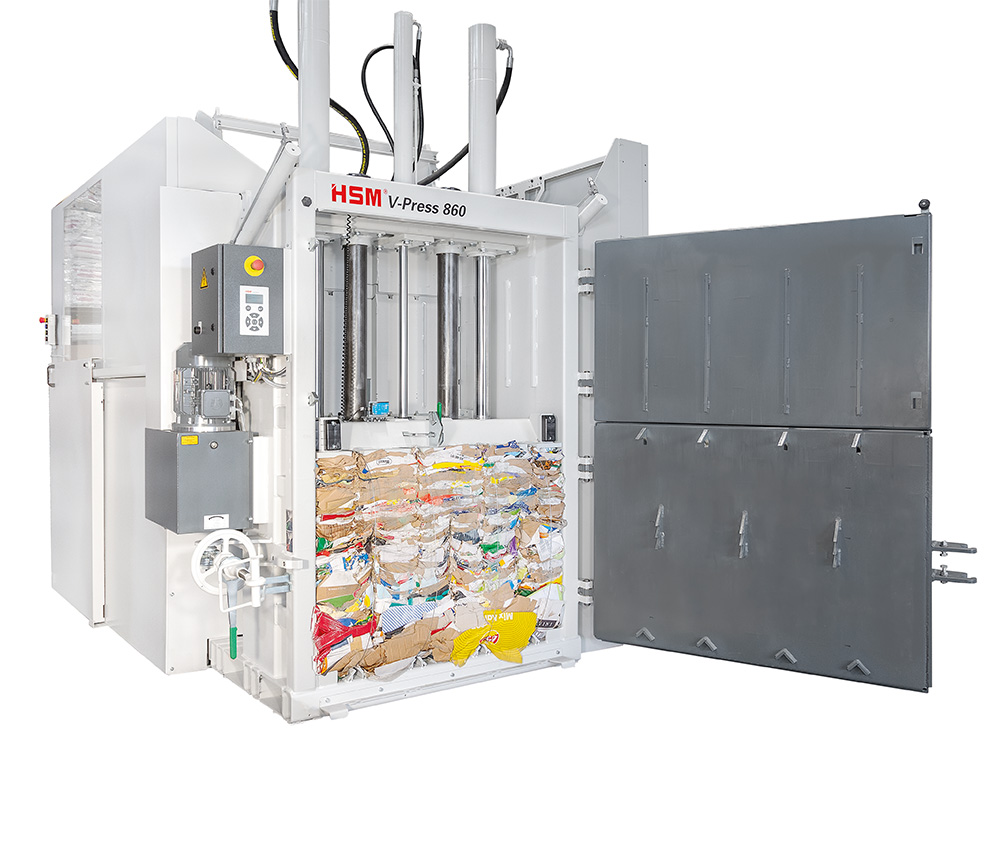

HSM V-Press 860 TimeSave vertical baling press

In addition to the well-known advantages of the V-Press series, the HSM V-Press 860 TimeSave has a decisive added-value factor: signficant savings in time with less staff needed for the task. Thanks to the time-saving lifting/tilting device, it only takes a few seconds to load the HSM V-Press 860 TimeSave using a collection cart.

Saves up to 1.5 h per bale compared to other vertical baling presses with automatic loading. Each cart is emptied within 12 seconds
V-Press - Zeitersparnis 1,5 h TS
Saves up to 5.0 h per bale compared to other vertical baling presses with manual loading
V-Press - Zeitersparnis 2,0 h TS
Convenient and particulary fast loading via hydraulic lifting/tilting device
V-Press - Hydraulische Hub-Kipp-Vorrichtung TS
The HSM V-Presses are highly energy efficient thanks to the rapid stroke technology. This saves time and money
V-Press - Eilgang
Automatic start of the pressing process after closing the door
V-Press - Automatikstart
Optimised bale dimensions and bale weights for efficient storage, transport and dierct commercialisation
V-Press - Ballen
Convenient membrane keypad with text display, which shows the current status of the machine
V-Press - Display
HSM TCS (Torsion Control System) for monitoring press ram movement
V-Press - TCS
Manual 4-fold strapping with Quick-link wire
V-Press - Umreifung Quick-Link-Draht
Technical data "HSM V-Press 860 TimeSave"
Order number: 6155304A
EAN: 4026631075343
Pressing power: 594 kN
Specific pressing power: 63,46 N/cm²
Driving power: 7,0 kW (4+3 kW)
Voltage / Frequency: 400 V / 50 Hz
Volume throughput in idle operation (theor.): 26,25 m³/h
Bale length x Bale width x Bale height: 1200 x 780 x 1200 mm
Bale weight (up to): 430 kg
Method of loading: Automatic lifting/tilting system, wire mesh cart
Width x Depth x Height: 2202 x 3584 x 3004 mm
Weight: 3680 kg
Method of strapping: vertical
Number of strappings: 4
Type of consumables: Quick link wire
Industry type: Industry & Manufacturing, Retail, Recycling & Disposal, Logistics & Distribution, Print & Packaging
Press material: Mixed paper, Cardboard
