The high quality materials and proven HSM "Made in Germany" quality guarantee you are receiving a safe and durable machine.
Three-stage fully automated shredding system.
Stage 1: pre-shredding using a four-shaft system consisting of two intake shafts and two cutting shafts.
Stages 2 and 3: fine shredding using a two-shaft system.
Can be used as a complete disposal system in combination with an HSM balling press.
The entire system is controlled automatically.
Maximum speed due to the optimum coordination of the cutting unit. Designed with economical start up operation and overload protection through a frequency inverter.
Sturdy loading hopper with built-in overloading protection to control the shredder and the conveyor belt.

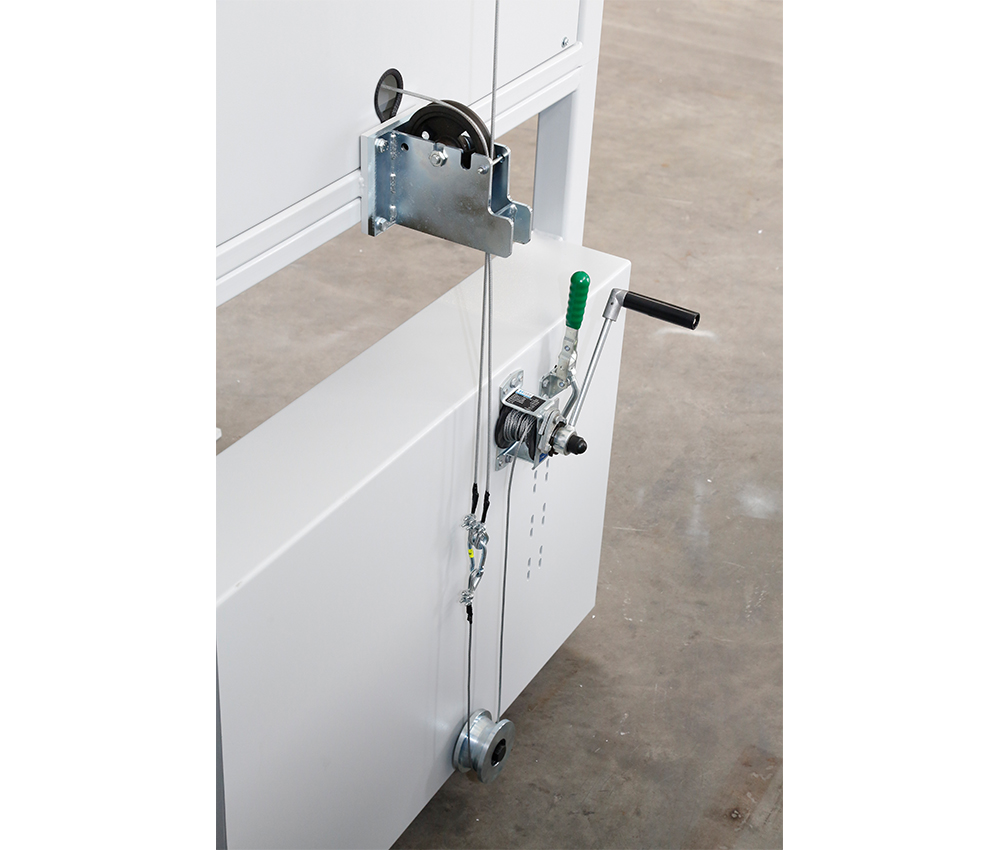

Optional mit mechanischer Ausfahrmechanik für 2. und 3. Shredderstufe, um den gewünschten Zerkleinerungsgrad einzustellen.

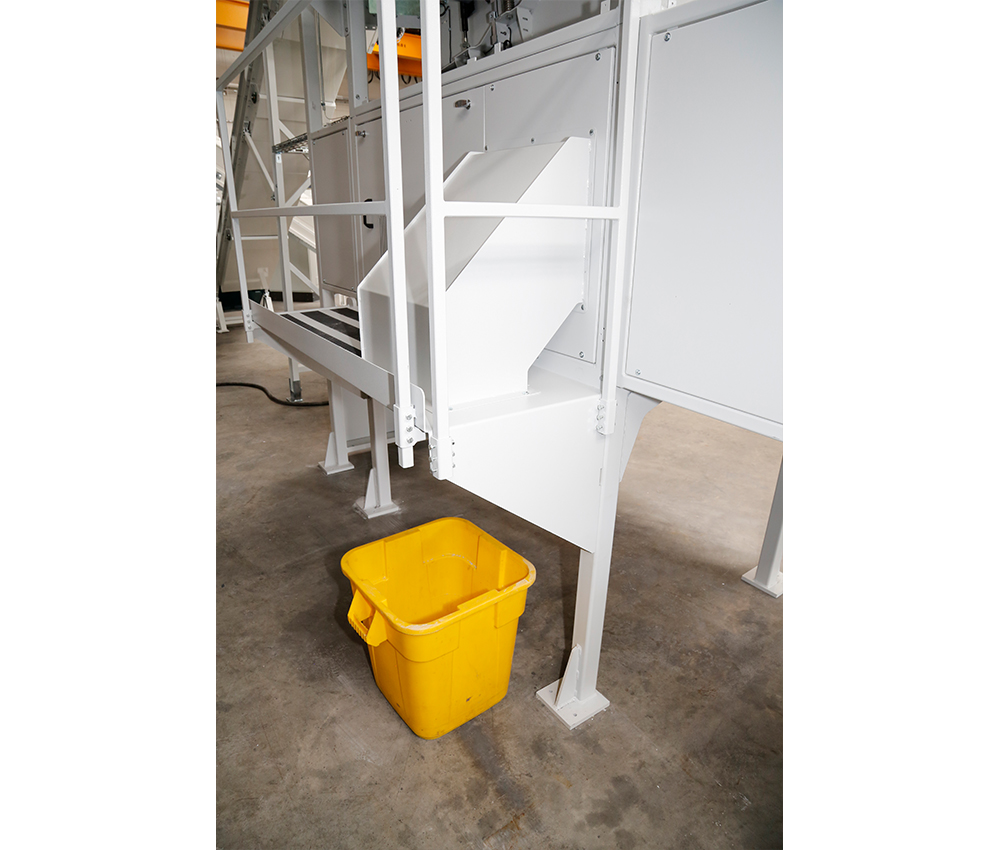

Optional mit Metallabscheider.
Modern PLC control unit for integrated control of all system components.
The material can be loaded with a conveyor belt or discharge chute.
Reliably shreds whole lever arch files and telephone books.
Other loading options on request.
Equipped as standard with energy saving frequency-regulated drive.
Robust frame construction with service and maintenance doors.
System compatible with HSM fully automatic baling systems.
System compatible with optional baling press model HSM KP 88.
Automatic stop and reverse when jammed.
Light barrier monitors filling level between stages to prevent overloading.
Technical data "HSM TriShredder 6060 - 7.5 x 40-80 mm"
|Cutting type:||particle cut|
|Cutting width:||7,5 mm|
|Particle length:||40 - 80 mm|
|Security level (DIN 66399):||E-2|O-2|P-3|T-3|
|Throughput capacity paper:||2500 kg/h|
|Intake width:||650 mm|
|Schutzklasse DIN 66399-2:||2 - hoch, 1 - gering|
|Shredder material:||Paper, Staples and paper clips, Credit card, Folders, USB sticks|
