HSM V-Press 610 vertical baling press

The HSM V-Press 610 reduces the volume of cardboard or foils in an economical way.

To fill the press, the upper half of the doors is swung to the right
V-Press 605/610 - Doppeltüre
Hand wheel door lock - Easy to handle thanks to counter-rotating thread for quick opening and closing
V-Press - Handrad
HSM TCS (Torsion Control System) for monitoring press ram movement
V-Press - TCS
Automatic start of the pressing process after closing the door
V-Press - Automatikstart
Convenient membrane keypad with text display, which shows the current status of the machine
V-Press  - Display

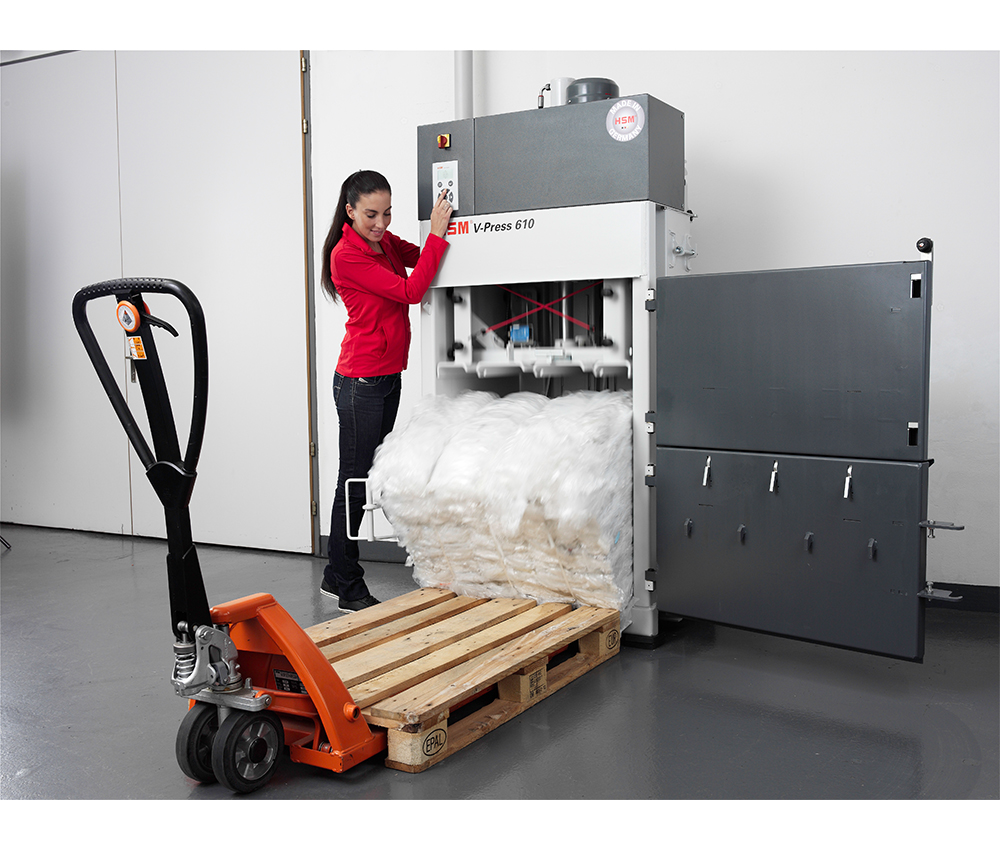

Special retaining claws optimize the compression of the pressing material and reduce the number of loading actions
V-Press 605/610 - Rückhaltekrallen
Suitable for cardboard as well as film
V-Press - Verpresst Kartonage/Folie
Bale strapping with polyester tape
V-Press - Umreifung Polyesterband
Technical data "HSM V-Press 610"
Order number: 6110154
EAN: 4026631056243
Pressing power: 120 kN
Specific pressing power: 25 N/cm²
Driving power: 3 kW
Voltage / Frequency: 400 V / 50 Hz
Cycle time when idling vacío: 22 s
Loading height: 655 mm
Volume throughput at 20kg/m³ (theor.): 0,05 t/h
Loading aperture width x height: 800 x 495 mm
Bale weight: 100 Kg
Width x Depth x Height: 1198 x 823 x 1986 mm
Weight: 540 kg
Method of strapping: vertical
Number of strappings: 3
Art der Umreifung HP: Vertikal
Type of consumables: Strapping tape
Industry type: Logistics & Distribution, Retail, Industry & Manufacturing, Print & Packaging
Press material: Plastic film, Mixed paper, Cardboard, Punch waste/residue
Use for product line: V-Press
