HSM V-Press 860 P vertical baling press The vertical baling press HSM V-Press 860 P is... more

HSM V-Press 860 P vertical baling press

The vertical baling press HSM V-Press 860 P is specially designed for the compression of opened or perforated PET/UBC bottles.

Robust mechanical bale ejector chain
V-Press - Kettenauswerfer
Rapid stroke technolgy saves time and money
V-Press - Eilgang

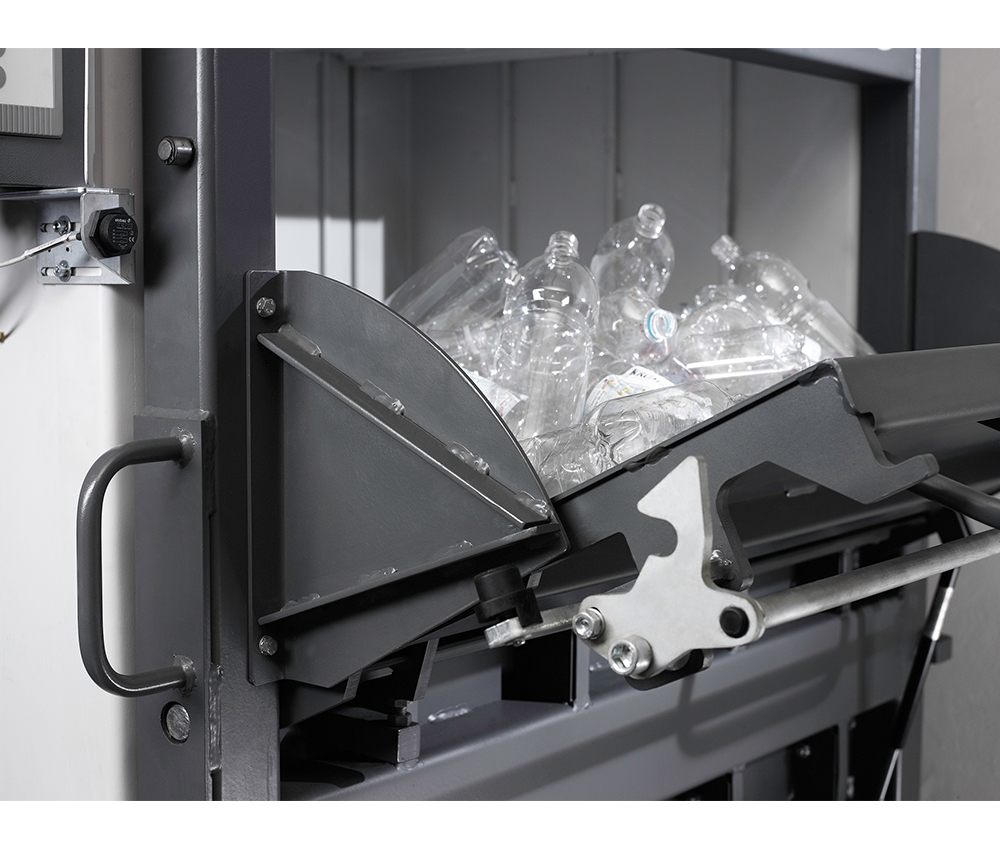

To fill the press, the upper half of the doors is folded down
V-Press 860 P - Füllklappe
Reinforced press chamber and hydraulic door lock - Convenient opening and closing, no manual effort required
V-Press 860P/S -Verstärkter Presskasten

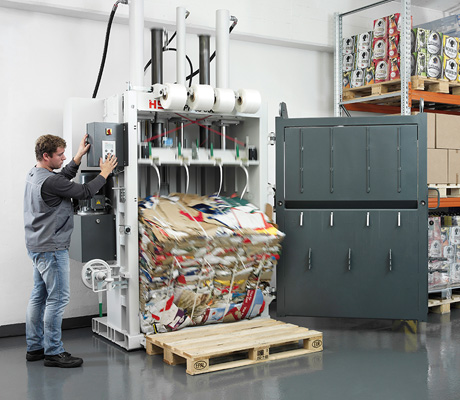

Double quantity of retaining claws optimize the compression of the pressing material and reduce the number of loading actions
V-Press - Rückhaltekrallen doppelt
Automatic start of the pressing process after closing the door
V-Press - Automatikstart
Convenient membrane keypad with text display, which shows the current status of the machine
V-Press  - Display
Strapping with wire - optional tape station available for strapping with polyester tape or wire according to requirements
V-Press - Umreifung Draht PET
Technical data "HSM V-Press 860 P"
Order number: 6148754
EAN: 4026631056601
Pressing power: 434 kN
Specific pressing power: 46,37 N/cm²
Driving power: 4 kW
Voltage / Frequency: 400 V / 50 Hz
Cycle time when idling vacío: 25 s
Volume throughput in idle operation (theor.): 12 m³/h
Loading height: 1115 mm
Loading aperture width x height: 1195 x 650 mm
Bale length x Bale width x Bale height: 1200 x 780 x 1200 mm
Bale weight (up to): 230 kg
Width x Depth x Height: 1870 x 1294 x 2985 mm
Weight: 2290 kg
Method of strapping: vertical
Number of strappings: 4
Type of consumables: Wire
Industry type: Recycling & Disposal, Retail, Logistics & Distribution, Food & beverage industry, Industry & Manufacturing, Print & Packaging
Press material: PET bottles, aluminium beverage cans, soft packaging, Punch waste/residue, PET Getränke und Aluminiumdosen,Weichverpackung, Polystyrene, HDPE / LDPE hollow containers & plastic bottles, Big Bags, Clothing, Cardboard, Plastic film, Mixed paper
Use for product line: V-Press
