HSM VK 1210

HSM VK 1210

HSM VK 1210

Channel baling press HSM VK 2310 For industrial applications with small material loads -... more

Channel baling press HSM VK 2310

For industrial applications with small material loads - Troughput up to approx. 117 m³/h

System compatible with HSM fully automatic baling systems.
DS/TS Kombinationsempfehlung VK
Particularly suitable for cardboard, plastic film and PET bottles
VK - Kartonage, Folie, PET
Compresses paper, cardboard, plastic film and PET bottles
VK - Papier, Kartonage, Folie, PET
Integration into automated industrial production processes
VK - Integration Fertigung

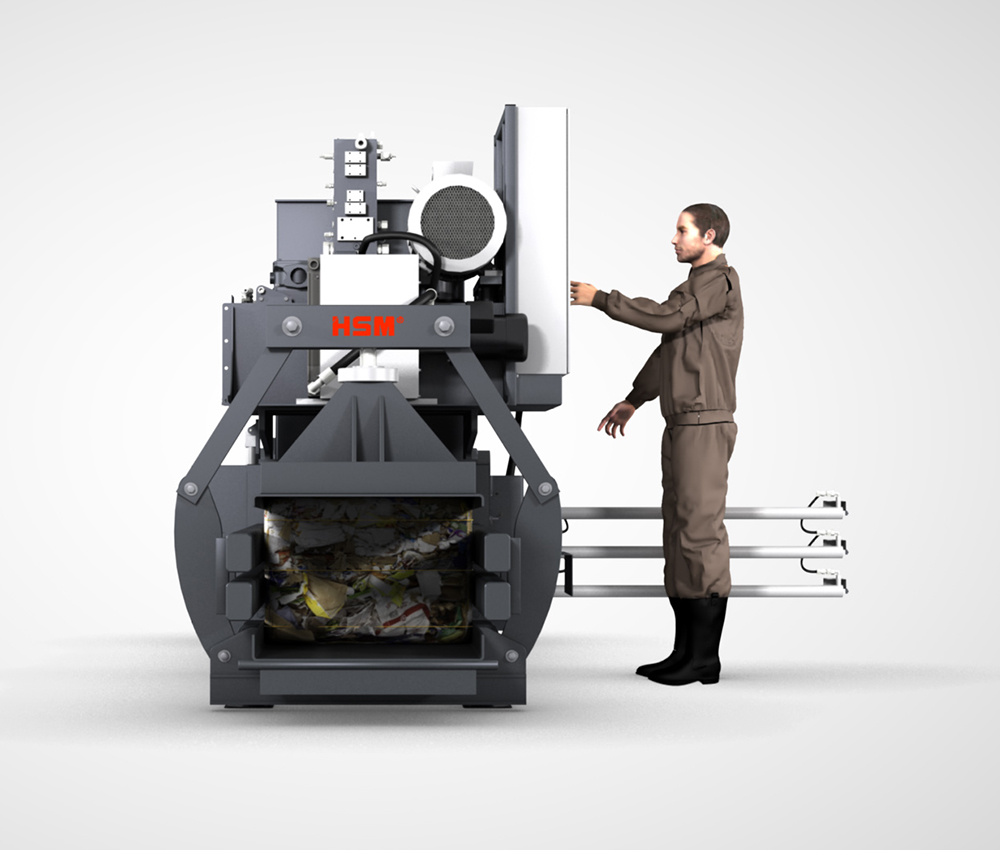

Operating side can be selected
VK 2310 - Bedienseite
Optimal for connecting to air feeding systems (fast cycle times)
VK 1210 - Luftbeschickung
Für kontinuierliche Beschickung mit Förderband, Luftbeschickung o. ä. geeignet
Loading aperture of 1000 mm suitable for larger material pieces and higher throughput rates
VK 1210 - Einfüllöffnung 1000 mm

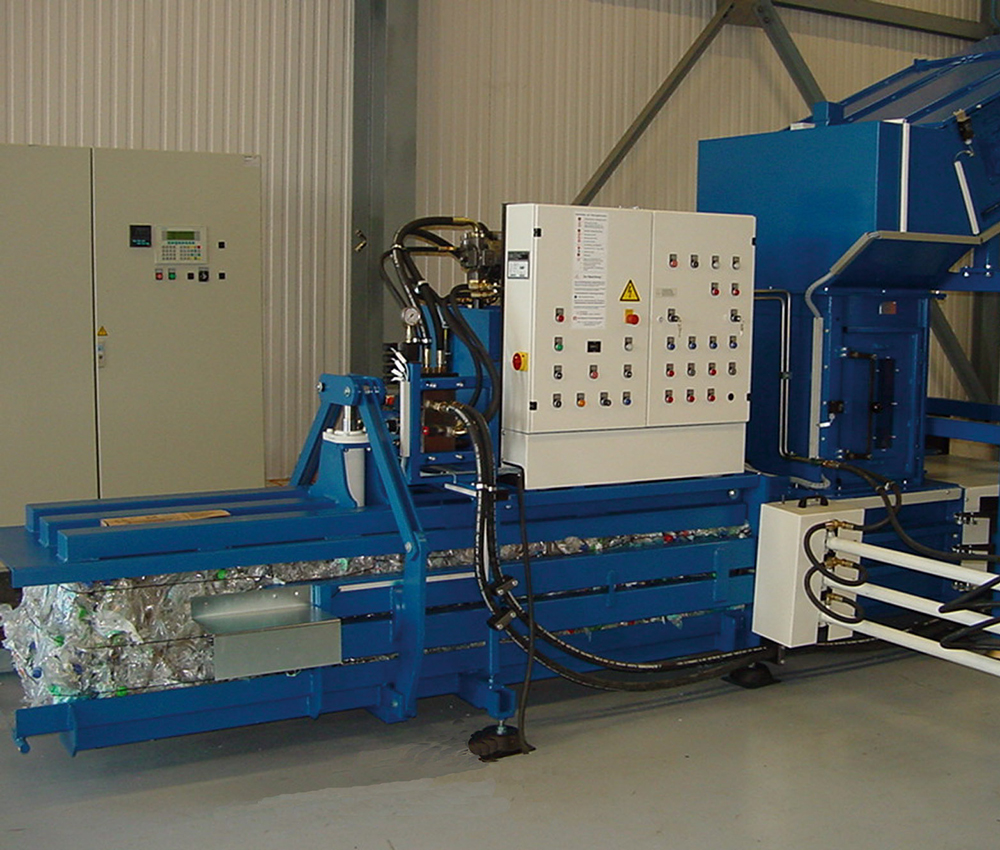

Compact bale dimensions
VK 1206 - Kompakte Ballenabmessungen
Technical data "HSM VK 1210"
Order number: 6617001
Pressing power: 159 kN
Specific pressing power: 42,4 N/cm²
Driving power: 9,2 kW
Voltage / Frequency: 400 V / 50 Hz
Cycle time when idling vacío: 11,5 s
Volume throughput in idle operation (theor.): 117 m³/h
Volume throughput at 50kg/m³ (theor.): 5.85 t/h
Loading aperture width x Loading aperture length: 670 x 1000 mm
Bale width x Bale height x Bale length: 750 x 500 x 600-1200 mm
Bale weight: 100-200 kg
Length x Width x Height: 5940 x 2700 x 1940 mm
Weight: 3,8 t
Method of strapping: horizontal
Number of strappings: 3
Type of consumables: Wire
Industry type: Logistics & Distribution, Food & beverage industry, Industry & Manufacturing, Print & Packaging, Retail
Press material: PET beverage and aluminium cans, soft packaging, Mixed paper, Punch waste/residue, Cardboard, Plastic film
