HSM AK 807

HSM AK 807

Channel baling press HSM AK 807 For industrial applications with small material loads -... more

Channel baling press HSM AK 807

For industrial applications with small material loads - Troughput up to approx. 36 m³/h

Mainly compresses cardboard and light paper
AK/VK 807 - Kartonage, Papier

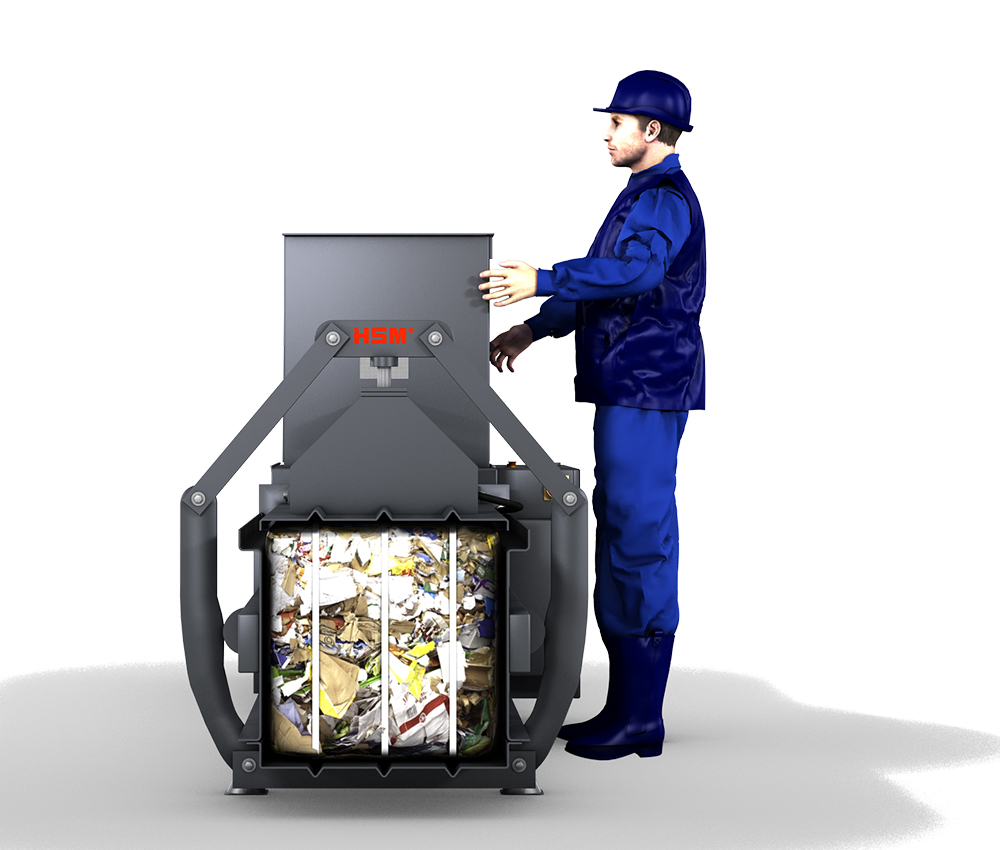

Operating side can be selected
AK/VK 807 - Bedienseite
Suitable for continuous loading with conveyor belt, air feeding or similar
AK/VK 807 - kontinuierliche Beschickung
Compact bale dimensions
AK/VK 807 - Kompakte Ballenabmessungen
Manual strapping
AK - manuelle Umreifung

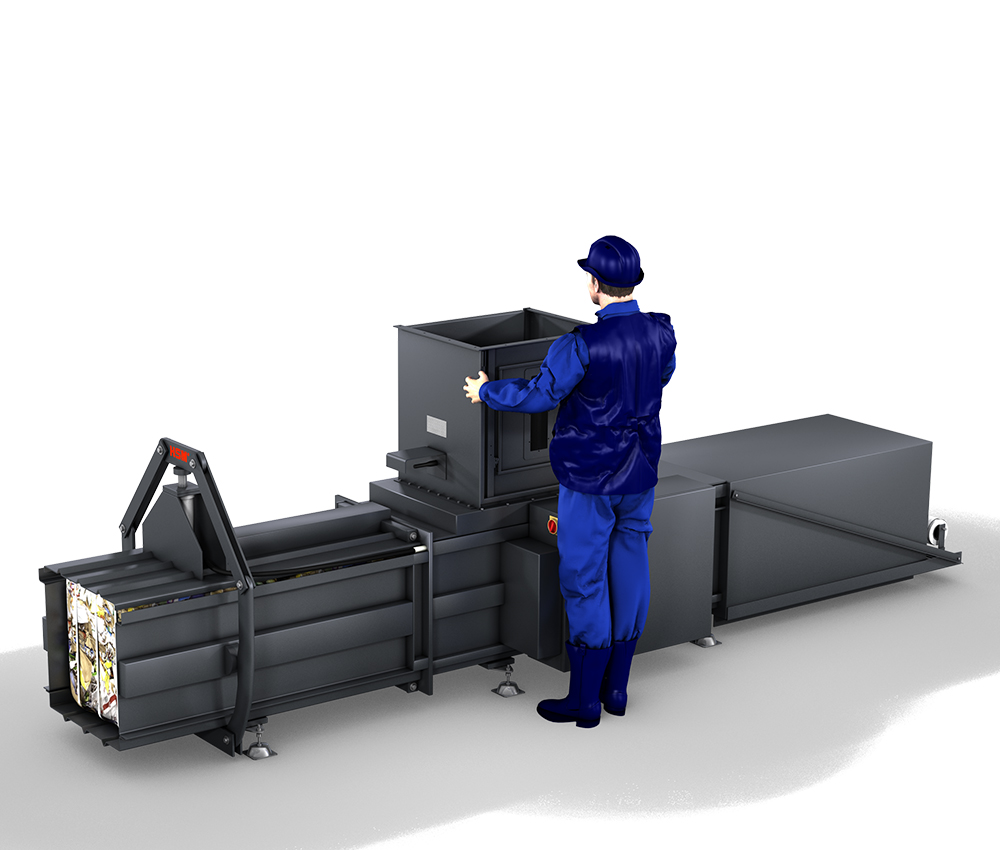

Low space requirement
AK/VK 807 - Geringer Platzbedarf
Technical data "HSM AK 807"
Order number: 6424000
Pressing power: 82 kN
Specific pressing power: 32,8 N/cm²
Driving power: 4 kW
Voltage / Frequency: 400 V / 50 Hz
Cycle time when idling vacío: 17,6 s
Volume throughput in idle operation (theor.): 36 m³/h
Volume throughput at 50kg/m³ (theor.): 1.8 t/h
Loading aperture width x Loading aperture length: 450 x 710 mm
Bale width x Bale height x Bale length: 500 x 500 x 400-800 mm
Bale weight: 30-60 kg
Length x Width x Height: 3940 x 1140 x 1310 mm
Weight: 1 t
Method of strapping: vertical
Number of strappings: 3
Type of consumables: Strapping tape
Industry type: Logistics & Distribution, Food & beverage industry, Industry & Manufacturing, Print & Packaging, Retail
Press material: Mixed paper, Cardboard, Plastic film
Use for product line: VK
