Channel baling press HSM VK 807 V For industrial applications with small material loads -... more

Channel baling press HSM VK 807 V

For industrial applications with small material loads - Troughput up to approx. 28 m³/h

Particularly suitable for cardboard, films and bleeds of paper
VK 807 V - Kartonage, Folie, Randabschnitte
Integration into automated industrial production processes
VK- Integration Fertigung
Control of the pressing process via light barrier
VK - Lichtschranke

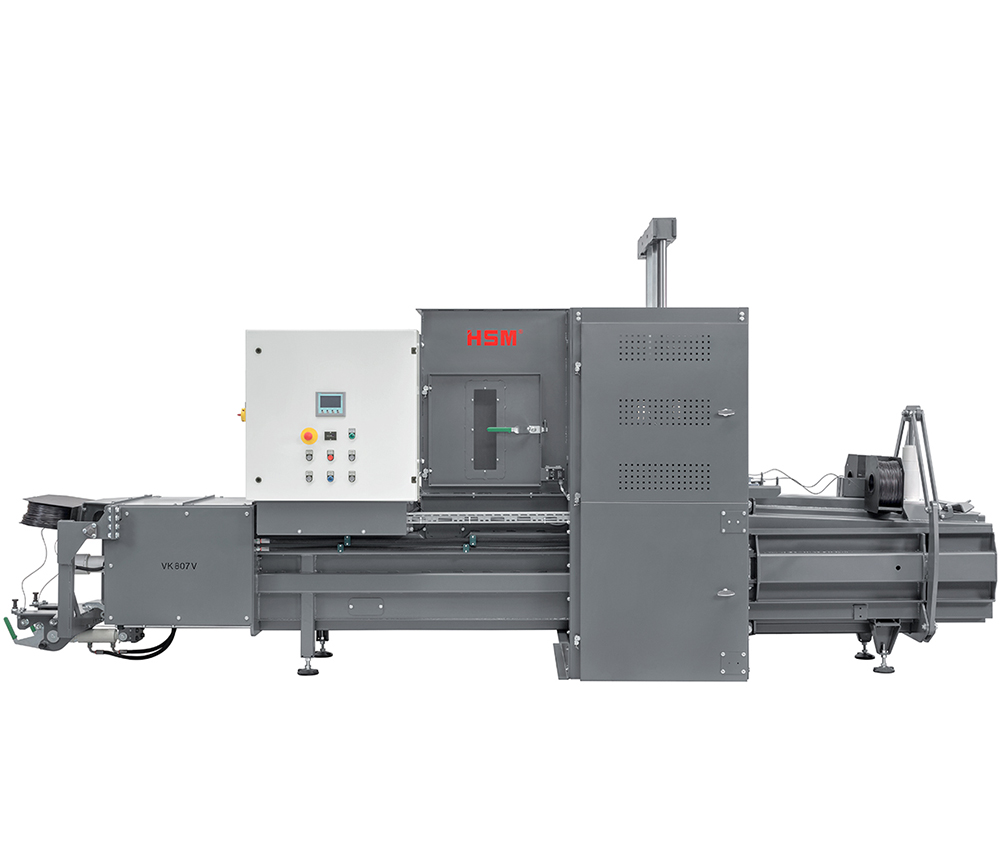

Operating side can be selected
VK 807 V - Bedienseite
Available as an option with manual strapping
VK - Option manuelle Umreifung
Suitable for continuous loading with conveyor belt, air feeding or similar
AK/VK 807 - kontinuierliche Beschickung
Compact bale dimensions
AK/VK 807 - Kompakte Ballenabmessungen
Fully automatic vertical strapping with wire
VK 807 V - Vertikale Umreifung

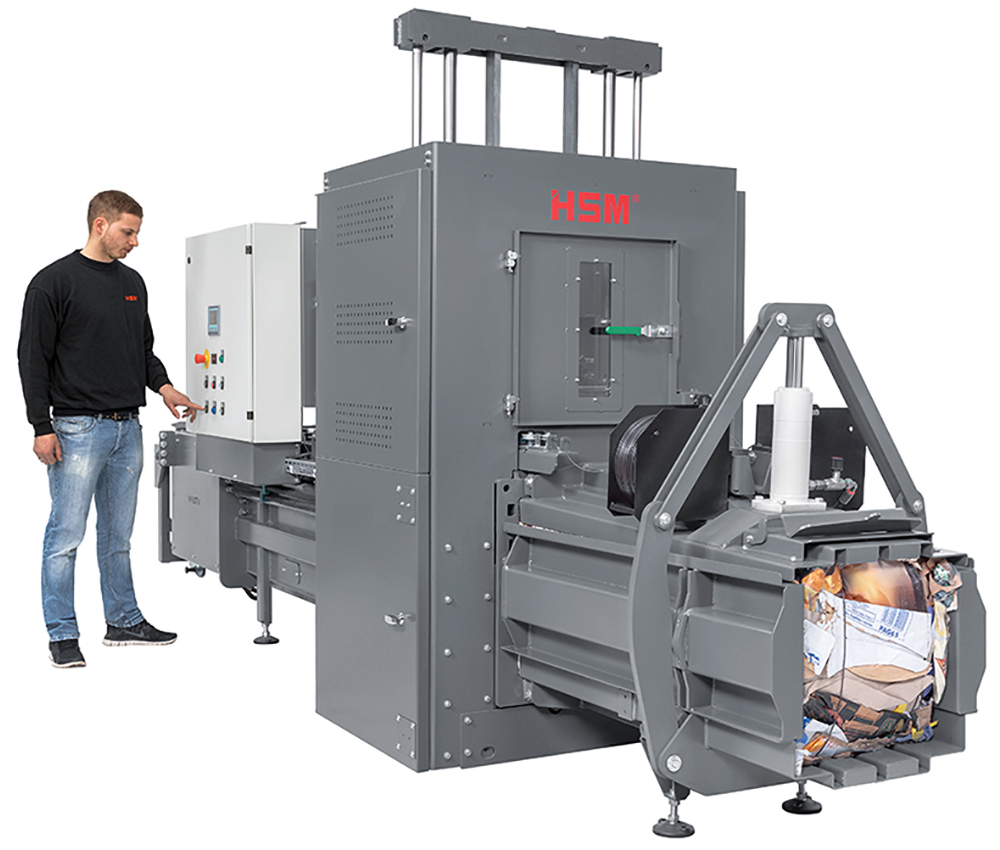

Very low space requirement thanks to compact and sturdy design
VK 807 V - kompakte Bauweise
Technical data "HSM VK 807V"
Order number: 6616000
Pressing power: 82 kN
Specific pressing power: 32,8 N/cm²
Driving power: 4 kW
Voltage / Frequency: 400 V / 50 Hz
Cycle time when idling: 23,2 s
Volume throughput in idle operation (theor.): 28 m³/h
Volume throughput at 50kg/m³ (theor.): 1.4 t/h
Loading aperture width x Loading aperture length: 450 x 710 mm
Bale width x Bale height x Bale length: 500 x 500 x 400-800 mm
Bale weight: 30-60 kg
Length x Width x Height: 4813 x 1188 x 2281 mm
Weight: 2,35 t
Method of strapping: vertical
Number of strappings: 2
Type of consumables: Wire
Industry type: Logistics & Distribution, Industry & Manufacturing, Print & Packaging, Retail
Press material: Mixed paper, Cardboard, Plastic film
Use for product line: VK
