Channel baling press HSM VK 15020 For professional disposal management or larger industrial... more

Channel baling press HSM VK 15020

For professional disposal management or larger industrial applications with high throughput rates - Throughput up to approx. 873 m³/h

Suitable for cardboard, plastic film and compressing DSD goods, UBC as well as PET bottles (other materials on request)
VK - Kartonage, Folie, Papier, PET, DSD uvm.
Available as an option with frequency-regulated drive – saves 40 % of the energy used by standard drives
VK - FU
Solid steel construction with highly wear resistant steel parts inside the press chamber and press channel
VK - verschleissfester Stahl Presskasten

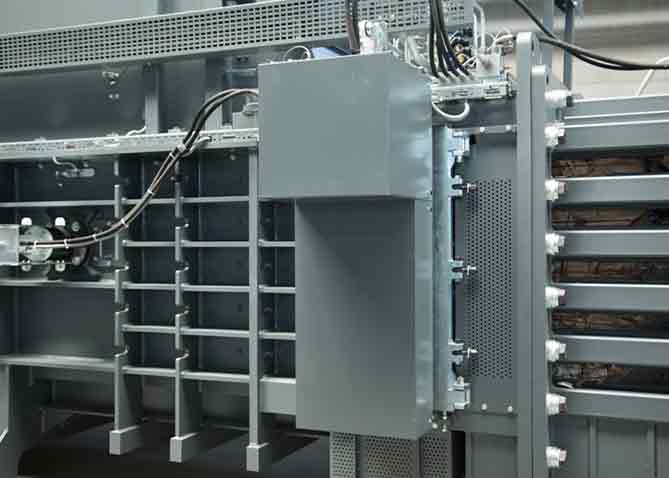

Solid steel construction with extremely wear-resistant, replaceable steel
VK - verschleissfester Stahl Verdrillfinger
Gimballed press cylinder system - Reduced wear on the pressing cylinder and press ram guides
VK - kardanische Aufhängung
Solid press carriage guidance with easy maintenance access
VK - Presswagenführung
Determining the bale length exactly, even in the case of frequently exchanged material
VK - Ballenmeßsystem
Key-operated inspection door safety lock system (Castle-lock) for highest level of operator safety
VK - Sicherheit
Programmable Siemens logic controller with touch panel
VK - Speicherprogrammierbare Steuerung
Optimally adjusted software for different materials guarantees high bale quality even when material is frequently changed
VK - Software / Materialwechsel
Suitable for continuous loading with conveyor belt, air feeding or similar
VK groß - kontinuierliche Beschickung
Fully automatic 5-fold strapping for optimal bale result also with expansive materials
VK - 5fach Umreifung
Technical data "HSM VK 15020"
Order number: 6438004
Pressing power: 1500 kN
Specific pressing power: 124 N/cm²
Driving power: 75+75 kW frequency-controlled
Voltage / Frequency: 400 V / 50 Hz
Cycle time when idling: 10 s
Volume throughput in idle operation (theor.): 873 m³/h
Volume throughput at 50kg/m³ (theor.): 43.65 t/h
Loading aperture width x Loading aperture length: 970 x 2000 mm
Bale width x Bale height x Bale length: 1100 x 1100 x 600-2000 mm
Bale weight: 800-1250 kg
Length x Width x Height: 13115 x 4159 x 3622 mm
Weight: 45 t
Method of strapping: horizontal
Number of strappings: 5
Type of consumables: Wire
Industry type: Retail, Recycling & Disposal, Logistics & Distribution, Industry & Manufacturing, Print & Packaging
Press material: Punch waste/residue, Big Bags, Plastic film, Mixed paper, Cardboard, HDPE / LDPE hollow containers & plastic bottles
Use for product line: VK
