Heavy Duty Document Shredders

HSM TriShredder 6060 - 4.6 x 34 mm

  • TriShredder_Produktbild_1.png
  • TriShredder_Produktbild_1.png
Heavy Duty Document Shredders

HSM TriShredder 6060 - 4.6 x 34 mm

Icon Ordner
Icon Heft- und Bueroklammer
Icon EC-Karte
Icon Papier
Weight
650 mm
Datasheet
Request product

Scroll to the desired section:

Technical data
Please select
blocks.contact_search.dropdown_alt

Product highlights

HSM TriShredder 6060 3-stage shredding unit with three cutting units and a throughput of up to 2500 kg/h at security level P-3. In combination with a baling press, you can expand the HSM TriShredder 6060 into a complete disposal system.

  • DS/TS Aktenordner
    Reliably shreds whole lever arch files and telephone books.

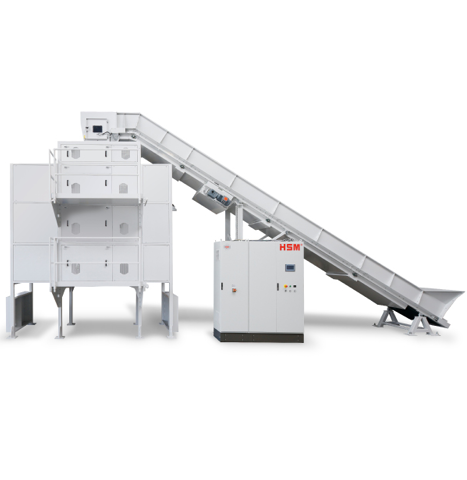

  • The material can be loaded with a conveyor belt or discharge chute.
  • The entire system is controlled automatically.
  • Modern PLC control unit for integrated control of all system components.
  • Sturdy loading hopper with built-in overloading protection to control the shredder and the conveyor belt.
  • Equipped as standard with energy saving frequency-regulated drive.

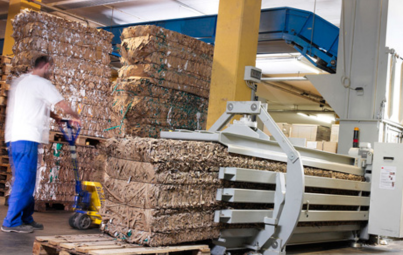

  • DS/TS Kombinationsempfehlung VK
    System compatible with HSM fully automatic baling systems.

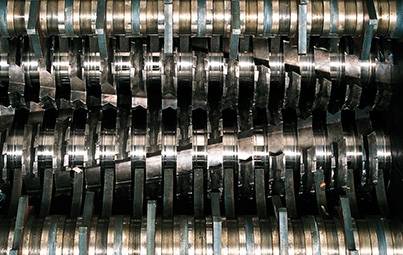

  • Stages 2 and 3: fine shredding using a two-shaft system.
  • Optionally available with material collection trolley for solo operation, volume approx. 320 litres.
  • Three-stage fully automated shredding system.
  • Can be used as a complete disposal system in combination with an HSM balling press.
  • Stage 1: pre-shredding using a four-shaft system consisting of two intake shafts and two cutting shafts.

Products in comparison

Product attributes
HSM TriShredder 6060 - 7.5 x 40-80 mm
HSM TriShredder 6060 - 4.6 x 34 mm
Order number: 1560000 1560001
Cutting type: particle cut particle cut
Cutting size: - -
Security level (DIN 66399 / ISO/IEC 21964): E-2|O-2|P-3|T-3 E-3|F-1|O-3|P-4|T-4
Intake width: 650 mm 650 mm
